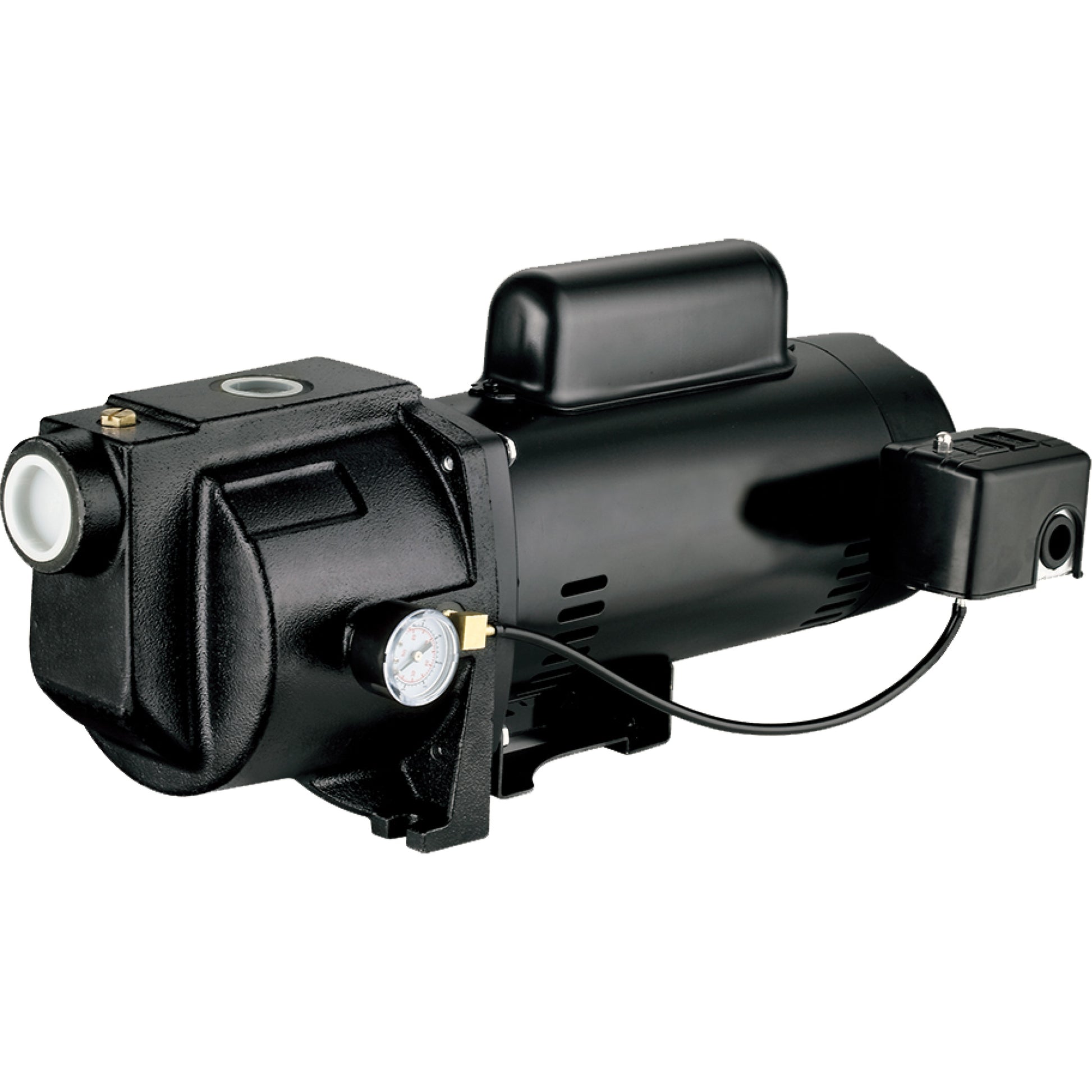

Dual Voltage Cast Iron Shallow Well Jet Pump, 115 V/230 V, 1260 GPH, 1 HP

• Durable cast iron pump body
• Built-in automatic thermal overload protection
• Pressure switch pre-set at 30-50 PSI
• For use with shallow well within 25'
• Dual voltage motor (115/230V), factory wired for 115V
• Inlet Diameter

Specifications:
Motor: 1 HP
Max. Flow Rate: 1260 GPH
Voltage: 115 V/230 V
Suction Head: 164'
Manufacturer's Warranty: 3 years
Discharge Diameter: 1" NPT
Inlet Diameter: 1-1/4"
Seal Design: Mechanical Seal
Seal Material: Graphite & Ceramic
Expected Life Cycle: On 2 sec. Off 2 sec. 300,000 cycles
Motor Wires: Copper
Motor Type: NEMA
Certification: UL
