Dual Range Inclined U-Tube Manometers, Liquid Filled Column, 0 - 16.00 in. w.c

• Inclined U-Tube Manometer
• As a regular U-tube manometer it indicates high range pressure from 0 to 16 inches of water (with .2" minor divisions) on the right leg; as an inclined manometer it reads low range pressure from -.20 to 0 to 2.6 inches of water (with .02" minor divisions) on the left leg
• Easy to use; simply incline unit until fluid level reads zero
• Magnetic clips hold the gauge in position on steel duct surface

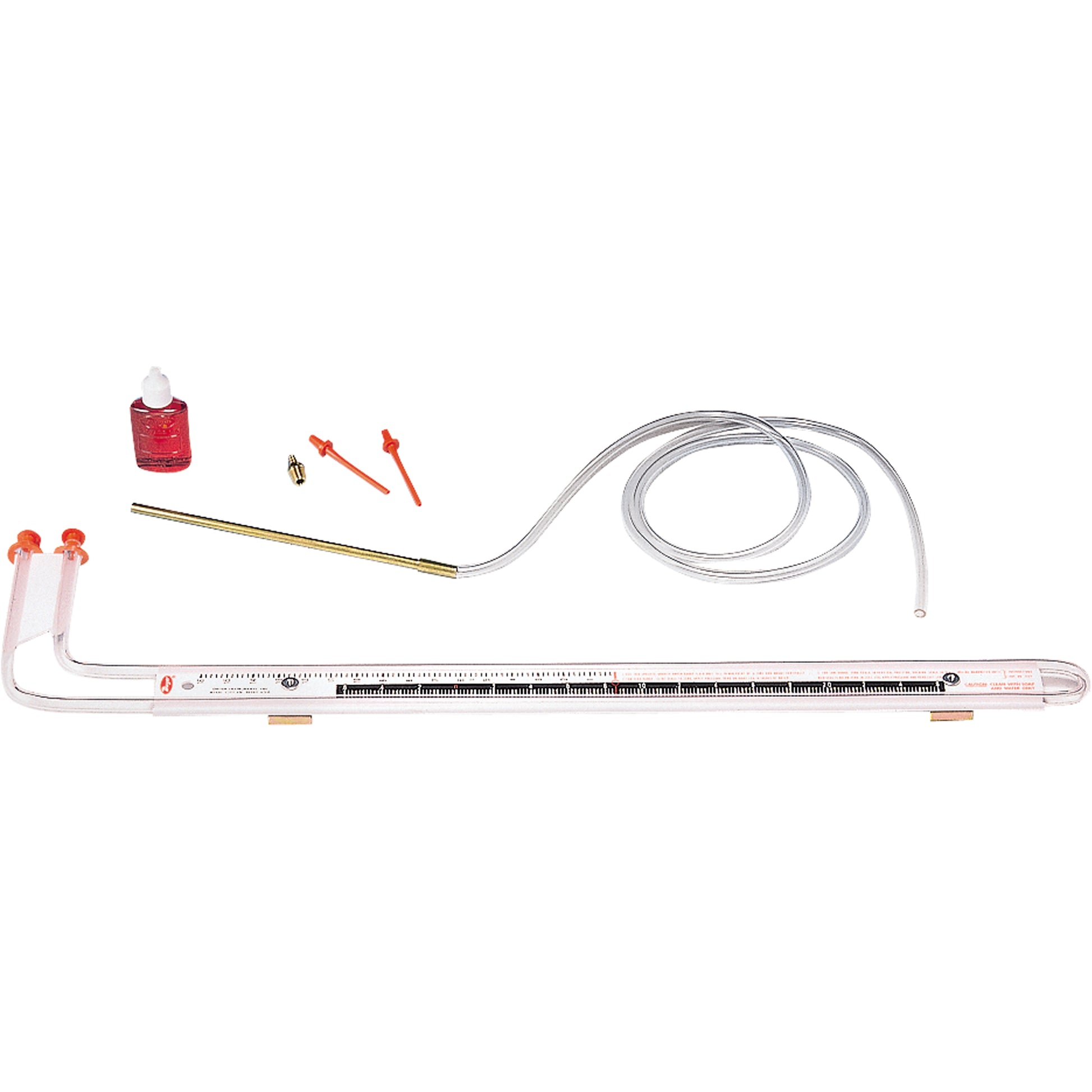

• Unit comes complete with: Two magnetic clips to hold the instrument to metal surfaces; two plastic carrying plugs with retainers for use when the manometer is not in service; flexible vinyl plastic tubing connectors; 4 1/2' length of plastic tubing; brass terminal tube, 1/4" dia. x 8" long; 1/8" NPT brass adapter; 3/4 oz. bottle red gauge fluid; and vinyl carrying case.

Specifications:
Display: Liquid Filled Column
Range: 0 - 16.00 in. w.c
Other Ranges: 0.20 - 0 - 2.6" Inclined
