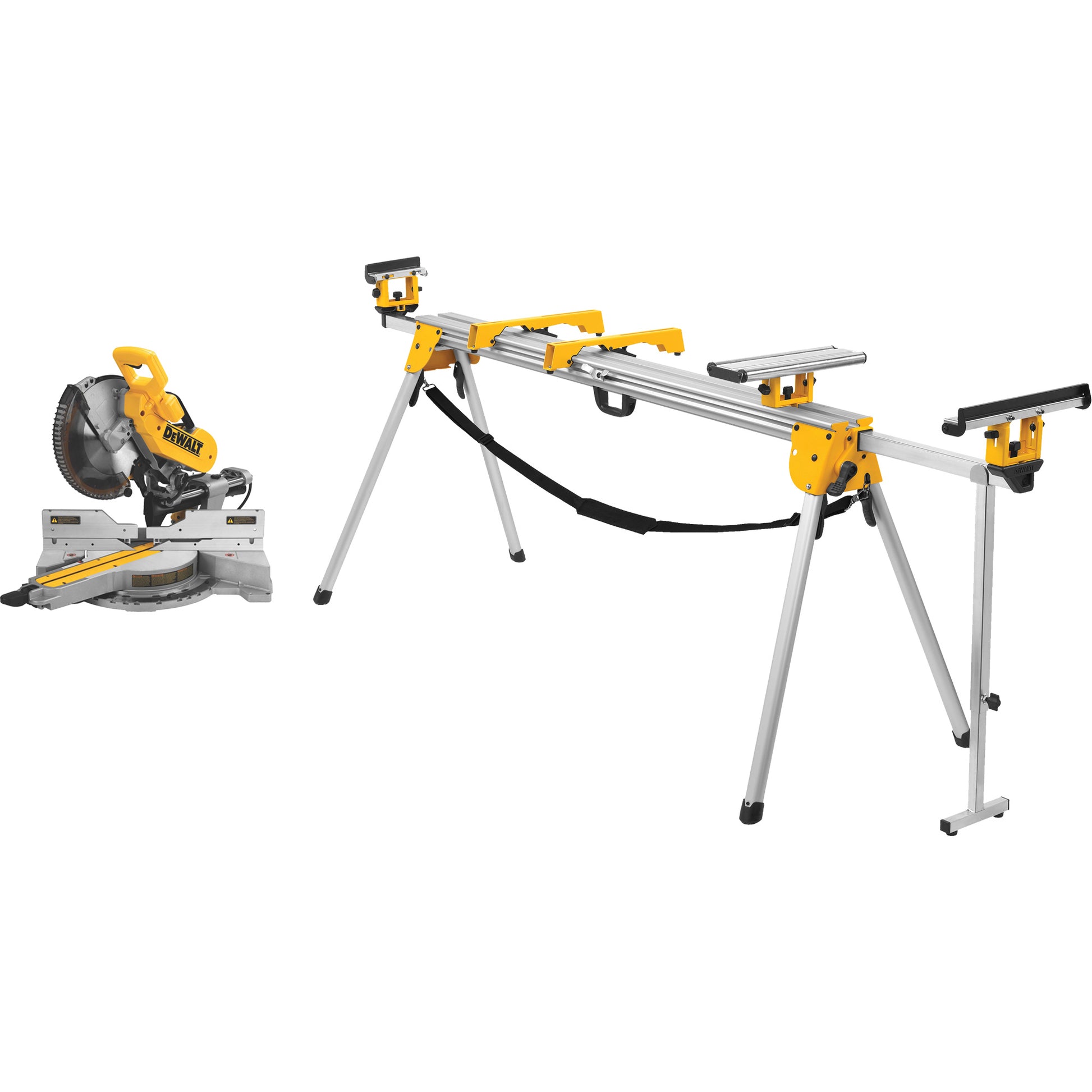

Double Bevel Sliding Compound Mitre Saw with Stand

• Integrated XPS Cross cut positioning system provides adjustment free cut line indication for better accuracy and visibility
• Powerful 15 Amp, 3,800 Rpm motor delivers extended power and durability
• Super efficient dust collection system captures over 75% of dust generated
• Tall sliding fences support crown molding up to 7-1/2" Nested and base molding up to 6-3/4" Vertically against the fence while easily sliding out of the way for bevel cuts
• Exclusive back fence design cuts up to 2 x 16 Dimensional lumber at 90° and 2 x 12 at 45
• Adjustable stainless steel mitre detent plate with 10 positive stops improves productivity and ensures cutting accuracy
• Vertical Capacity (Baseboard Against Fence)
• Oversized bevel scale makes bevel angle adjustments accurate and easy

Specifications:
Blade Diameter: 12"
No Load RPM: 3800
Amps: 15 A
Voltage: 120 V
Mitre Range: 50° left/60° Right
Arbor Diameter: 5/8"-11
Vertical Capacity (Baseboard Against Fence): 6-3/4"
Vertical Capacity (Crown Molding Vertically Nested): 7-1/2"
Horizontal Capacity (Baseboard Lying Flat): 16"
Horizontal Capacity (Crown Molding Lying Flat): 13-3/4"
45° Bevel Cut Capacity (Dimensional Lumber): 2 x 14 (2 x 16 with Back Fence)
90° Cross-Cut Capacity (Dimensional Lumber): 2 x 14 (2 x 16 with Back Fence)
45° Mitre Cut Capacity (Max. Height): 2 x 12
45° Mitre Cut Capacity (Max. Width): 2 x 12
