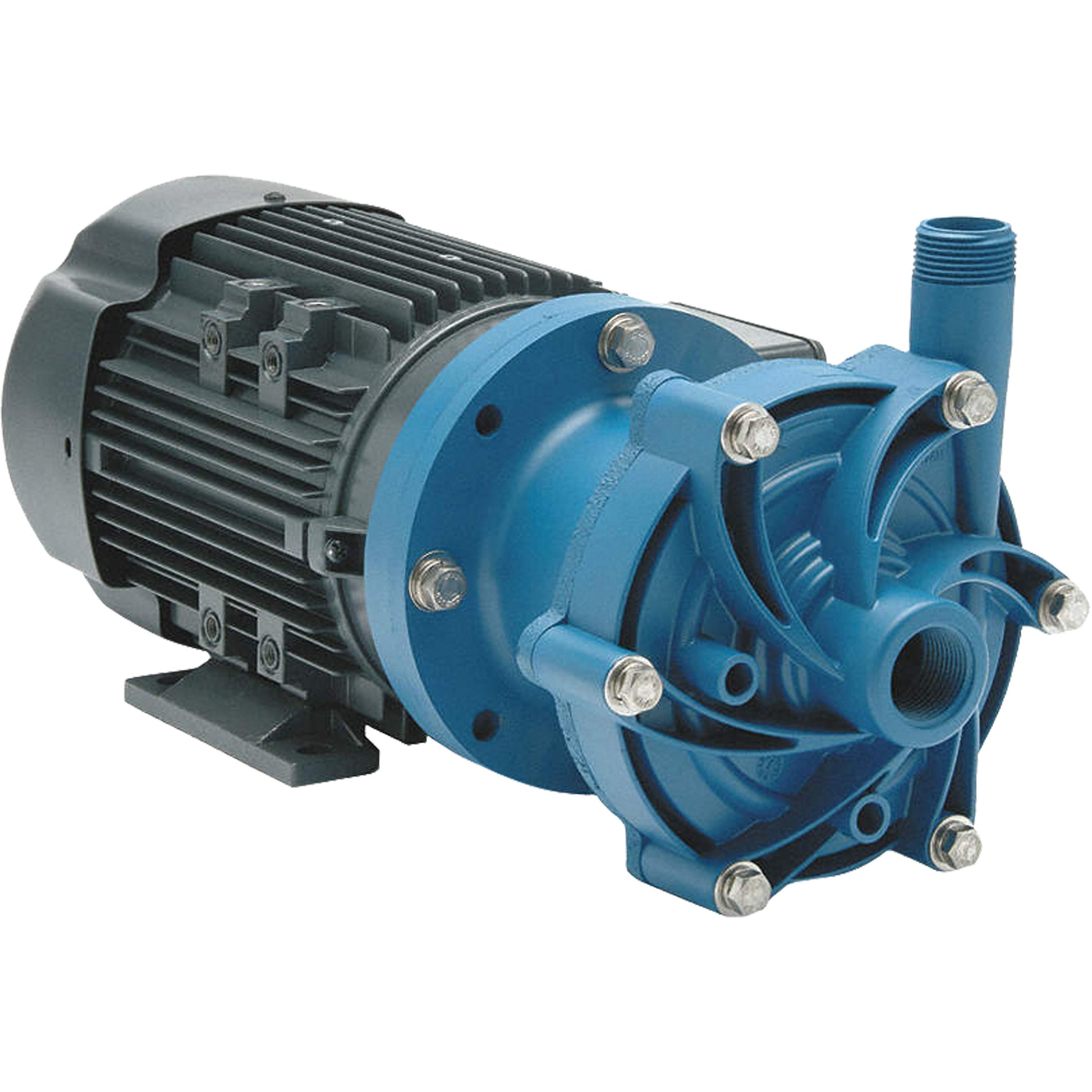

DB6H Sealless Plastic Pumps

• Applications include water and wastewater, electronics, plating, and chemical processing
• Flow Range @ 2900 RPM

Specifications:
Intake Size: 1"
Discharge Port Size: 1"
Connection Types: NPT, BSP, Flange, or Union
Maximum Specific Gravity: Over 1.8
Maximum Working Pressure: 80 PSI (5.5 Bar)
Flow Range @ 3450 RPM: 0.5 to 42 GPM
Flow Range @ 2900 RPM: 0.114 to 9.5 m³/h
Maximum Temperature: Polypropylene 180° F (82° C)& PVDF 220° F (104° C)
Configuration: Horizontal
