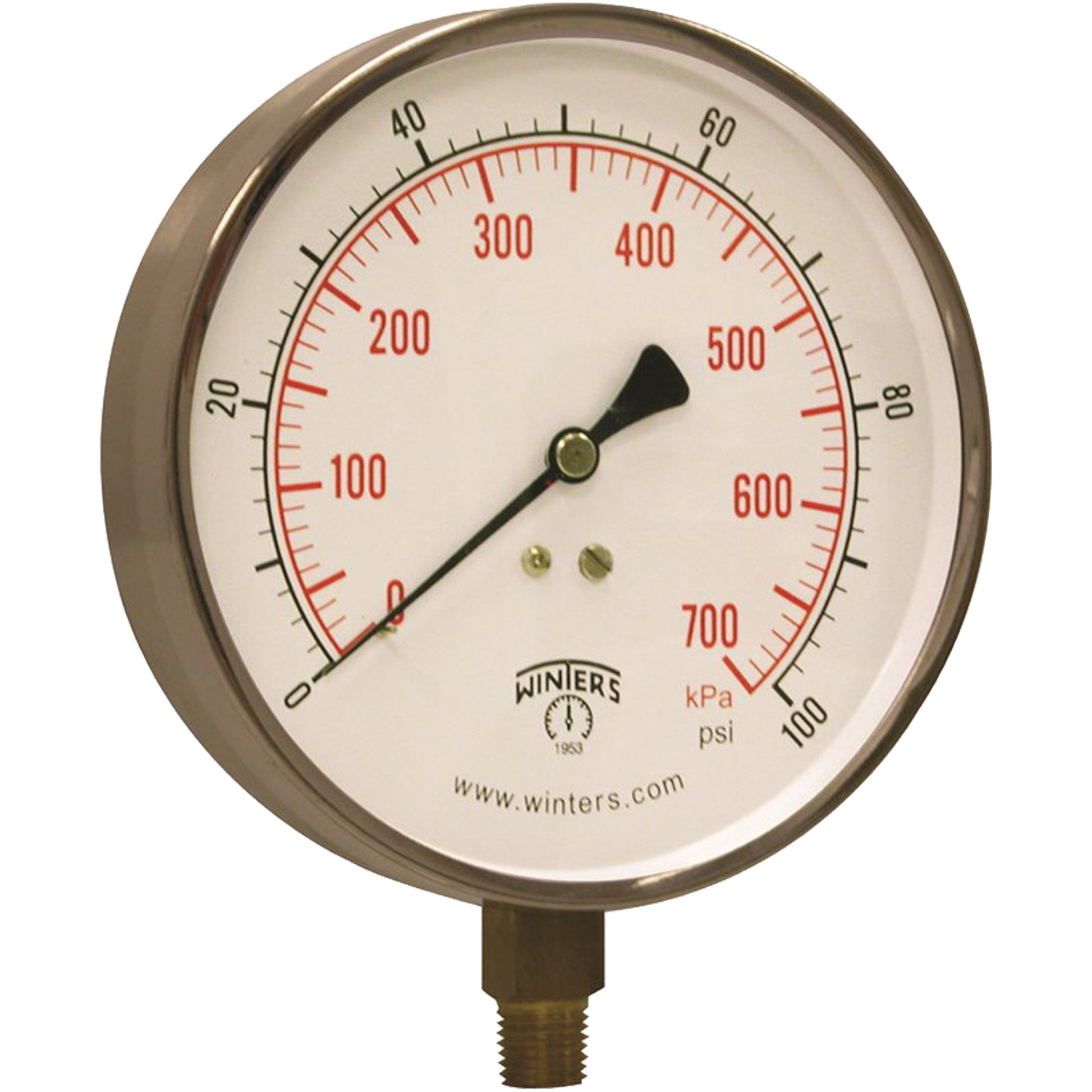

Contractor Pressure Gauge, 4-1/2" , 0 - 100 psi, Bottom Mount, Analogue
Contractor Pressure Gauge, 4-1/2" , 0 - 100 psi, Bottom Mount, Analogue is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Once your order is confirmed, an Estimated Time of Arrival (ETA) will be sent separately via email.
Contractor Pressure Gauge, 4-1/2" , 0 - 100 psi, Bottom Mount,...
Description
Description
• Economical stainless steel case gauge with brass wetted parts
• Zero adjustment screw
• Restricted orifice
• ASME B40.100 compliant and CRN registered
• Also measures in kilopascals (kPa)
• Applications include commercial air, water and steam services (with syphon), and more
• Manufacturer's Warranty
Specifications:
Dial Diameter: 4-1/2"
Pressure Range: 0 - 100 psi
Connection: Bottom Mount
Dial Type: Analogue
Connection Thread: 1/4" NPT
Accuracy: ±1% ANSI/ASME Grade 1A
Manufacturer's Warranty: 5 Years
IP Rating: IP52
Case & Ring Material: 304 Stainless Steel
Lens Material: Acrylic
Bourdon Tube Material: Phosphor Bronze
Over-Pressure Limit: 25% for Pressures up to 1450 psi (9998 kPa), 15% for Pressures Over 1450 psi (9998 kPa)
Working Pressure: Maximum 75% of Full Scale Value
