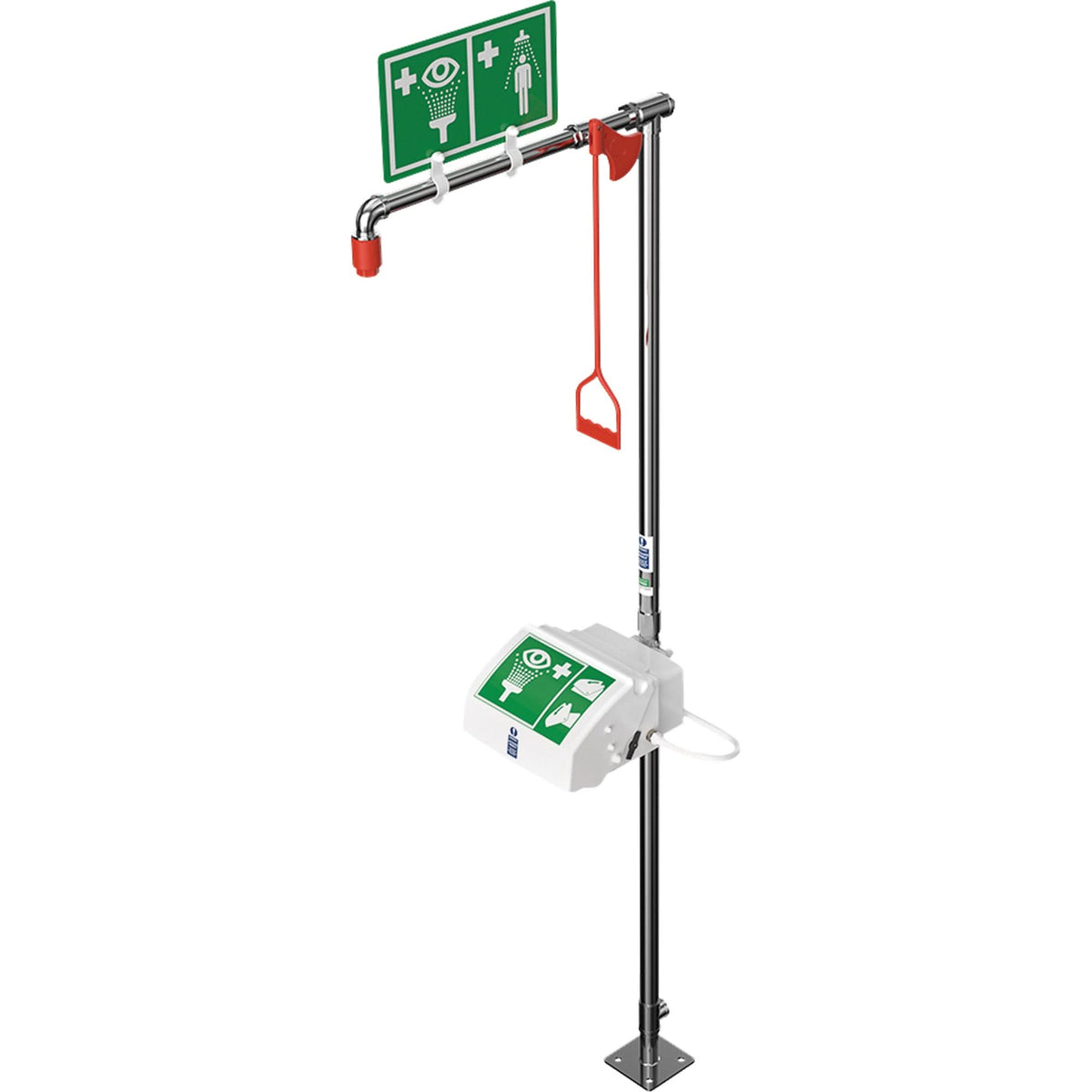

Combination Shower with Closed ABS Bowl & Bottom Inlet, Pedestal

• Covered bowl ensures that the eyewash nozzles and bowl remain clean and free from contamination at all times—no dust covers needed
• Twin aerated diffusers with fine mesh strainers and an individual flow controller provide a soft, scrubbing action to the eyes and face
• Removable, self-draining nozzle constructed from a durable nylon material
• High-performance quarter-turn ball valve made of 316L stainless steel endure the harshest environments and site conditions— low operating torque offers reliable, easy on/off operation
• Includes a universal eye wash and safety shower sign for enhanced visibility
• Meets ANSI Z358.1 2014 and EN 15154 standards, supports OSHA requirements
• Water Flow (Eye/Face)
• The system features a specially designed valve that includes an integral, heavy-duty stainless steel stop-plate to handle rough operation without failure

Specifications:
Installation Type: Pedestal
Manufacturer's Warranty: 1 Year
Inlet Location: Bottom
Water Inlet: 1-1/4" (F)
Operating Pressure: 29 - 87 PSI
Water Flow (Shower/Body): 76 Liters/min.
Water Flow (Eye/Face): 11.4 Litres/min.
