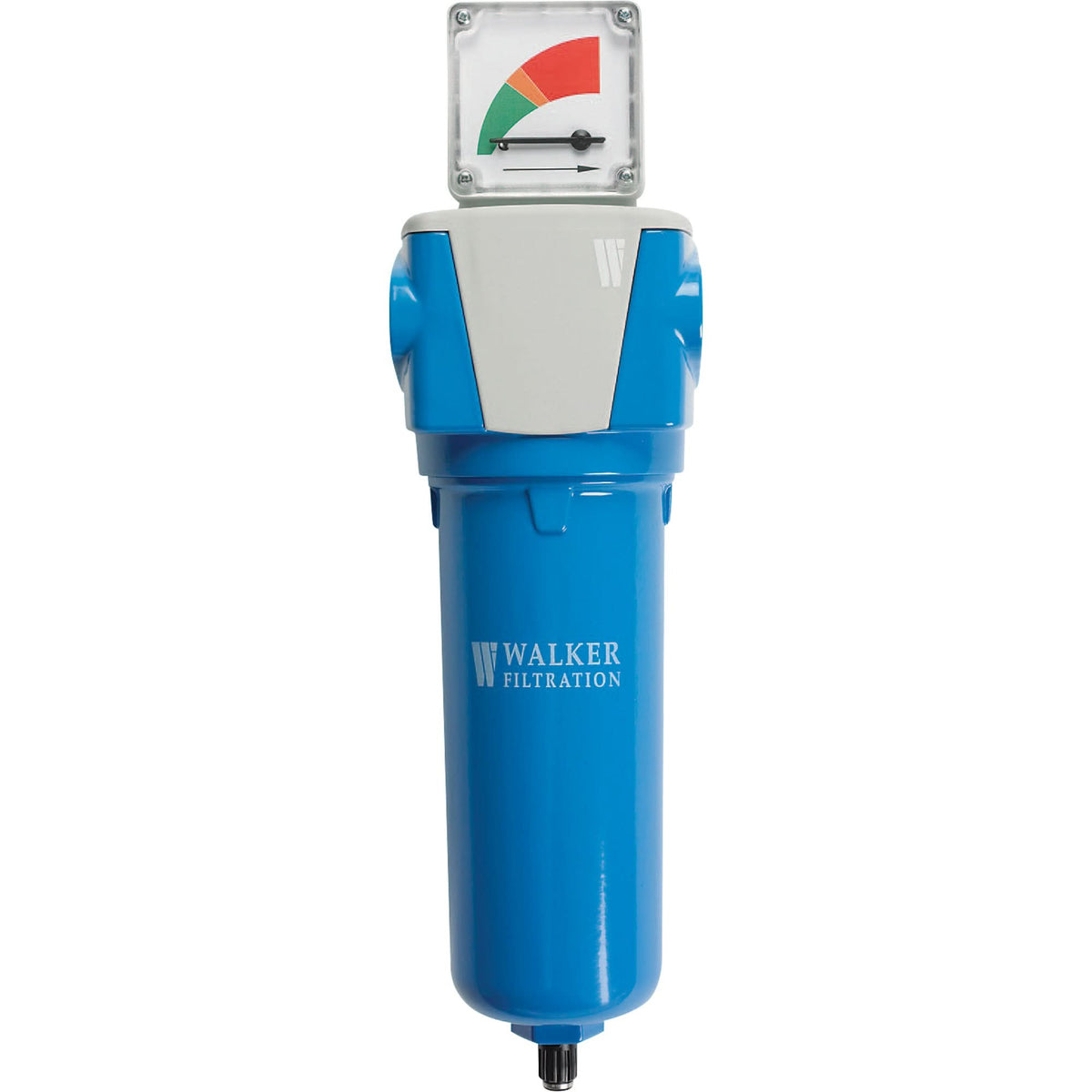

Coalescing Pre-Filter with Pop-Up Gauge, Standard, 1/4" NPT, Automatic Drain, For Dust/Particles

• Internal float drain
• Push-on filter element for reduced maintenance and down time
• Manufactured using die-cast aluminum housings
• EPC coated on inside of housing to eliminate corrosion
• All housings are powder-coated
• Thread filters and filter elements are silicone free
• SCFM
• Automatic electronic drains

Specifications:
Connection Size: 1/4" NPT
Max. PSI: 232 PSI
Drain Type: Automatic
Type: Standard
Material Filtered: Dust/Particles
Filtration Size (Microns): 1
SCFM: 20
Finish: Power Coating
Height: 8"
Width: 3"
Depth: 3"
Weight: 1.43 lbs.
