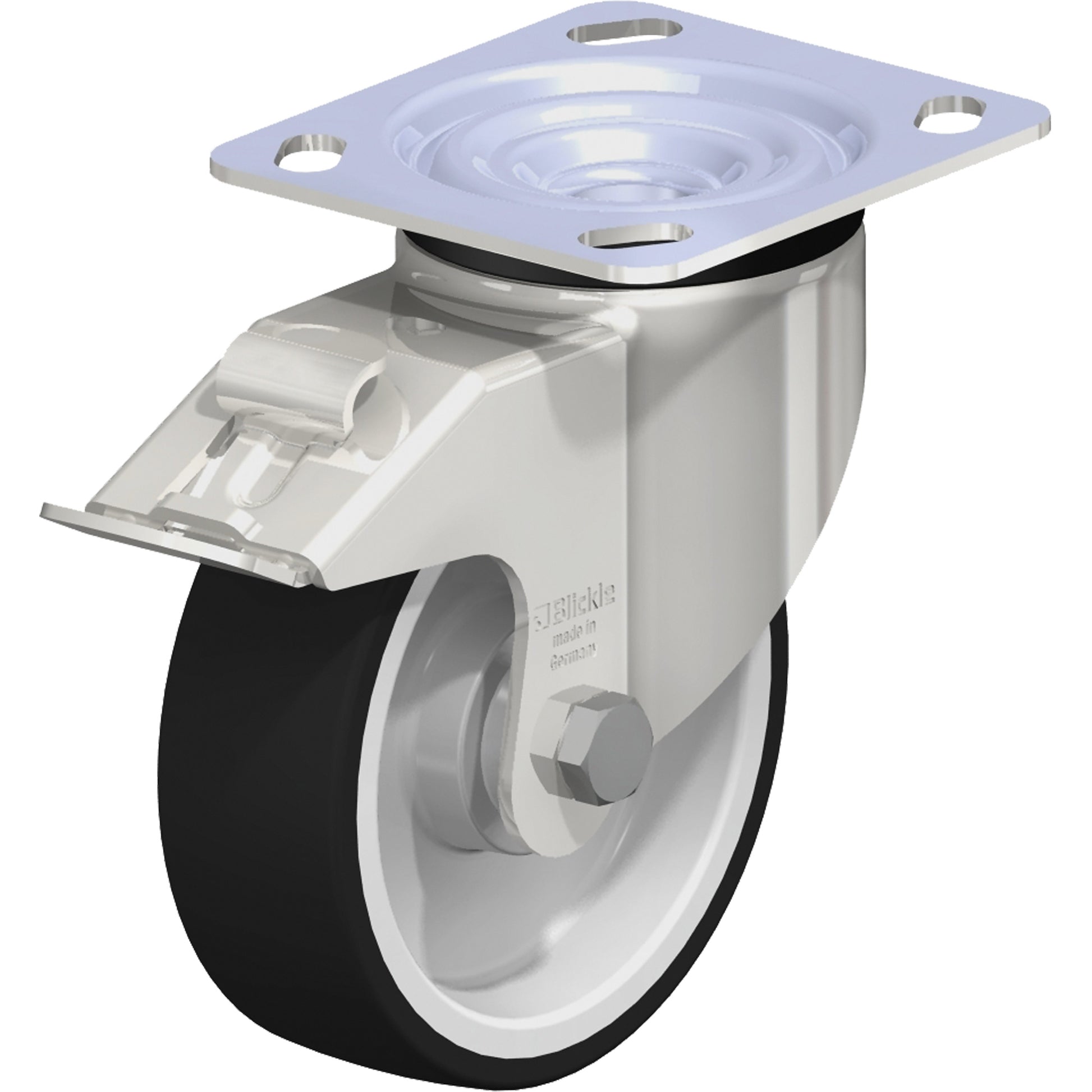

Caster, Swivel with Brake, 5" (127 mm), Thermoplastic Polyurethane, 770 lbs. (349 kg.)

• Swivel rig with double ball bearing in the swivel head
• Minimal swivel head play and smooth rolling characteristics
• Medium heavy duty rigs, with top plate fitting
• High operational comfort and low-noise operation
• Low rolling and swivel resistance for smooth running performance
• Operating temperature: -15° F to +160° F
• Bolt Hole Spacing

Specifications:
Wheel Diameter: 5" (127 mm)
Capacity: 770 lbs. (349 kg.)
Wheel Material: Thermoplastic Polyurethane
Caster Type: Swivel with Brake
Frame Material: Stainless Steel
Tread Width: 1-9/16" (40 mm)
Bolt Hole Spacing: 2-5/8" x 3-5/8" (67 mm x 92 mm) - 3" x 3" (76 mm x 76 mm)
Bolt Hole Size: 3/8" (9.52 mm)
Plate Size: 4" x 4-1/2" (102 mm x 114 mm)
Tread & Tire Hardness: 94° Shore A
Bearing Type: Ball Bearing
Total Height: 6-1/8"
