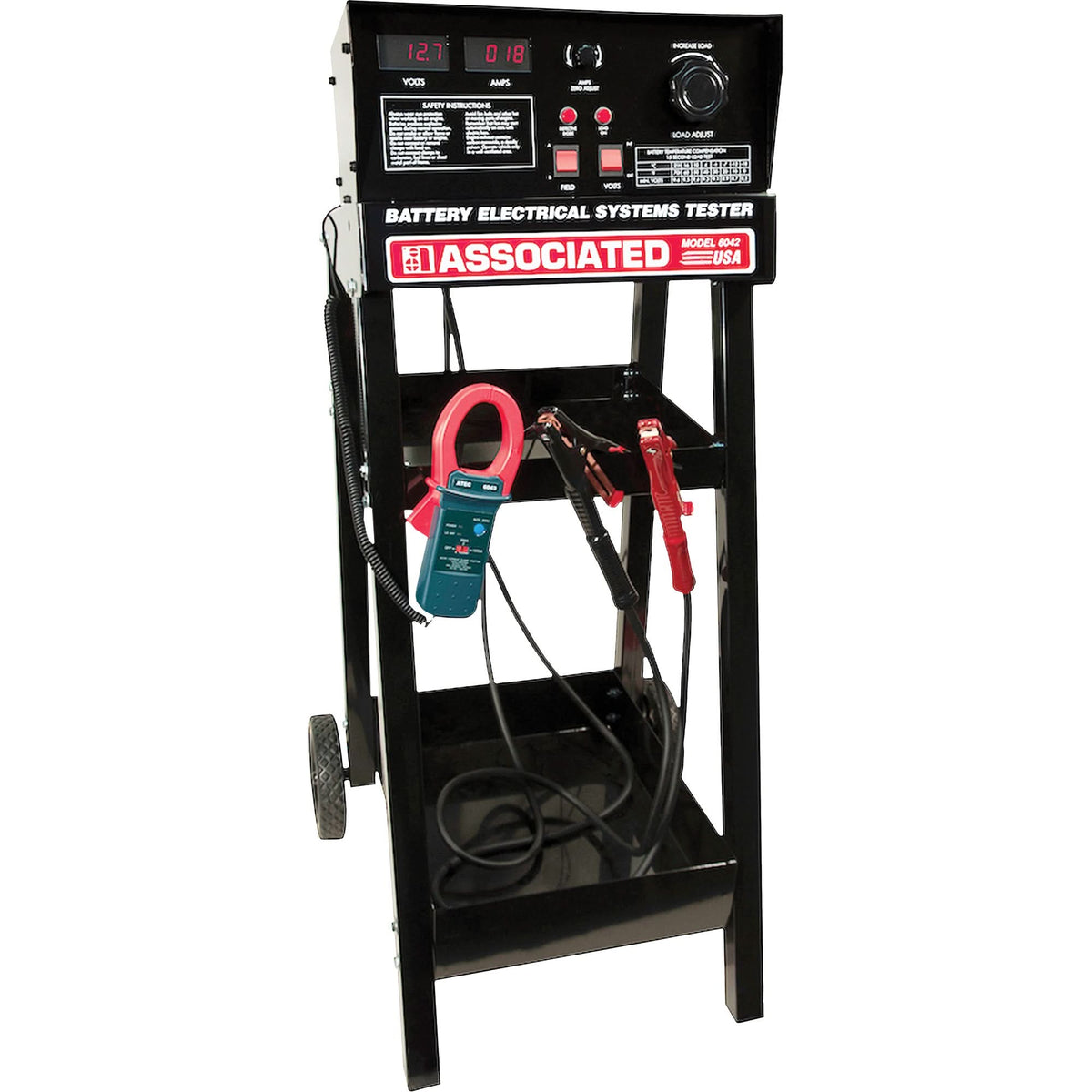

Carbon Pile Battery Load Tester & Electrical Systems Tester

• Test batteries up to 1000 CCA
• Interprets data from the charging/starting system on easy-to-read LCD displays
• Shows positive and negative amps for easy diagnosis of current leakage problems
• 0-500 Amp variable carbon pile load tester
• Unique curved carbon discs ensure maximum contact, fewer hot spots, smoother operation and longer life
• Heavy-duty single extruded leads for testing up to 15 feet apart
• Weight
• Test all battery types

Specifications:
Manufacturer's Warranty: 1 Year Limited
Amperage: 500 A
Ammeter: Digital 0-999 A
Voltmeter: Digital LCD 0-32.0 V DC
DC Leads: 8’ 4 AWG
Clamp Rating: 500 A
Weight: 67 lbs.
