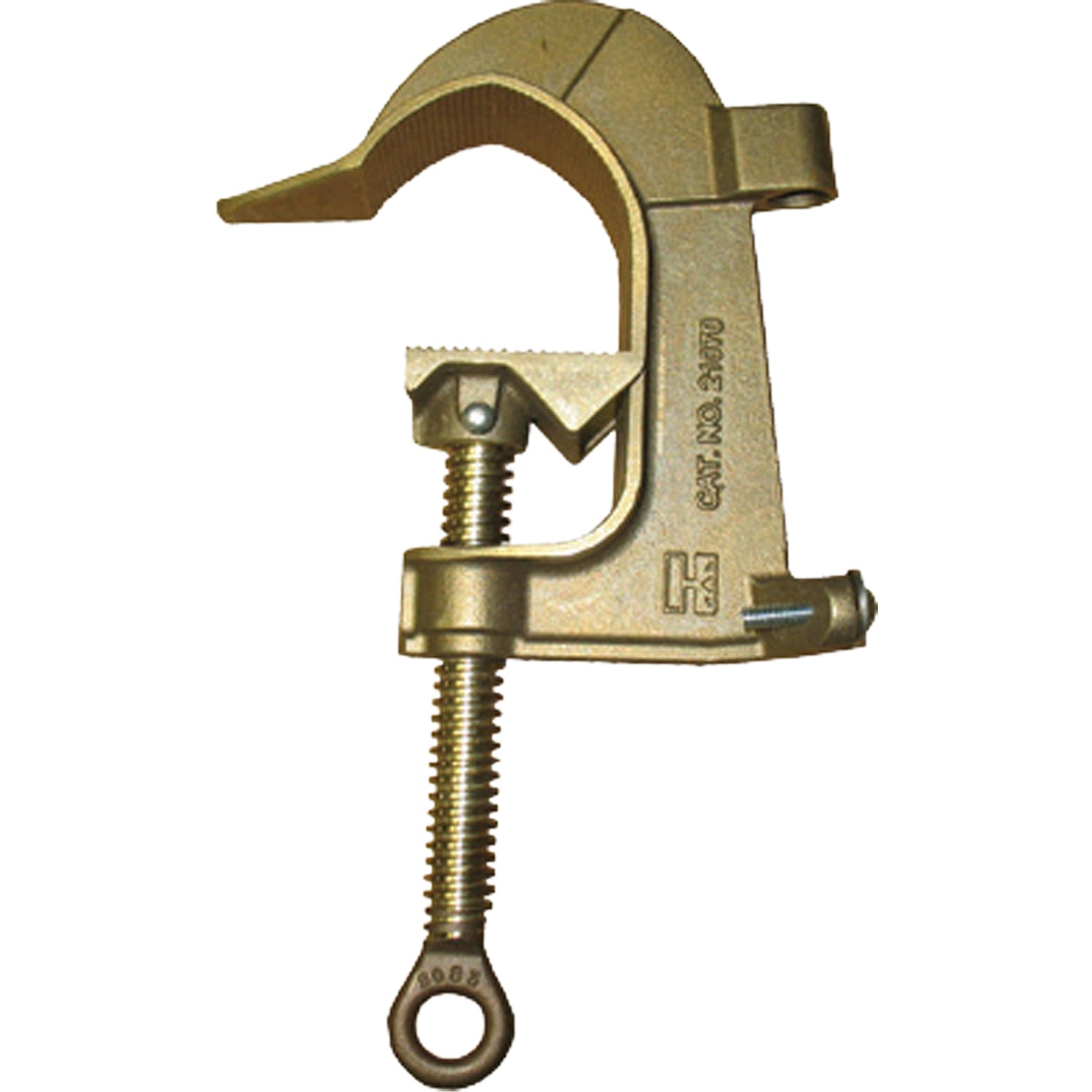

Bronze C-Head Ground Clamp, 2-7/8" (73 mm) Capacity
Description
Description
• Serrated jaw
• 5H rated
• Weight
Specifications:
Clamping Capacity: 2-7/8" (73 mm)
Main Line Range (Max.): 2.88" Outside Diameter Cable or Bus
Main Line Range (Min.): 6 Solid, 0.16" Diameter
Max. Size Cable: 4/0
Max. Fault Current Rating: 43 kA @ 15 Cycles, 30 kA @ 30 Cycles
Terminal Type: Threaded
Weight: 3.3 lbs.
