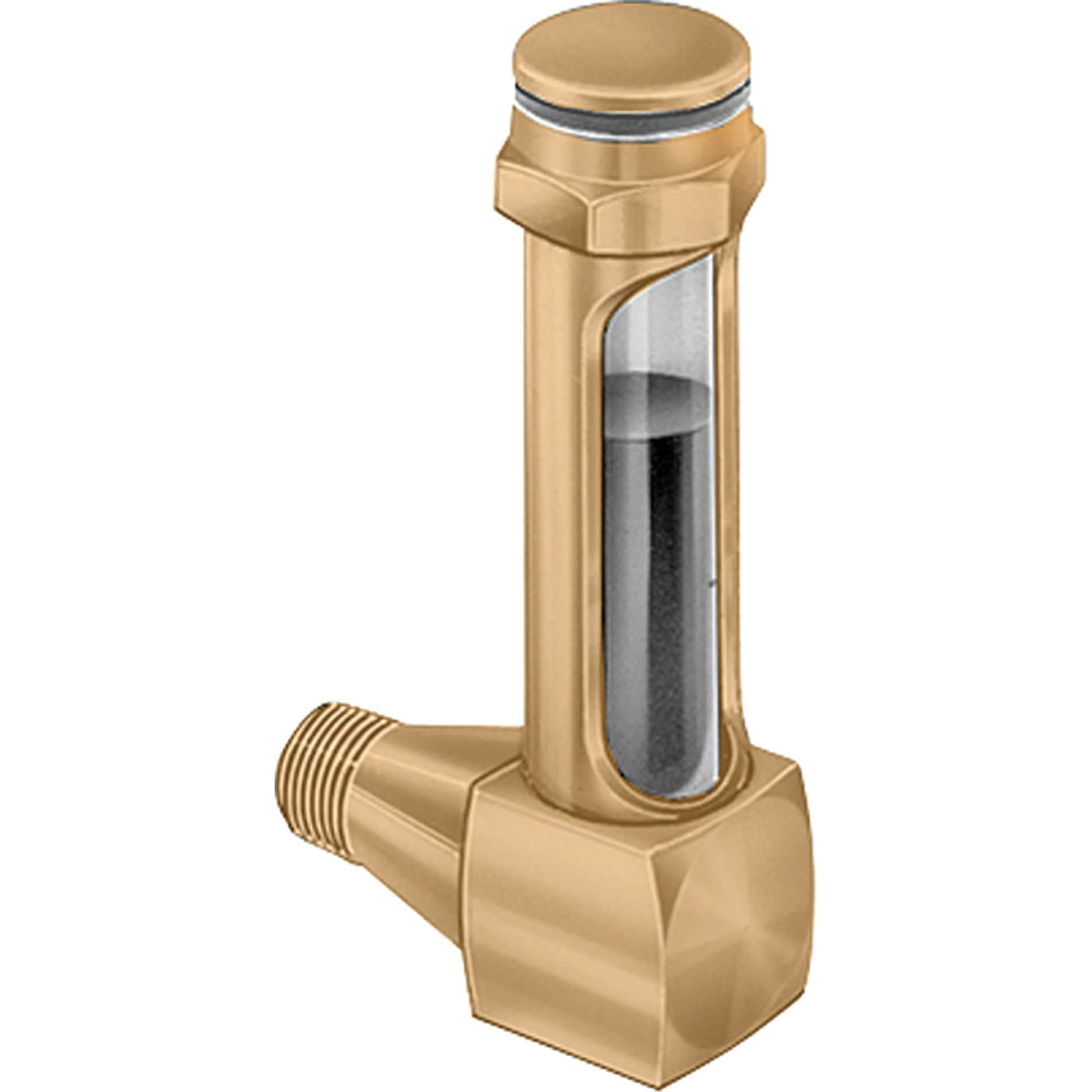

Brass Liquid Level Gauges - Short Elbow, Threaded, 1-15/16" L, 225°F (107.22° C)

• Pressure: Atmospheric pressure, cap is vented
• Body: Brass
• Cap: Brass
• Union Coupling: Steel, plated; Brass gauges are used to indicate level of lubricating liquid supply at bearings, gear boxes, crank cases, transformers, switches etc. These gages are easily installed in any location having enough clearance for a one-piece oil gage.
• Sight

Specifications:
Overall Length: 1-15/16"
Connection: Threaded
Max. Temperature: 225°F (107.22° C)
Glass Dia.: 1/2"
NPT Size: 3/8
Seal: Buna-N
Sight: Glass
Washer: Teflon
