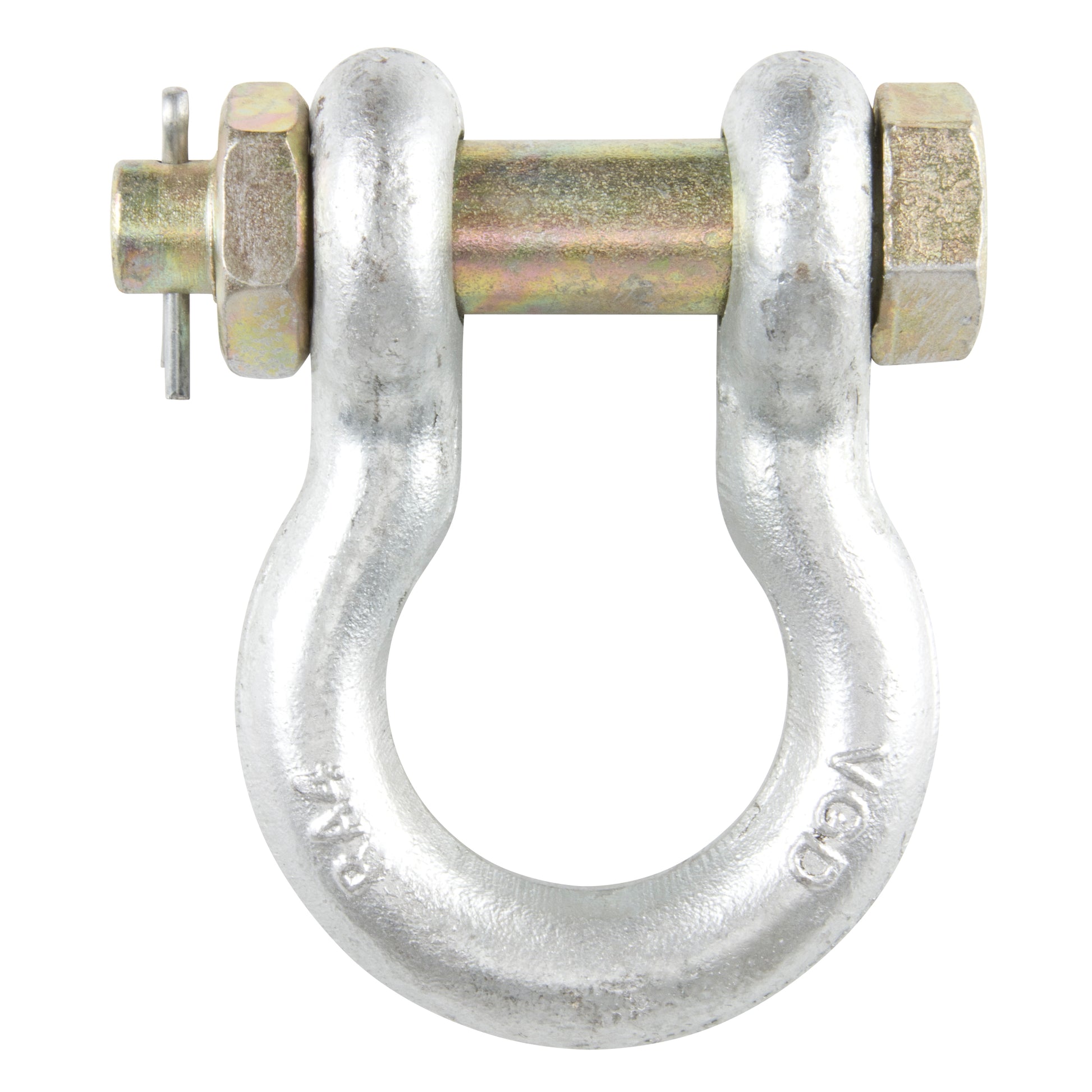

Bolt Type Anchor Shackle, 1-3/4", Bolt Type, Hot Dip Galvanized

• Heat treated carbon steel bows, quenched and tempered with Alloy pins
• Metallic coating of shackle pins allows for closer thread tolerances than possible for shackles with an extra layer of paint
• Design factor 6:1
• Meets the performance requirements of U.S. Fed. Spec. RR-C-271D, ASME B30.26, Type 4A, Class 3 Grade A
• Recommended for long term service installation as well as for applications where there is the possibility that the pin can rotate under load
• Packaging is either recyclable, biodegradable, reduced, and/or features recycled content

Specifications:
Size: 1-3/4"
Capacity: 50000 lbs (25 tons)
Shackle Type: Bolt Type
Shackle Bow Finish: Hot Dip Galvanized
Pin Diameter: 2"
