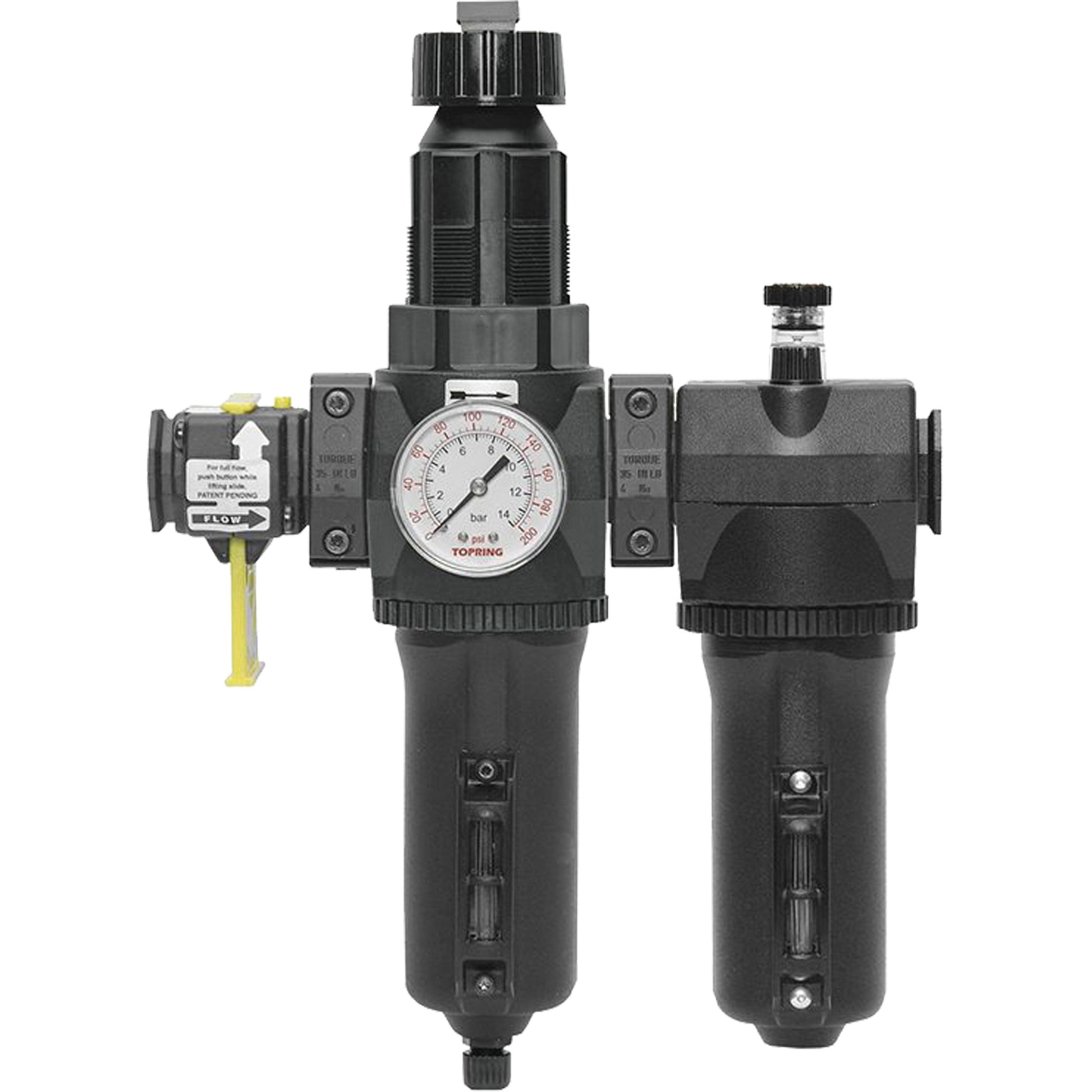

Automatic Drain Filter, Regulator & Lubricator with Metal Bowl & Gauge Modulair 400, 3/4" NPT

• Designed to remove particulate material down to 5 micron from the airstream to protect downstream equipment
• Superior removal of free water up to 98% efficiency
• Superior pressure regulation — diaphragm type regulator
• Self-relieving design regulator
• “Push-pull” adjustment knob
• Transparent dome shows oil delivery
• Filtration
• Features recyclable, biodegradable, and/or recycled content

Specifications:
Connection Size: 3/4" NPT
Max. Air Flow: 130 SCFM @ 100 PSI
Operating Pressure: 200 psi
Bowl Material: Aluminum
Bowl Capacity: 9.1 fl. oz.
Ambient Temperature: 4 to 66 °C
Filtration: 5 Micron
