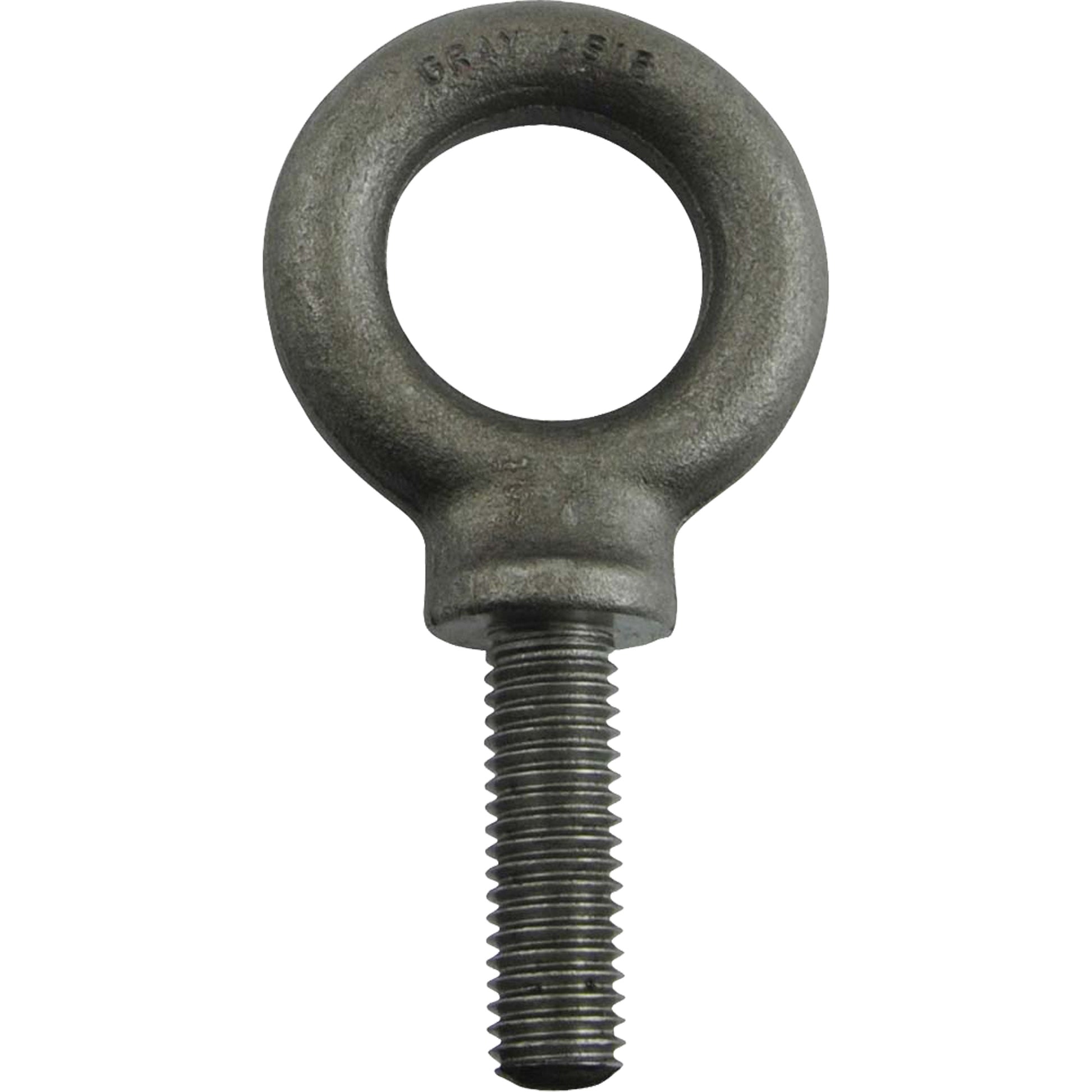

Alloy Steel Eye Bolt, 1-3/16" Dia., 1-1/2" L, 2700 lbs./2700 lbs. (1.35 tons) Capacity

• For cold weather working environments down to -40°C/-40°F
• Proof tested in accordance with ASTM F 541 and Federal Spec. ANSI B18.15
• Rated capacity is for 0° vertical pulls
• Outer Eye Diameter

Specifications:
Working Load Limit: 2700 lbs./2700 lbs. (1.35 tons)
Eye Diameter: 1-3/16"
Shank Length: 1-1/2"
Body Style: With Shoulder
Shank Threading: Fully Threaded
Thread Size: 1/2"-13
Outer Eye Diameter: 2-1/16"
Thread Size (UNC-2A): 1/2"-13
Overall Length: 4"
Centre Of Eye To Shoulder: 1.38"
Net Weight: 0.35 lbs.
Material: Grade 8260 Alloy Steel
