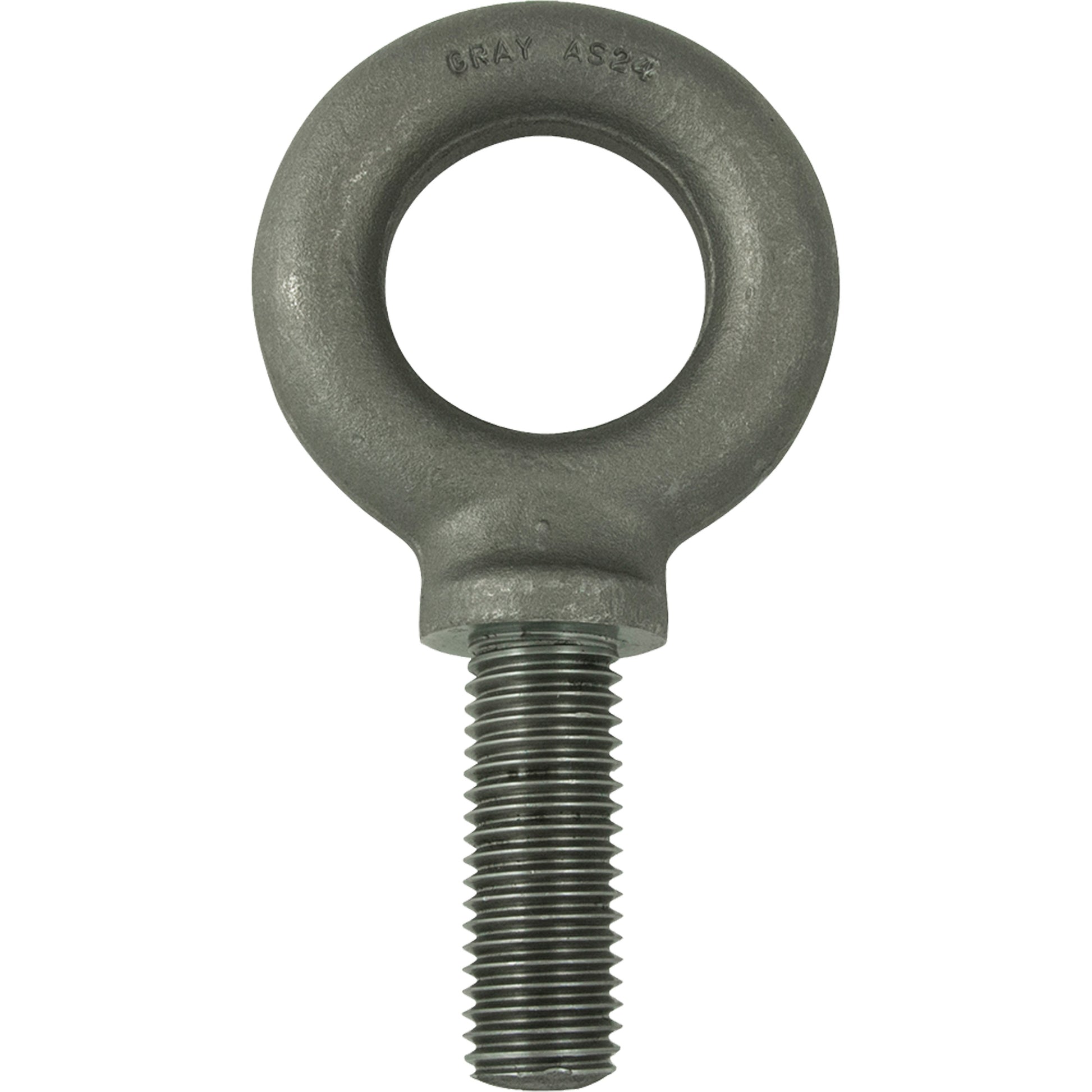

Alloy Steel Eye Bolt, 1-1/2" Dia., 2" L, 6400 lbs./6400 lbs. (3.2 tons) Capacity

• For cold weather working environments down to -40°C/-40°F
• Proof tested in accordance with ASTM F 541 and Federal Spec. ANSI B18.15
• Rated capacity is for 0° vertical pulls
• Outer Eye Diameter

Specifications:
Working Load Limit: 6400 lbs./6400 lbs. (3.2 tons)
Eye Diameter: 1-1/2"
Shank Length: 2"
Body Style: With Shoulder
Shank Threading: Fully Threaded
Thread Size: 3/4"-10
Outer Eye Diameter: 2-13/16"
Thread Size (UNC-2A): 3/4"-10
Overall Length: 5.28"
Centre Of Eye To Shoulder: 1.82"
Net Weight: 1.1 lbs.
Material: Grade 8260 Alloy Steel
