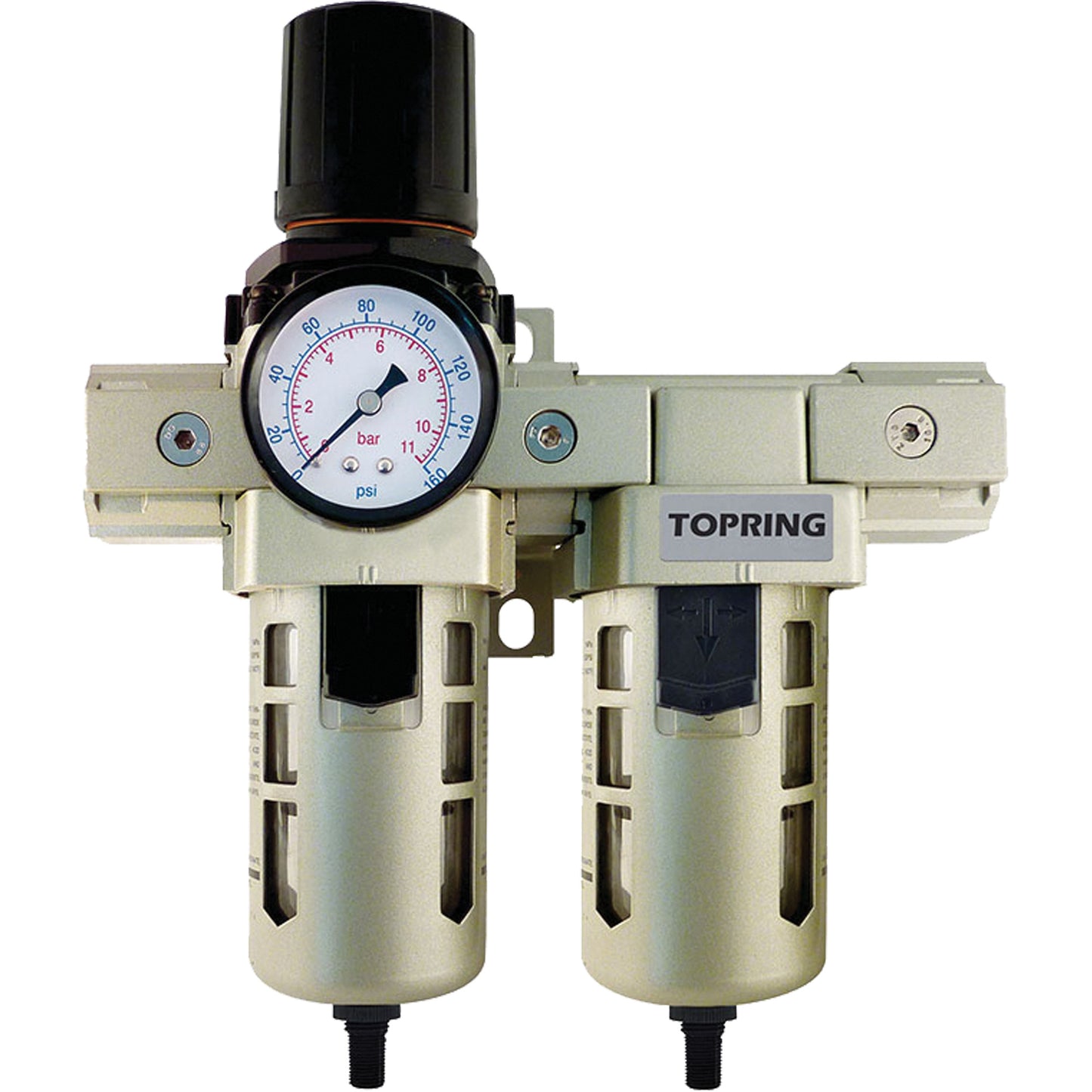

Airflo 400 Filter, Regulator & Coalescing Filter, 1/2" NPT, 150 PSI, 1.5 fl. Oz. Capacity

• Compact design with space saving integrated filter/regulator
• Accurate pressure control with little drift
• Removable locking push-pull adjusting knob
• Standard semi-automatic drain requires a simple tug of the ring to drain
• High performance filter that removes solid particles and oil and water aerosols greater than 0.01 micron, of which 99.97 % of those between 0.3 and 0.6 micron
• Equipped with a pressure gauge, piping adapters and mounting bracket
• Pressure Gauge Port Size

Specifications:
Connection Size: 1/2" NPT
Max. Air Flow: 84 SCFM @ 100 PSI
Max. PSI: 150 PSI
Bowl Material: Polycarbonate
Bowl Capacity: 1.5 fl. Oz.
Working Temperature: 5 to 60 °C
Pressure Gauge Port Size: 1/4" (F) NPT
Body Material: Die cast Aluminum
Bowl Guard: Steel
Regulation Type: Relieving
Deflector & Spinner: ABS
O-Rings & Seals: EPDM Rubber
Poppet Valve: Brass & Rubber
Regulator Spring: Stainless Steel
