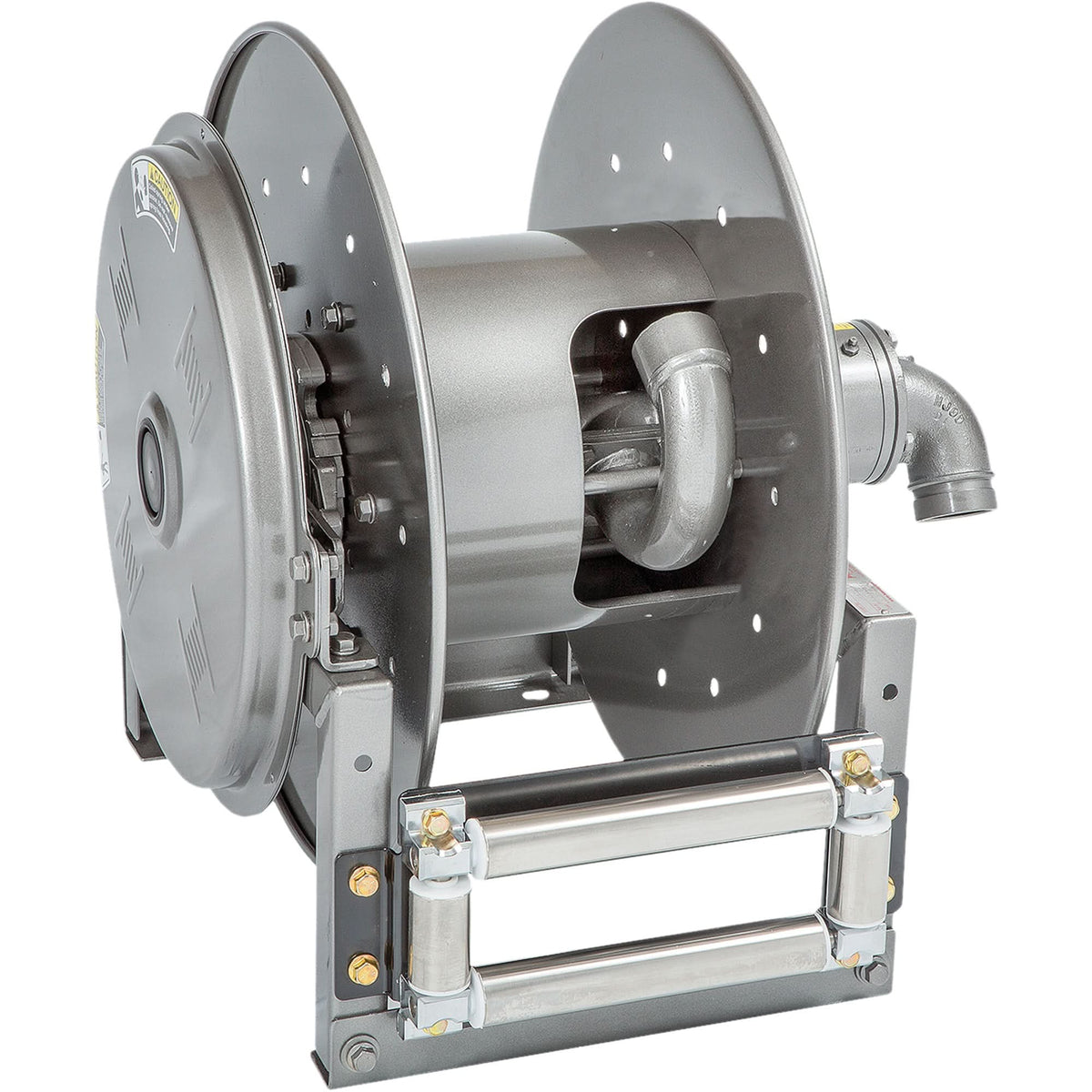

900 Series Hose Reel, Spring

• Roll-formed channel frame construction
• Non-sparking ratchet assembly
• Declutching arbor to prevent damage from reverse winding
• 4-way roller assembly
• Hose not included

Specifications:
Drive Type: Spring
Capacity: 40' of 1-1/4" Hose or 25' of 1-1/2" Hose
Inlet: 90° Swivel Joint, 1-1/2" Female NPT Threads & 2" Victaulic® Groove
Outlet: 1-1/2" Female NPT Threads
Maximum Pressure: 600 PSI (41 Bar)
Temperature Range: -60°F - 175°F (-51°C - 79°C)
