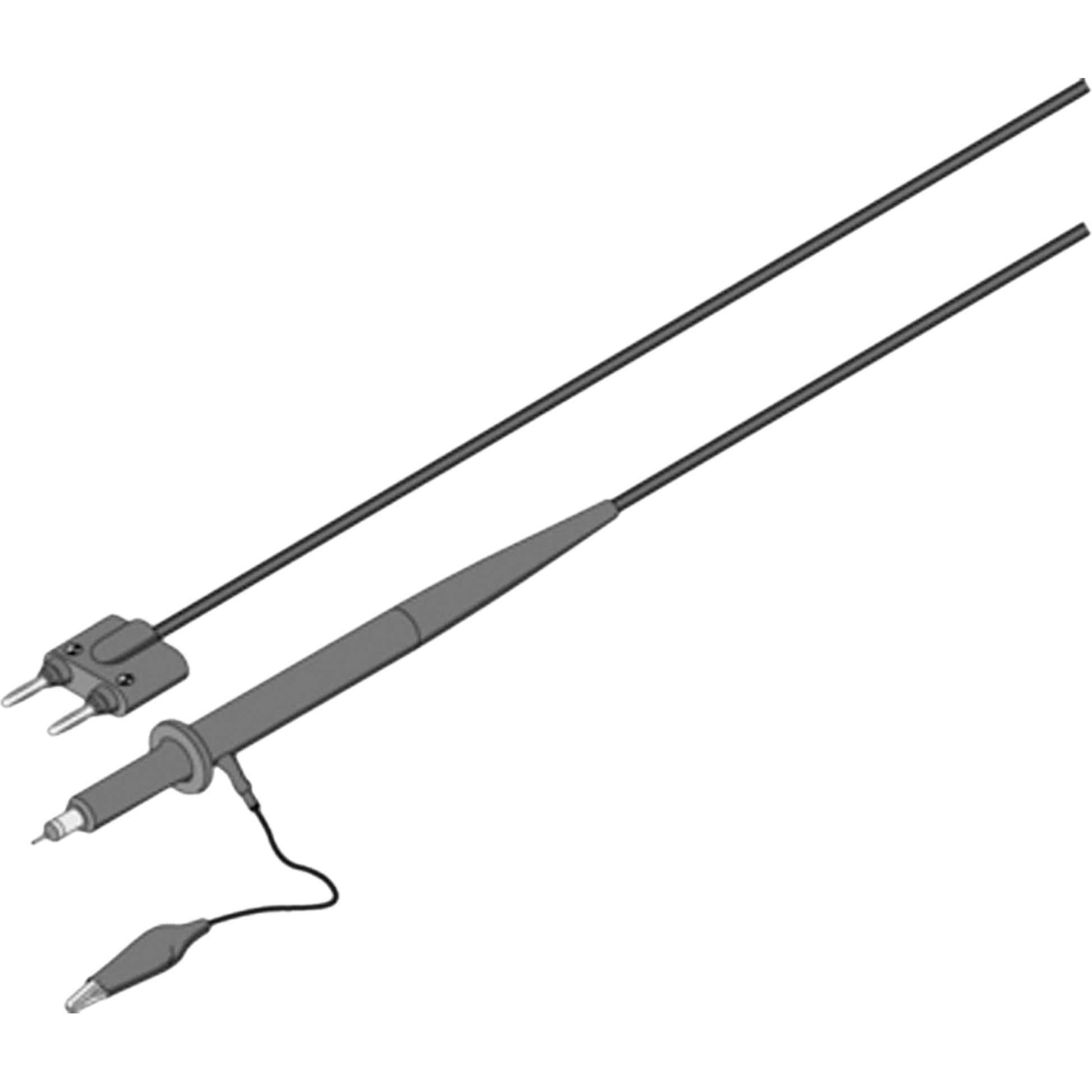

85RF-II High Frequency Probe

• Designed to convert a DC voltmeter with a input impedance of 10M ohms into a high frequency RF voltmeter
• Conversion from AC to DC is accomplished on a one-to-one basis
• The probe's DC output is calibrated to be equivalent to the rams value of a sine wave input

Specifications:
Frequency Range: 100 kHz - 500 MHz
Voltage Range: 0.25 - 30 V RMS
Max. Input Voltage: 30 V RMS, 200 V DC
AC To DC Ratio: 1:1
Ratio Accuracy: ±0.5 dB
