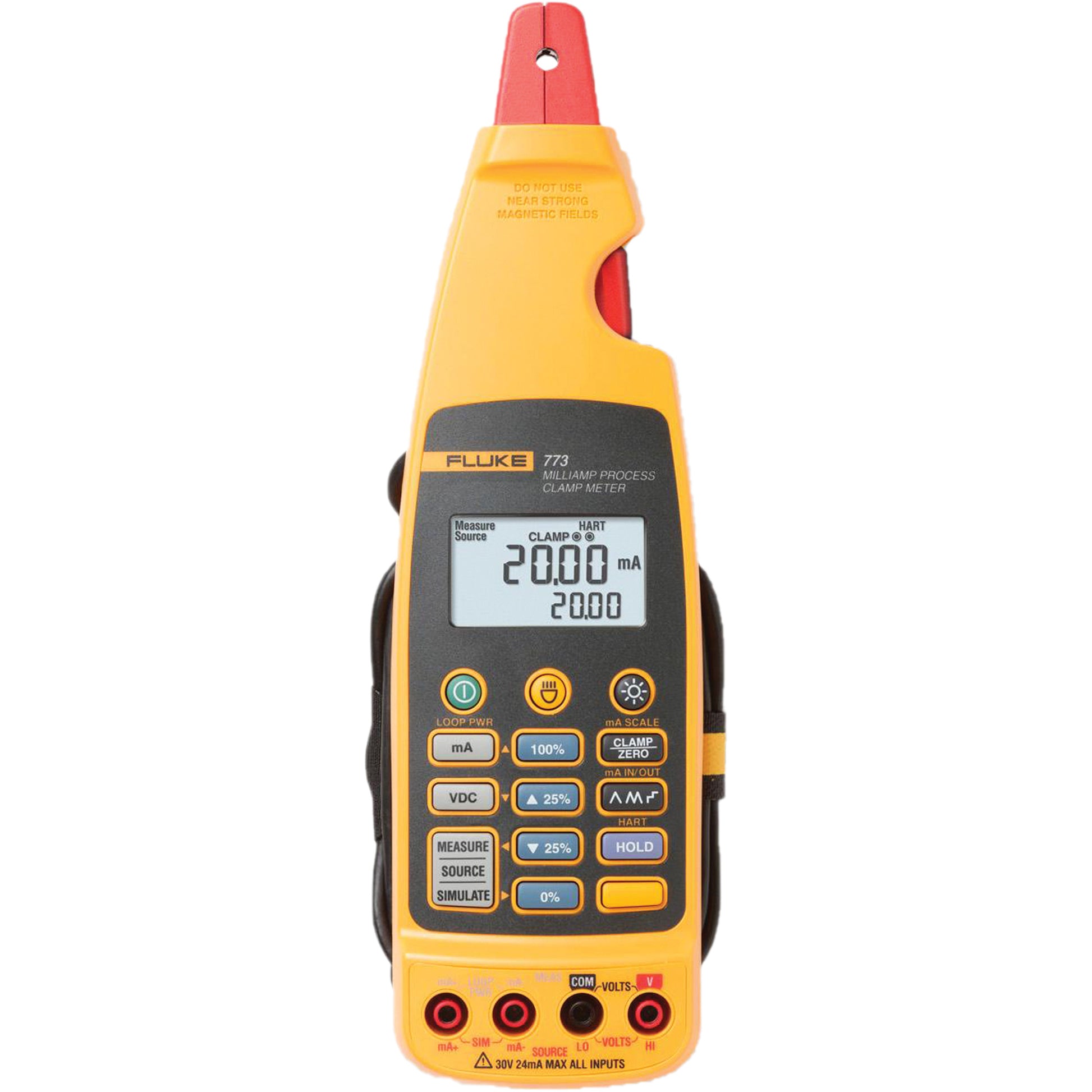

773 Milliamp Process Clamp Meter

• Loop calibrator that measures 4 to 20 mA signals without breaking the loop
• Sources 4 to 20 mA signals for testing control system I/O or I/Ps
• Measures DC voltage to verify 24 V power supplies or voltage I/O signals
• Measures mA signals for PLC and control system analog I/O
• Simultaneously measures the mA signal with the clamp and sources a mA signal
• Features a detachable clamp with extension cable for measurements in tight locations
• IP Rating
• Offers mA output linear ramp or 25% step output

Specifications:
Display: Digital
Accuracy: 0.2%
Resolution: 0.01 mA
Sensitivity: 0.01 mA
Max. Diameter Of Measurable Conductor: 4.5 mm (0.177")
Operating Temperature: -10 - 50°C
IP Rating: IP40
Approvals: EN61326-1
Manufacturer's Warranty: 3 Years (Electronics), 1 Year (Cable & Clamp Assembly)
