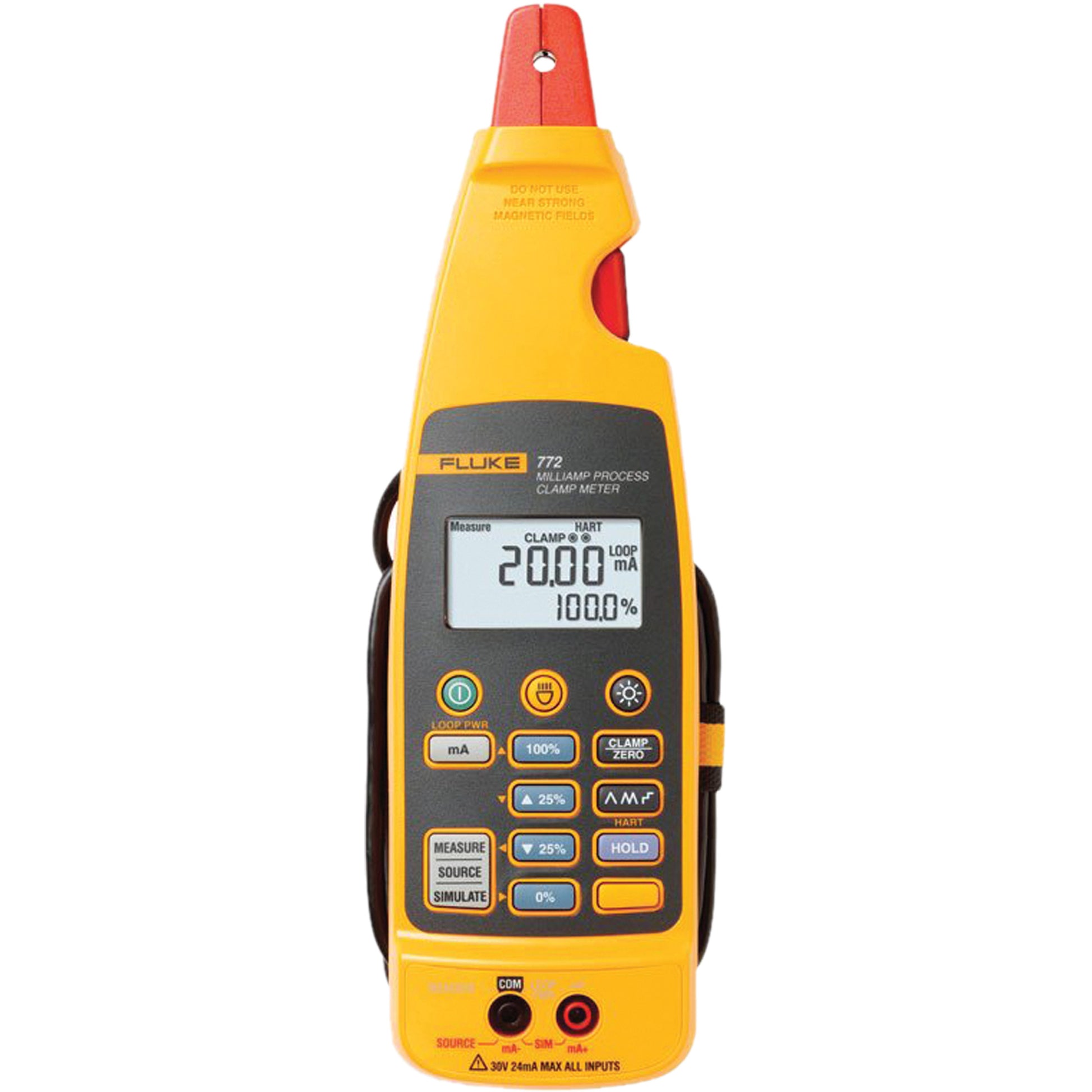

772 Milliamp Process Clamp Meter

• Loop calibrator that measures 4 to 20 mA signals without breaking the loop
• Simultaneously measures the mA signal with the clamp and sources a mA signal
• Measures mA signals for PLC and control system analog I/O
• Includes simultaneous mA in-circuit measurement with 24 V loop power for powering and testing transmitters
• Features a detachable clamp with extension cable for measurements in tight locations
• Captures and displays changing measurements with hold function
• IP Rating
• Extends battery life with auto-off and backlight timeout

Specifications:
Display: Digital
Accuracy: 0.2%
Resolution: 0.01 mA
Sensitivity: 0.01 mA
Max. Diameter Of Measurable Conductor: 4.5 mm (0.177")
Operating Temperature: -10 - 50°C
IP Rating: IP40
Approvals: EN61326-1
Batteries Required: (4) AA
Manufacturer's Warranty: 3 Years (Electronics), 1 Year (Cable & Clamp Assembly)
