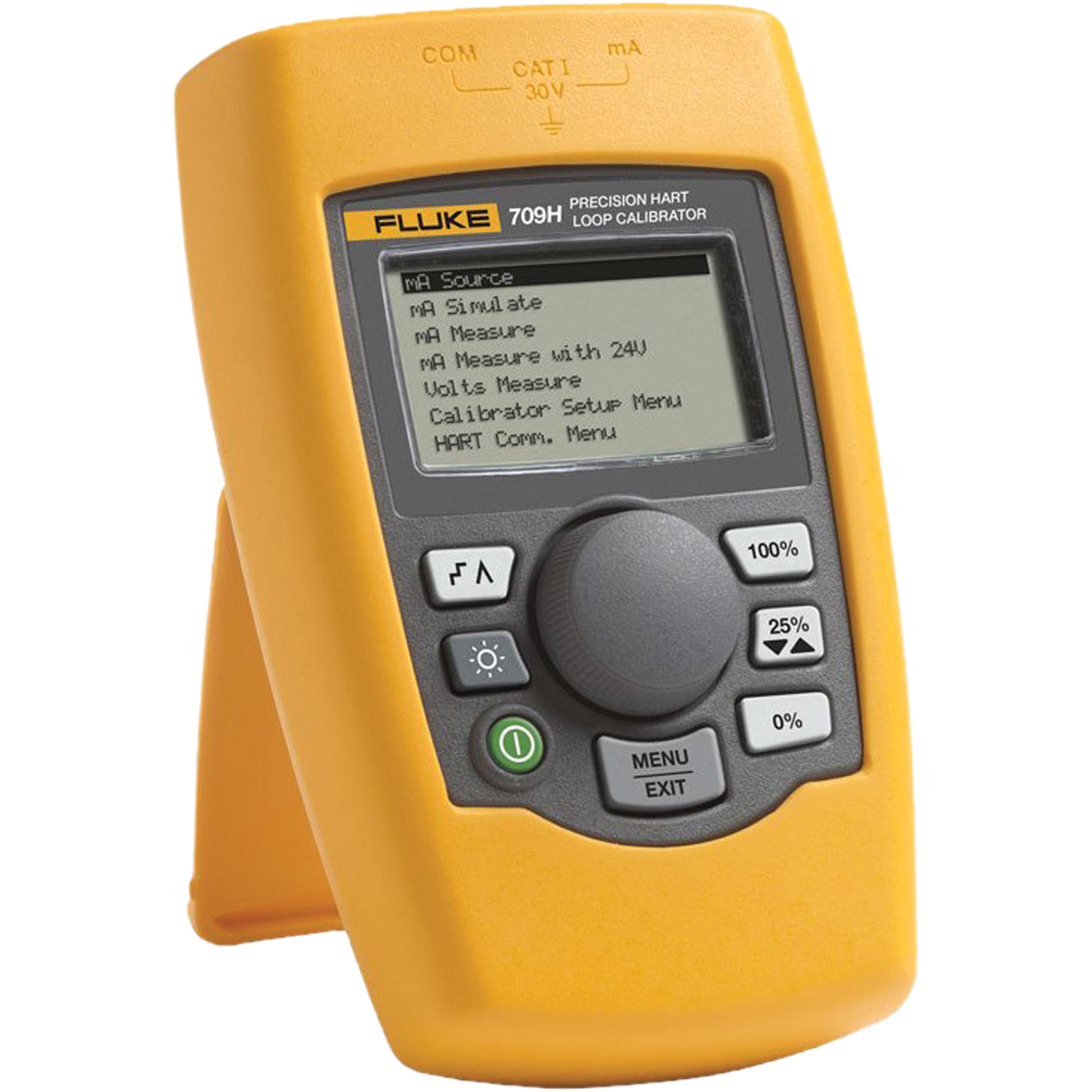

709H Loop Calibrator with HART® Communications/Diagnostics

• Communicates with and tests HART® smart instruments
• Intuitive user interface with quick-set knob for fast setup
• Includes built-in selectable 250 Ω resistor for HART® communication
• Features 24 V DC loop power with mA measure mode (-25% to 125%)
• Requires only simple two wire connection for all measurements
• Provides resolution of 1 µA on mA ranges and 1 mV on voltage ranges
• Overload Current Protection
• Offers variable step and ramp time in seconds

Specifications:
Display: Digital
Current Range: 0 - 24 mA
Voltage Range: 0 - 30 V DC
Accuracy: 0.01% ± 2 Counts
Loop Power: 24 V DC
Over-Voltage Protection: 240 V AC
Overload Current Protection: 28 mA DC
Approvals: EN61326 Annex A (Portable Instruments)
Dimensions: 152 x 70 x 41 mm
Weight: 340 g
