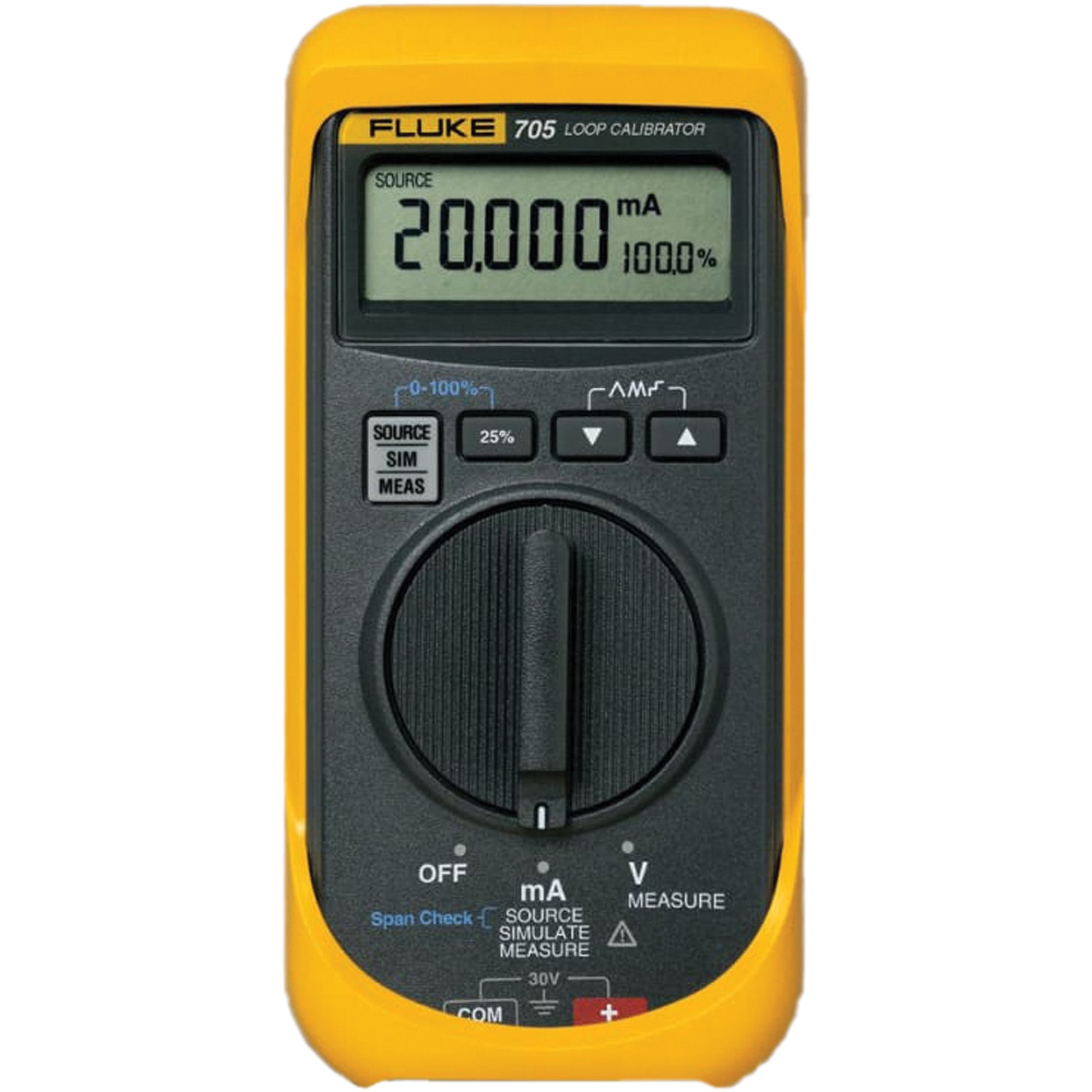

705 Loop Calibrator

• Cost effective, integrated solution for calibration, repair, and maintenance of milliamp loops
• Simultaneous mA and % readout for quick, easy interpretation of readings
• Features push button 25% steps for fast, easy linearity checks
• Selectable slow ramp, fast ramp, and step ramp to provide smooth outputs for valve slewing and loop functional tests
• Runs on a single 9 V battery that is easily changed without breaking the calibration seal
• Features "span check" for fast confirmation of zero and span
• Max. Voltage
• Includes: AC70A alligator clips, C10 protective yellow holster with Flex-Stand™, Instruction sheet, TL75 safety-designed test lead set, NIST-traceable calibration report and data

Specifications:
Display: Digital
Current Range: 0 - 24 mA
Current Sourcing: 0 - 20 mA or 4 - 20 mA
Current Simulation: 0 - 20 mA or 4 - 20 mA
Loop Power: 24 V DC
Voltage Range: 0 - 28 V DC
Max. Voltage: 30 V
Approvals: CSA C22.2 No. 1010.1:1992, EN50082-1:1992 and EN55022:1994 Class B
Dimensions: 152 x 70 x 41 mm
Weight: 340 g
