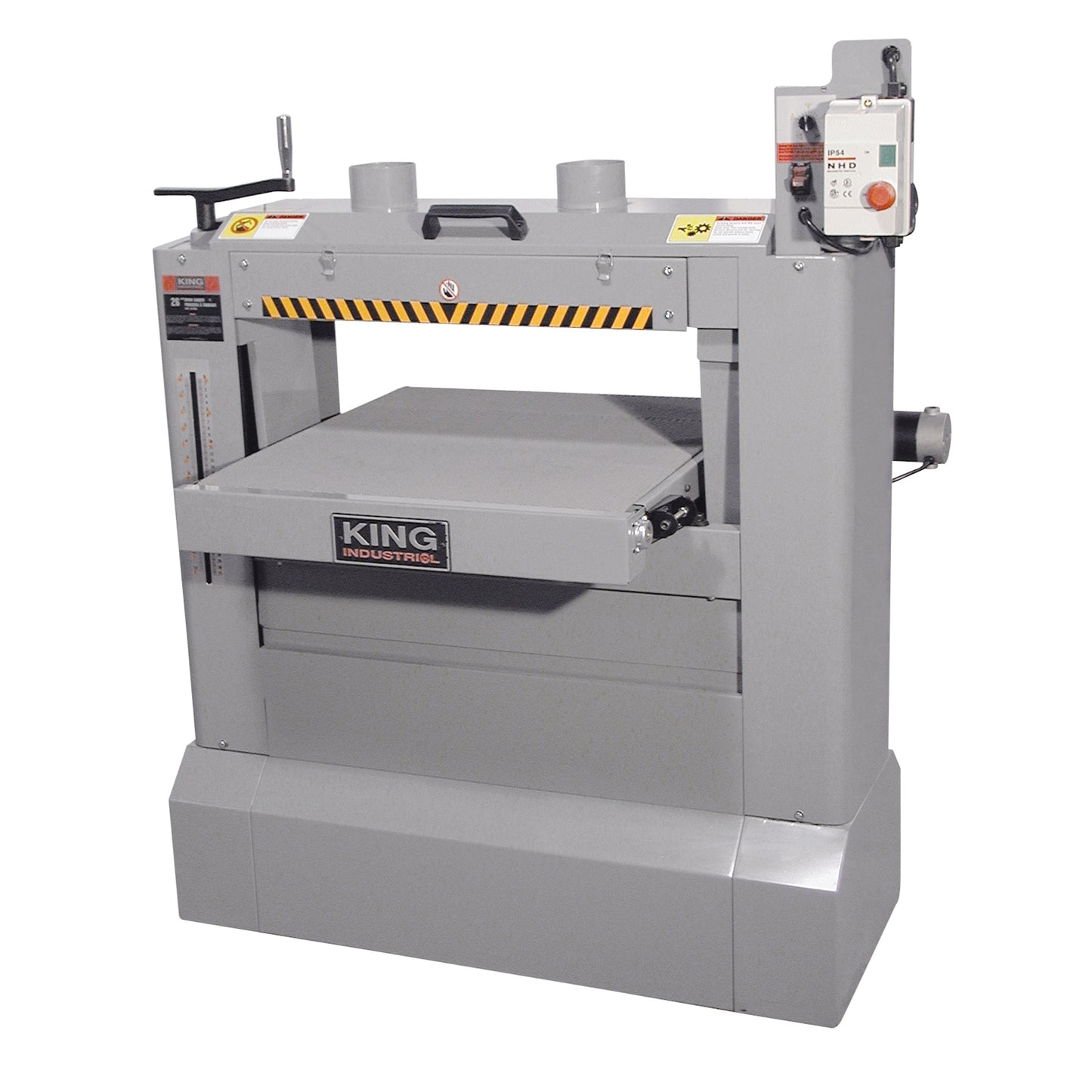

26" x 12" Dual Drum Sanders

• 26" width by 12" thickness capacity
• Variable feed speed
• Heavy-duty base and steel frame provides stability during operation
• The parallelism between the sanding drums and the conveyor table is easily adjusted by turning adjustment screws
• Magnetic safety switch
• Twin 4" dust chutes for dust collector hook-up
• Maximum Thickness Of Board
• Weight: 485 lbs.

Specifications:
Overall Width: 30-1/2"
Overall Length: 45"
Overall Height: 49"
Drum Motor: 3 HP, 220 V, 1 phase
Belt Feed Motor: 1/4 HP, 220 V, 1 phase
Maximum Width Of Sanding: 26"
Maximum Thickness Of Board: 12"
Minimum Thickness Of Board: 1/4"
Minimum Board Length: 5"
Feeding Speed: 3-20 SFPM
Number Of Sanding Drums: 2
Drum Speed: 1600 RPM
Voltage: 220 V, 1 phase, 60 Hz
