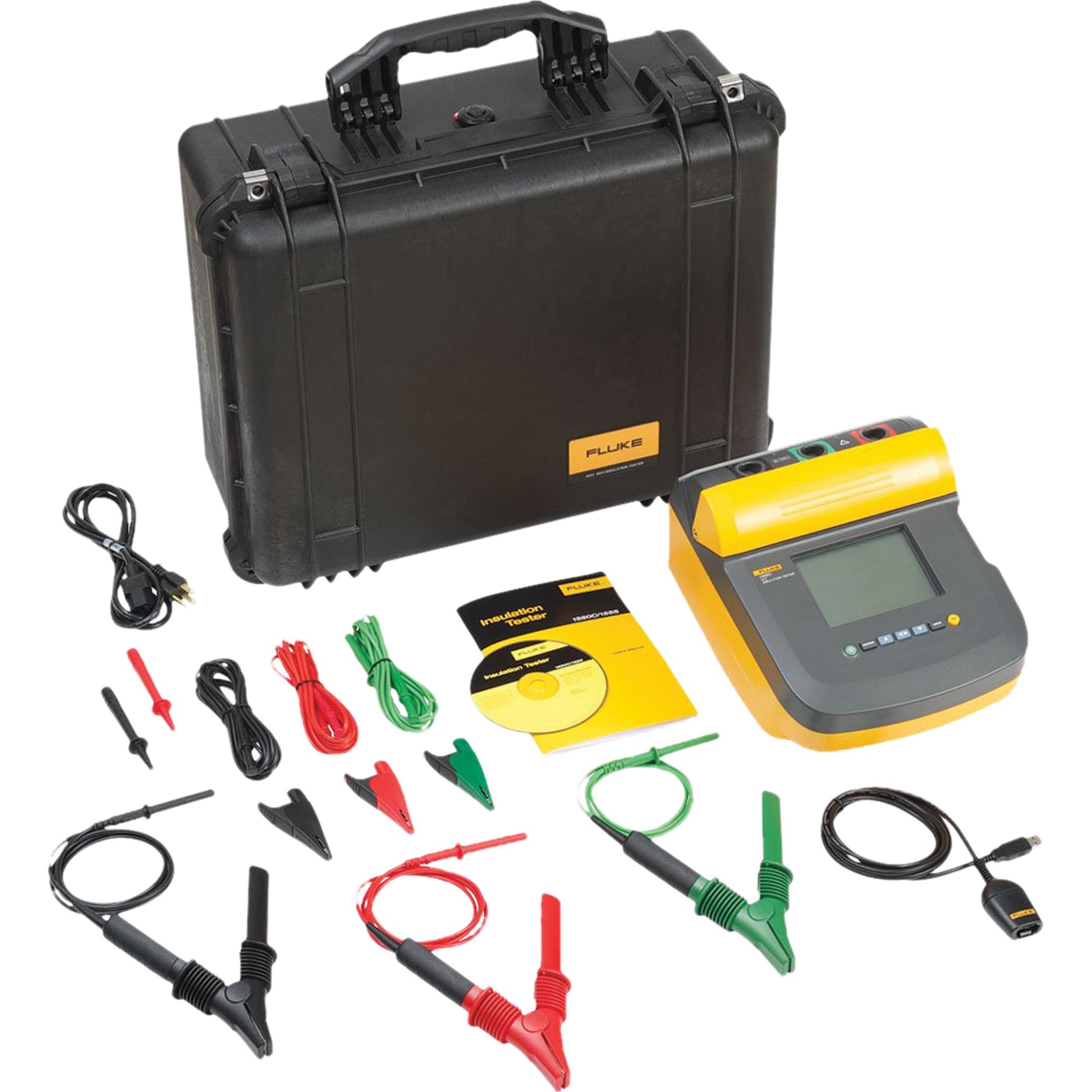

1550C Insulation Tester Kit, Digital

• Quickly configure, start and stop tests remotely, a safe distance away from any operating, energized equipment, using Fluke Connect® and a smart phone
• Real time trending gives you easy-to-see visual cues, rather than hard to read, rapidly changing values
• Fluke Connect® saves test results to the cloud for analysis and preventive maintenance
• Automatic calculation of Dielectric Absorption (DAR) and Polarization Index (PI) with no additional setup
• Guard system eliminates the effect of surface leakage current on high-resistance measurements
• Warning function alerts the user that line voltage is present and gives the voltage reading up to 600 V AC or DC for increased user safety
• Timer
• Long battery life gives the user over 750 tests between charges

Specifications:
Display Type: Digital
Max. Test Voltage: 5 kV
Resistance Range: 0 - 1 TΩ
Accuracy: -0%, +10% at 1 mA load current
Leakage Current Range: 1 nA - 2 mA
Capacitance Range: 0.01 μF - 15 μF
Timer: 0 - 99 min.
System Requirements: Windows XP, Windows Vista, Windows 7 or Windows 8
Safety Rating: CAT III 1000 V, CAT IV 600 V
IP Rating: IP40
