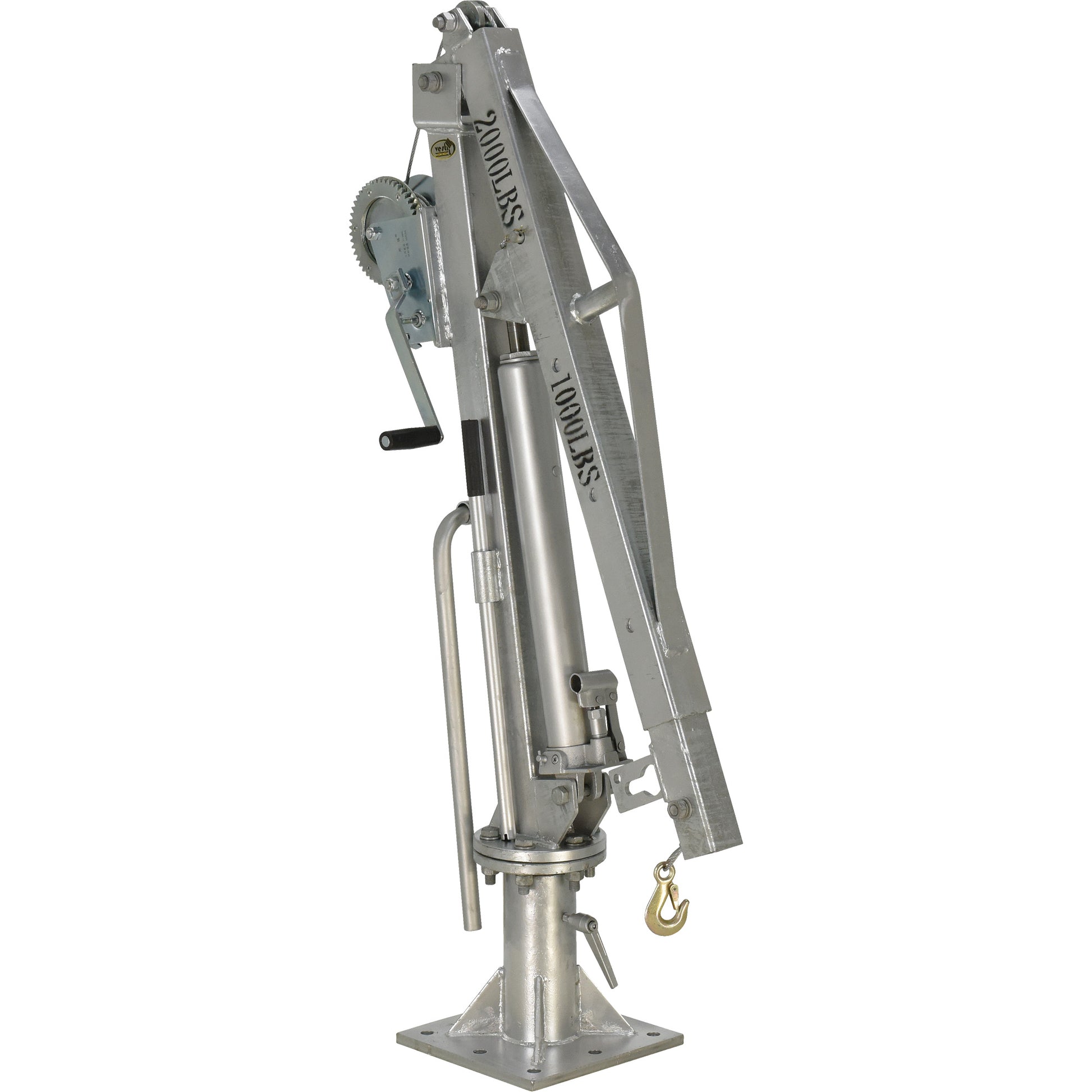

Winch Operated Truck Jib Crane, 1000 lbs. (0.5 tons) Capacity, 97" Max. Clearance

• Lift items from ground to truck bed height
• Install in pick up truck beds
• Telescopic boom design with manual hydraulic hand pump to pivot boom up and down
• Manual cable winch to lift and lower loads
• Friction brake winch locks automatically when operator turns the handle counter clockwise to lower load
• Cable usage length: 24'
• Boom Extended Reach
• Mounting plate is 10-5/8" by 10-5/8"

Specifications:
Capacity: 1000 lbs. (0.5 tons)
Max. Lift Clearance: 97"
Boom Extended Capacity: 1000 lbs.
Chain Material: Steel
Boom Retracted Capacity: 2000 lbs.
Cable Winch Capacity: 500 lbs.
Boom Extended Reach: 52"
Boom Retracted Reach: 31"
Extended Lift Range: 0 - 97"
Retracted Lift Range: 13-1/2" - 86"
Finish: Galvanized
Weight: 218 lbs.
