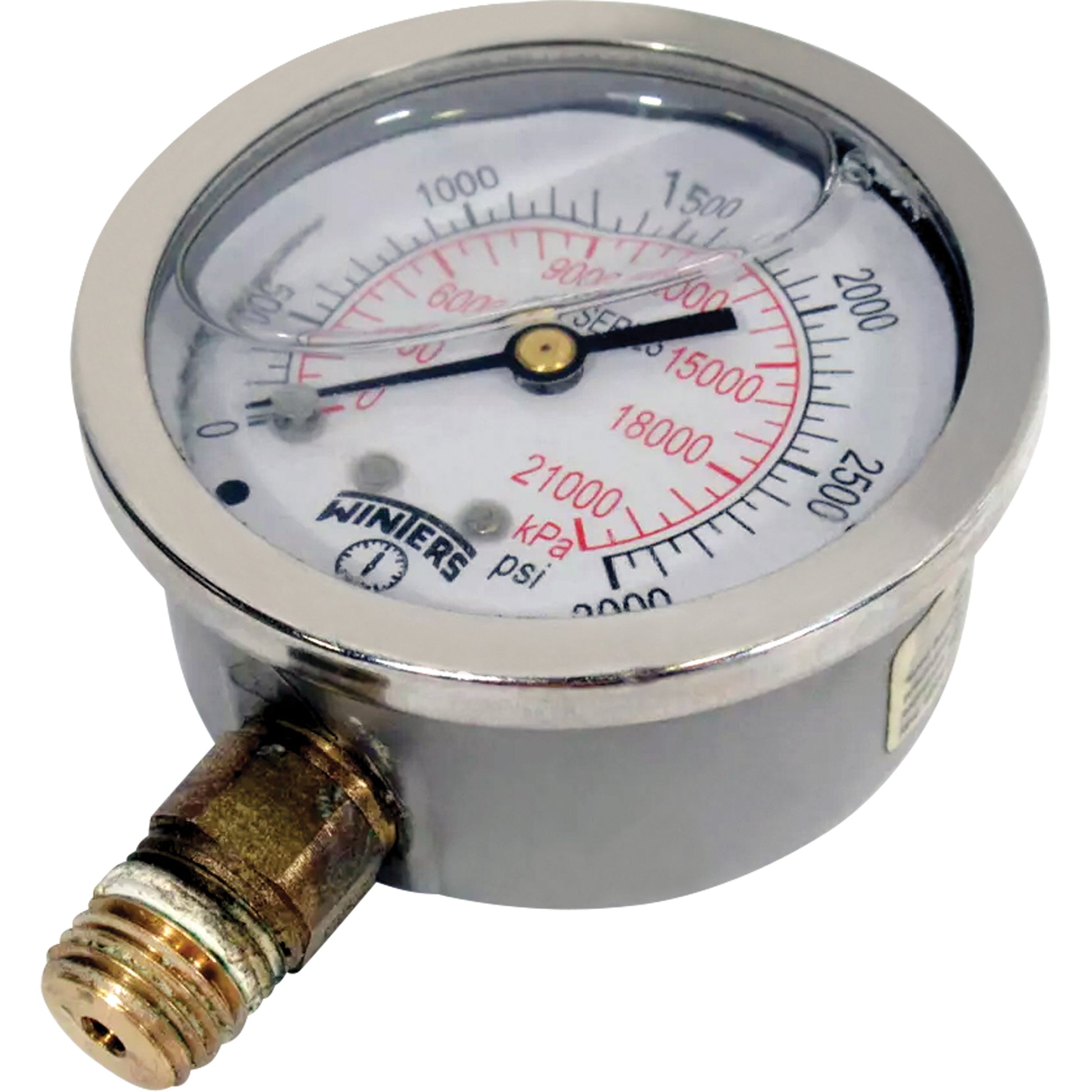

Stainless Steel Pressure Gauge, 2-1/2" , 0 - 3000 psi, Bottom Mount, Liquid Filled Analogue
Stainless Steel Pressure Gauge, 2-1/2" , 0 - 3000 psi, Bottom Mount, Liquid Filled Analogue est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Delivery and Shipping
Delivery and Shipping
Once your order is confirmed, an Estimated Time of Arrival (ETA) will be sent separately via email.
Stainless Steel Pressure Gauge, 2-1/2" , 0 - 3000 psi, Bottom ...
Description
Description
• Pulsation-resistant, stainless steel pressure gauge has 0/3,000 psi/kPa
• Brass, lead-free brass or stainless steel internals
• Crimp-on bezel
• CRN registered
• Ideal for pumps, compressors, hydraulic presses, machinery, pneumatic equipment and motors in harsh environments
• Connection
Specifications:
Dial Diameter: 2-1/2"
Pressure Range: 0 - 3000 psi
Connection: Bottom Mount
Dial Type: Liquid Filled Analogue
Lens: Polycarbonate
Ring: AISI 304 SS, crimp-on
Connection: 0.44"-20 SAE
Fill Liquid: Glycerin
Bourdon Tube: C-shaped for pressures up to and including 600 psi, spiral for pressures above 1,000 PSI
Ambient/Process Temperature: Dry: -40 to 200°F (-40 to 93°C), Glycerin filled: -4 to 150°F (-20 to 65°C)
Accuracy: ±1.5% of full scale
Enclosure Rating: IP65
Working Pressure: Maximum 75% of full-scale value
