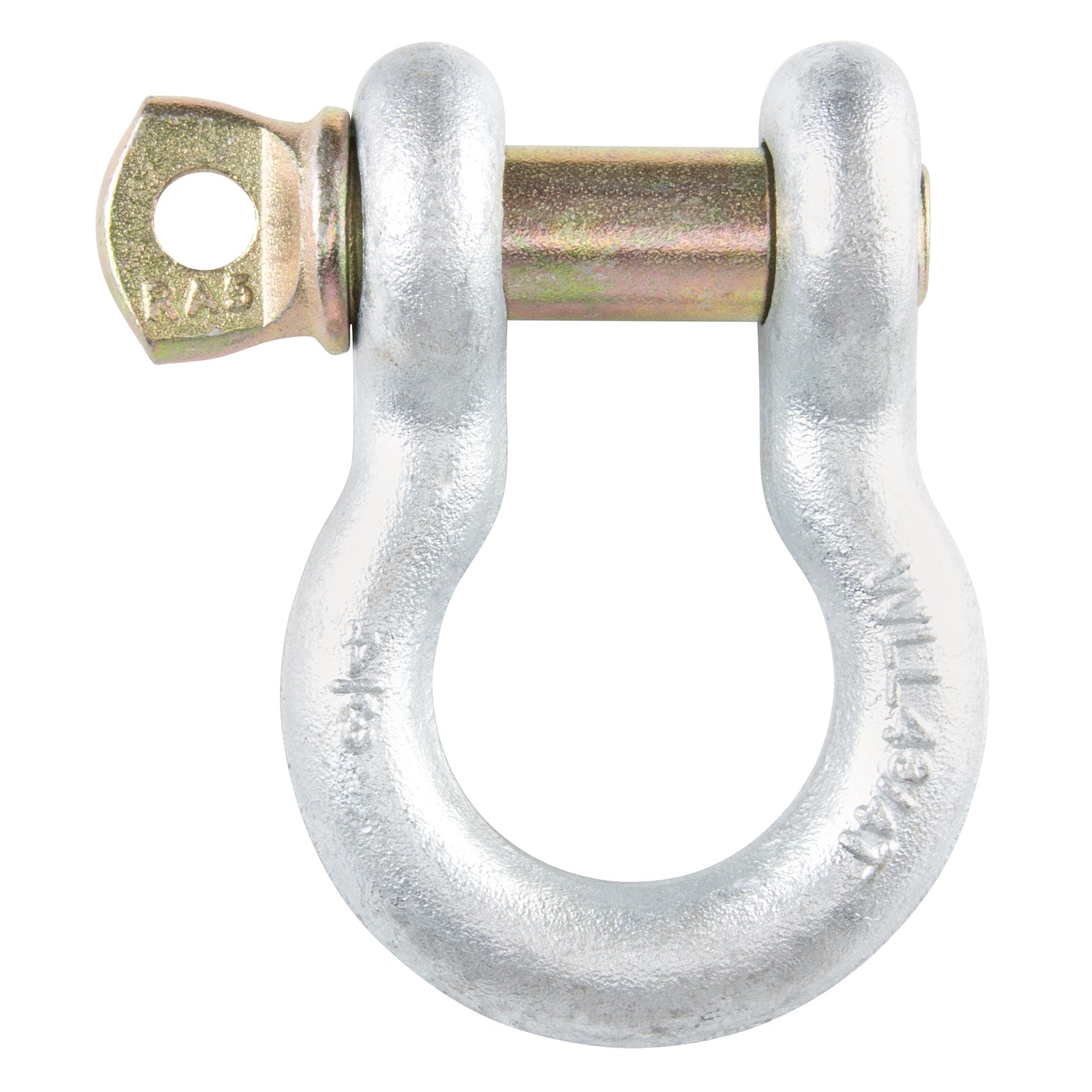

Screw Pin Anchor Shackle, 3/16", Screw Pin, Hot Dip Galvanized

• Heat treated carbon steel bows, quenched and tempered with Alloy pins
• Metallic coating of shackle pins allows for closer thread tolerances than possible for shackles with an extra layer of paint
• Design factor 6:1
• Meets the performance requirements of U.S. Fed. Spec. RR-C-271D, ASME B30.26, Type 4A, Class 2 Grade A
• Packaging is either recyclable, biodegradable, reduced, and/or features recycled content

Specifications:
Size: 3/16"
Capacity: 660 lbs. (0.33 tons)
Shackle Type: Screw Pin
Shackle Bow Finish: Hot Dip Galvanized
Pin Diameter: 1/4"
