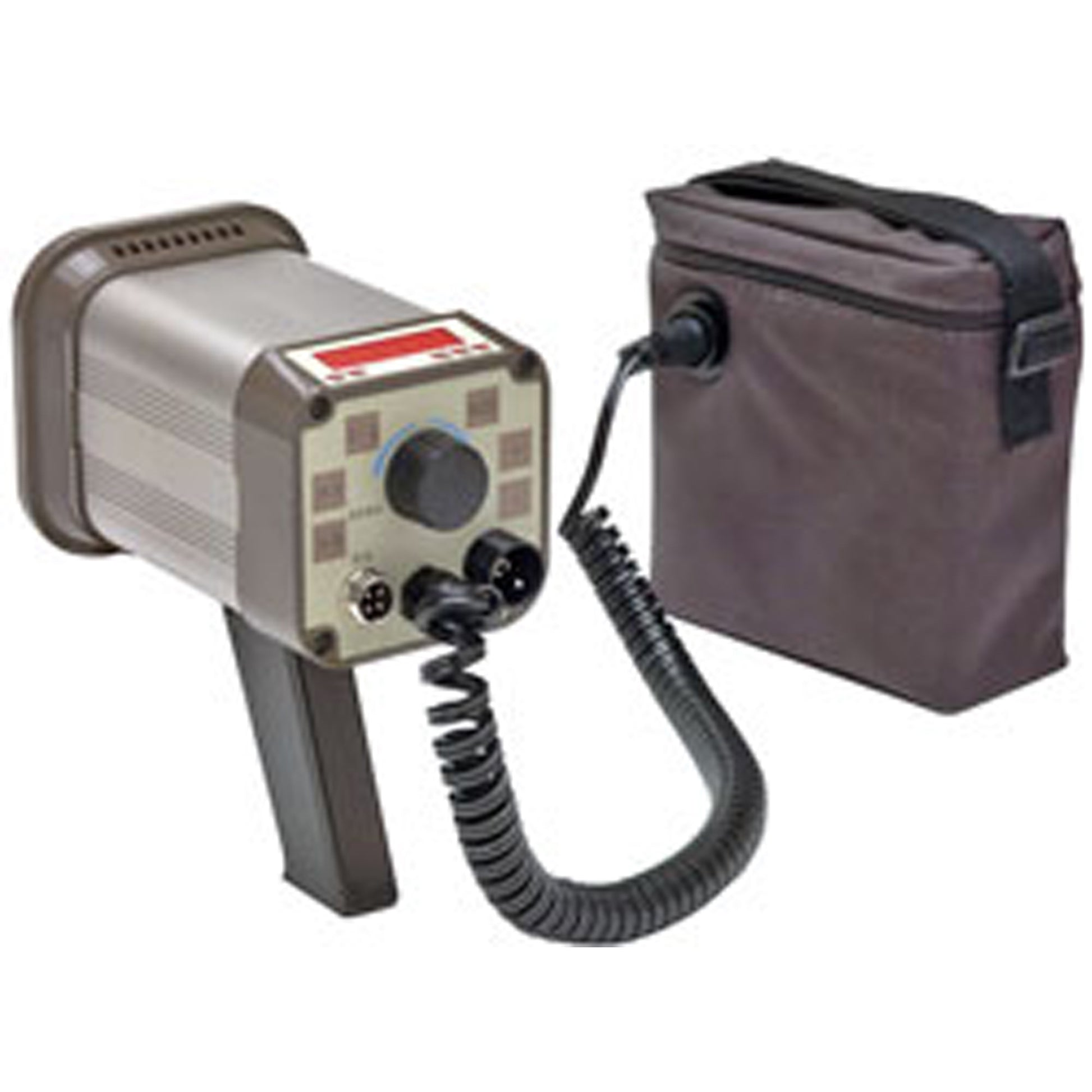

Portable Digital Stroboscope

• Operates independent of line power via an exterior battery pack that can be carried with a convenient shoulder harness or set down to allow the operator full movement for visual inspection
• Features a robust, extruded aluminum housing with precise, repeatable accuracy
• Phase shift (in degrees of delay time) enables visual analysis of rotating/reciprocating objects through all points of motion/time/angle
• Flash timer control prolongs flash tube life
• Manual flash controller knob permits easy and accurate adjustments to flash rate
• External trigger allows synchronization of the flash rate with the motion of the rotating machinery
• Internal Mode Rate Multiplier/Divider
• Highly polished focused reflector prevents "blind" viewing areas

Specifications:
Voltage: 12 VDC
Measuring Range: 40 - 35000 fpm
Resolution: 0.1 FPM (40 to 4999.9 FPM), 0.2 FPM (5000 to 7999.8 FPM), 0.5 FPM (8000 to 9999.5 FPM), 1 FPM (10000 to 35000 FPM)
Internal Mode Display Update Time: 0.2 sec approx.
Internal Mode Output Signal: Synchronous (400 µsec), Pulse (Approx. 0 to 12 VDC amplitude), Impedance (4.7 KΩ)
Internal Mode Accuracy: ± 0.01% of reading
Internal Mode Rate Multiplier/Divider: 154 mJoules per flash
External Mode Flashing Range: 0 to 35000 fpm
External Mode Accuracy: ± 0.01% ± 1 digit
External Mode Phase Shift: 0 to 359° with 1° resolution
External Mode Delay Time: 0 to 2000 msec from 40 to 10000 FPM
