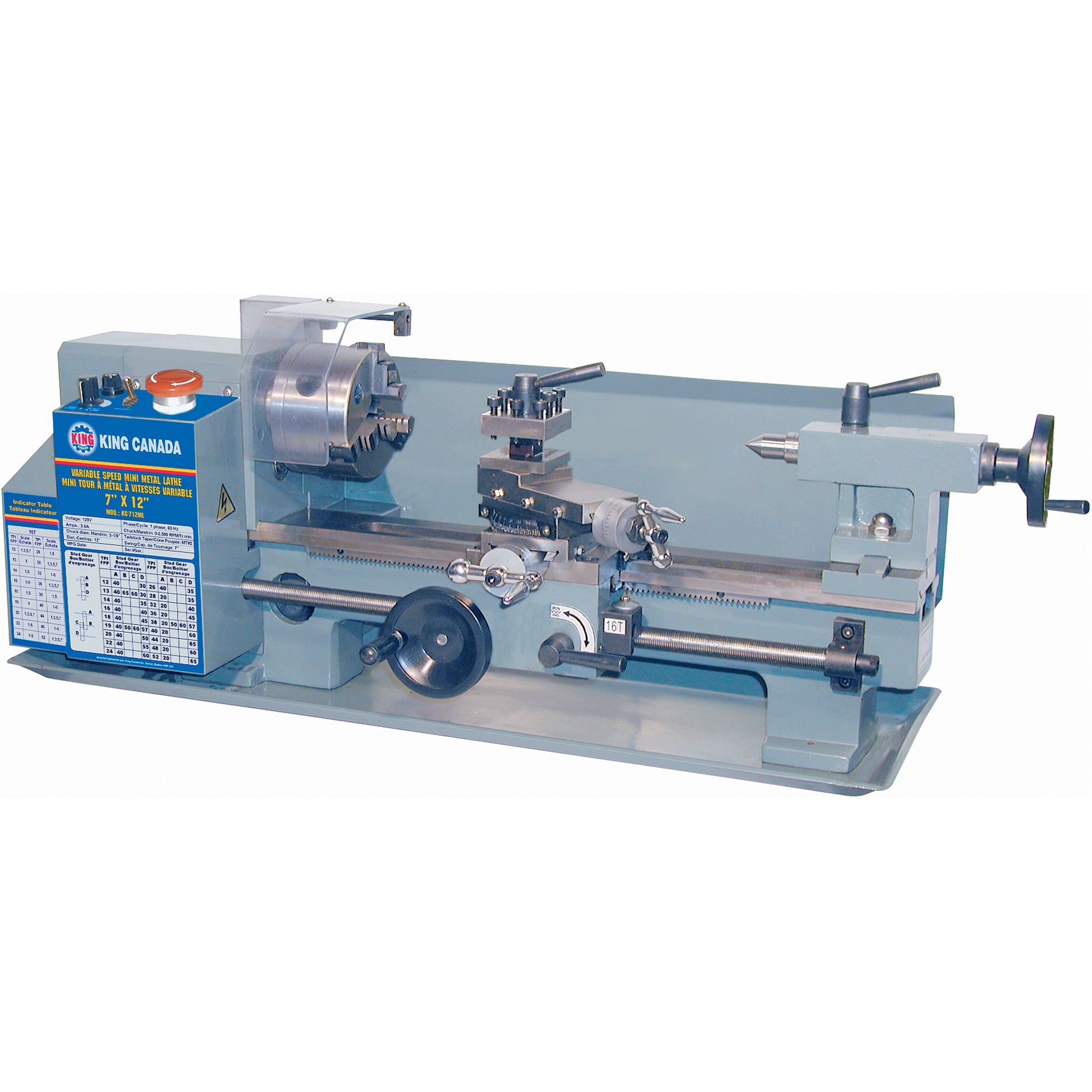

Mini Metal Lathes, 32" L x 11-1/2" W x 13" H

• Clear plastic safety guard automatically shuts lathe off when lifted
• Forward/reverse control
• Variable speed control: 0-2500 RPM
• Includes: 4" 3-jaw chuck, quick change gear box, replacement gears, 4-way tool post, MT#2 dead center, threading dial indicator, emergency stop button, chuck key and hex keys
• Overall Height

Specifications:
Distance Between Centers: 12"
Swing Over Bed: 7"
Swing Over Gap: 7"
Spindle Bore: 3/4"
Overall Width: 11-1/2"
Overall Length: 32"
Overall Height: 13"
Swing Over Cross Slide: 4 1/2"
Taper In Headstock: MT#3
Taper In Tailstock: MT#2
Total Travel Of Cross Slide: 2 3/4"
Total Travel Of Top Slide: 3"
Spindle Variable Speeds: 2 (0-1100 RPM, 0-2500 RPM)
Thread Cutting Range: 12-52 TPI
Motor: 5.5 A, 1 phase, 60 Hz
Voltage: 110 V
Weight: 85 lbs.
