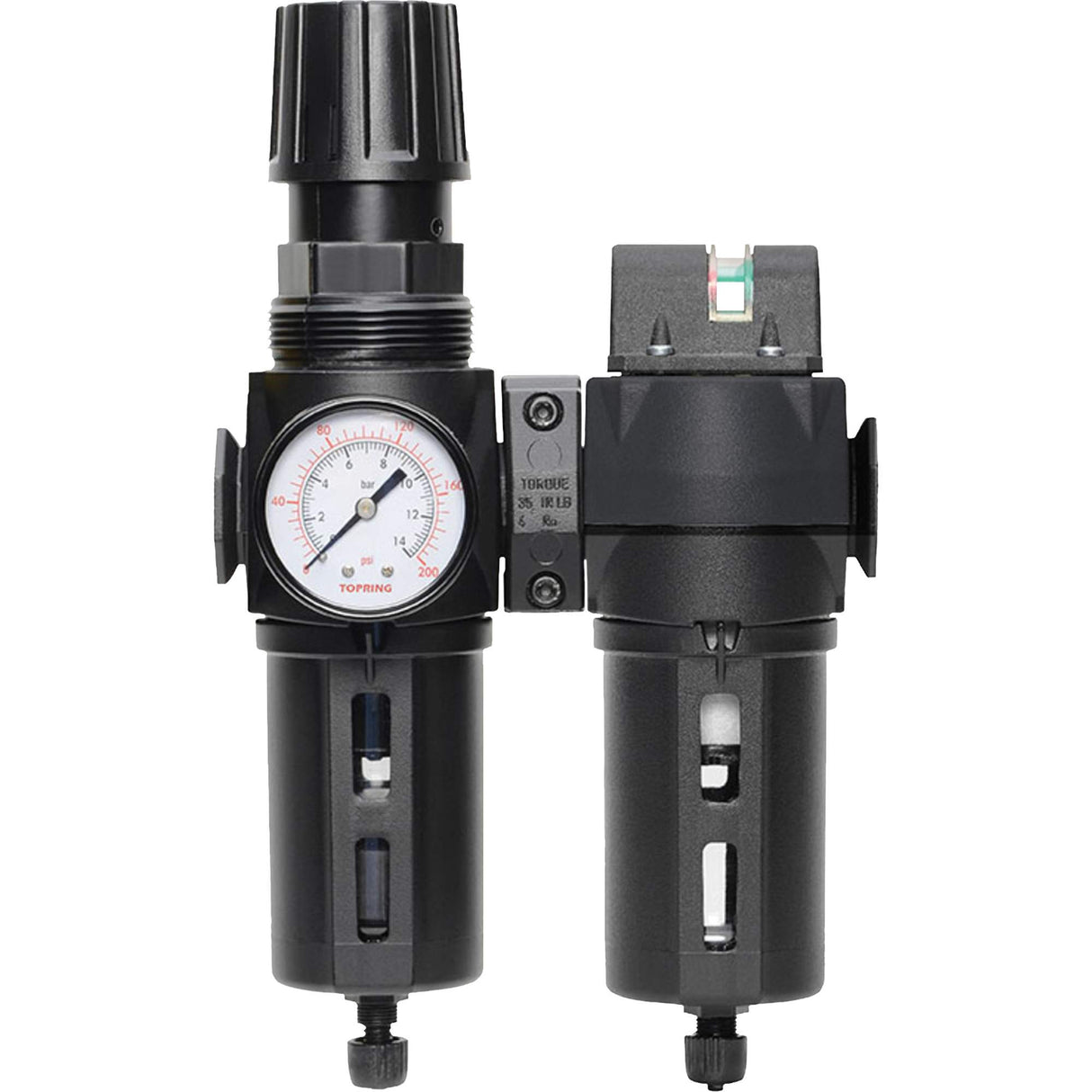

Filter/Regulator & Coalescing Filter Modulair 300 with Standard Bowl & Manual Drain, 3/8" NPTF, 150 PSI, 5.12 fl. oz. Capacity

• Designed to remove particulate material down to 5 micron from the airstream to protect downstream equipment
• Filter with superior removal of free water up to 98% efficiency
• Coalescing-filter designed to remove particulate material 99.98% of free oils and solid contaminants 0.01 micron and larger
• Coalesing-filter with differential pressure gauge to indicate when coalescing filter element needs changing
• Superior pressure regulation — diaphragm type regulator
• Self-relieving design
• Outlet Pressure

Specifications:
Connection Size: 3/8" NPTF
Max. PSI: 150 PSI
Bowl Material: Polycarbonate
Bowl Capacity: 5.12 fl. oz.
Ambient/Media Temperature (Standard Bowl): 4 to 52 °C
Inlet Pressure (Standard Bowl With Manual Drain): 0-150 PSI
Outlet Pressure: Adjustable up to 100 PSI
Filtration: (F) 5 micron, (Fc) 0.01 micron
Standard Bowl: Polycarbonate with Nylon Shatterguard
