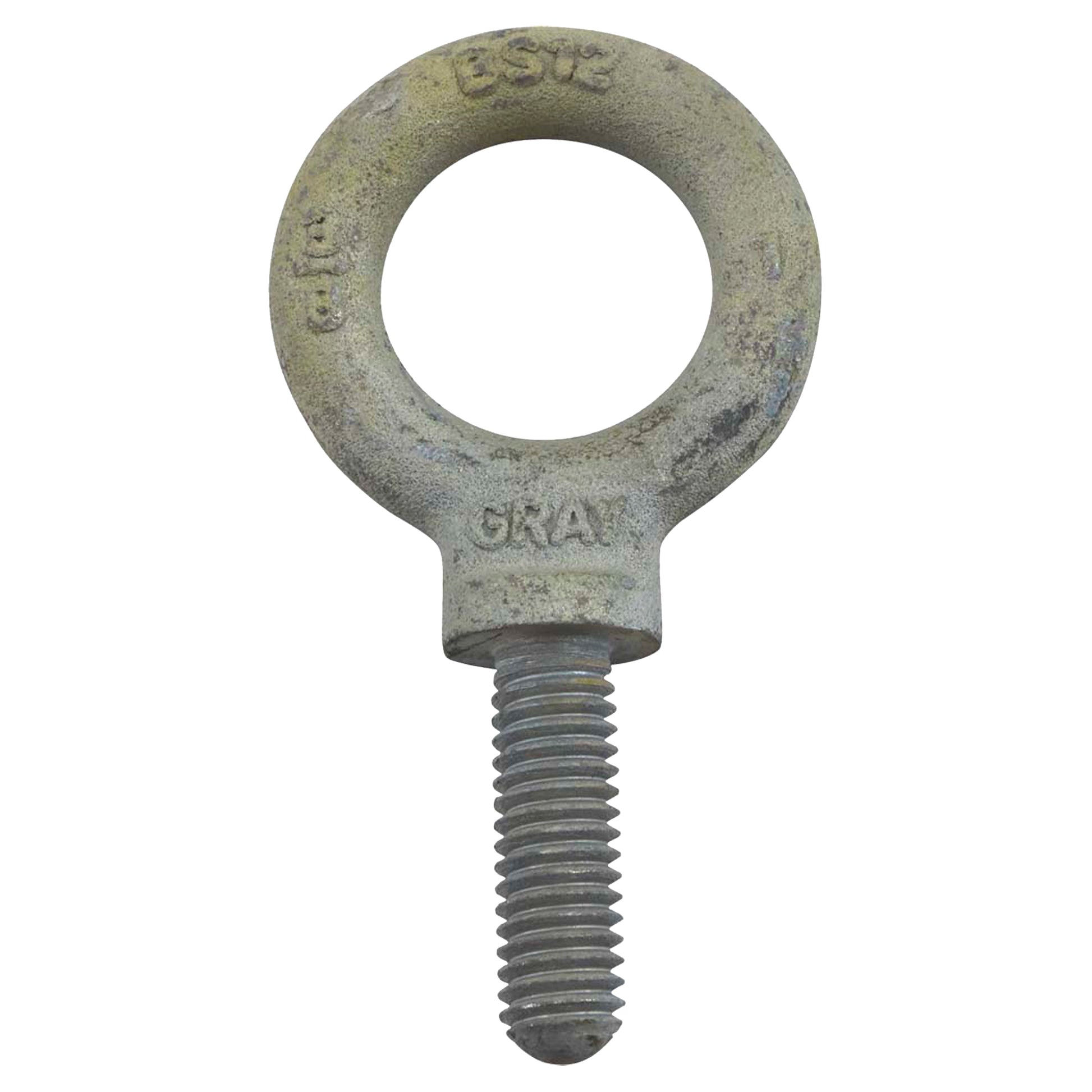

Eye Bolt, 4-1/16" Dia., 2-3/4" L, Uncoated Natural Finish, 17000 lbs. (8.5 tons) Capacity

• Never apply loads greater than rated capacity
• Safety Warning: Load should never be applied at more than a 45 degree angle from the bolt centerline
• Safety Warning: The rated capacity is reduced to 25% when the load is applied at a 45 degree angle to the eyebolt centerline
• I.D. Eye

Specifications:
Working Load Limit: 17000 lbs. (8.5 tons)
Finish: Uncoated Natural Finish
Eye Diameter: 4-1/16"
Shank Length: 2-3/4"
Body Style: With Shoulder
Shank Threading: Fully Threaded
I.D. Eye: 2"
O.D. Eye: 4-1/16"
Thread Size, UNC-2A: 1-1/8" - 7"
Overall Dimensions: 7-21/32" L x 4-5/32" W x 2-3/16" H
Weight: 3.4 lbs.
