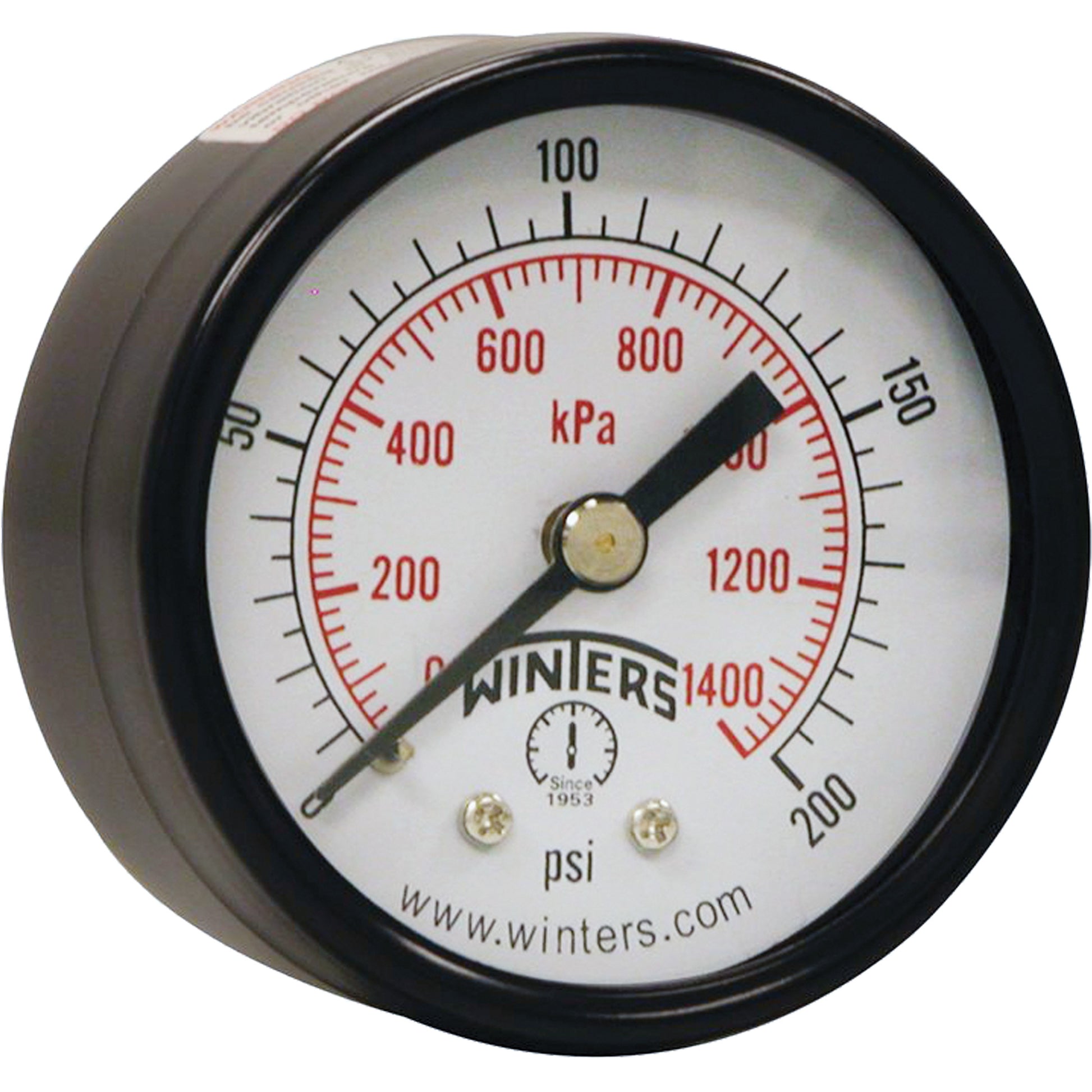

Economy Pressure Gauge, 2" , 0 - 200 psi, Back Mount, Analogue
Economy Pressure Gauge, 2" , 0 - 200 psi, Back Mount, Analogue est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Delivery and Shipping
Delivery and Shipping
Once your order is confirmed, an Estimated Time of Arrival (ETA) will be sent separately via email.
Economy Pressure Gauge, 2" , 0 - 200 psi, Back Mount, Analogue
Description
Description
• Economical, all-purpose pressure gauge with brass wetted parts
• Friction bezel rings
• Black steel case
• ASME B40.100 compliant and CRN registered
• Also measures in kilopascals (kPa)
• Applications include plumbing, heating, air conditioning, pneumatics, hydraulics, water tanks, air compressors, water systems, and non-clogging and non-corroding media
• Manufacturer's Warranty
Specifications:
Dial Diameter: 2"
Pressure Range: 0 - 200 psi
Connection: Back Mount
Dial Type: Analogue
Connection Thread: 1/4" NPT
Accuracy: ±3-2-3% ANSI/ASME Grade B
Manufacturer's Warranty: 5 Years
IP Rating: IP52
Bourdon Tube Material: Phosphor Bronze
Working Pressure: Maximum 75% of Full Scale Value
Ambient/Process Temperature: -40 to 150°F (-40 to 65°C)
Over-Pressure Limit: 25% of Full Scale Value
