FLIR

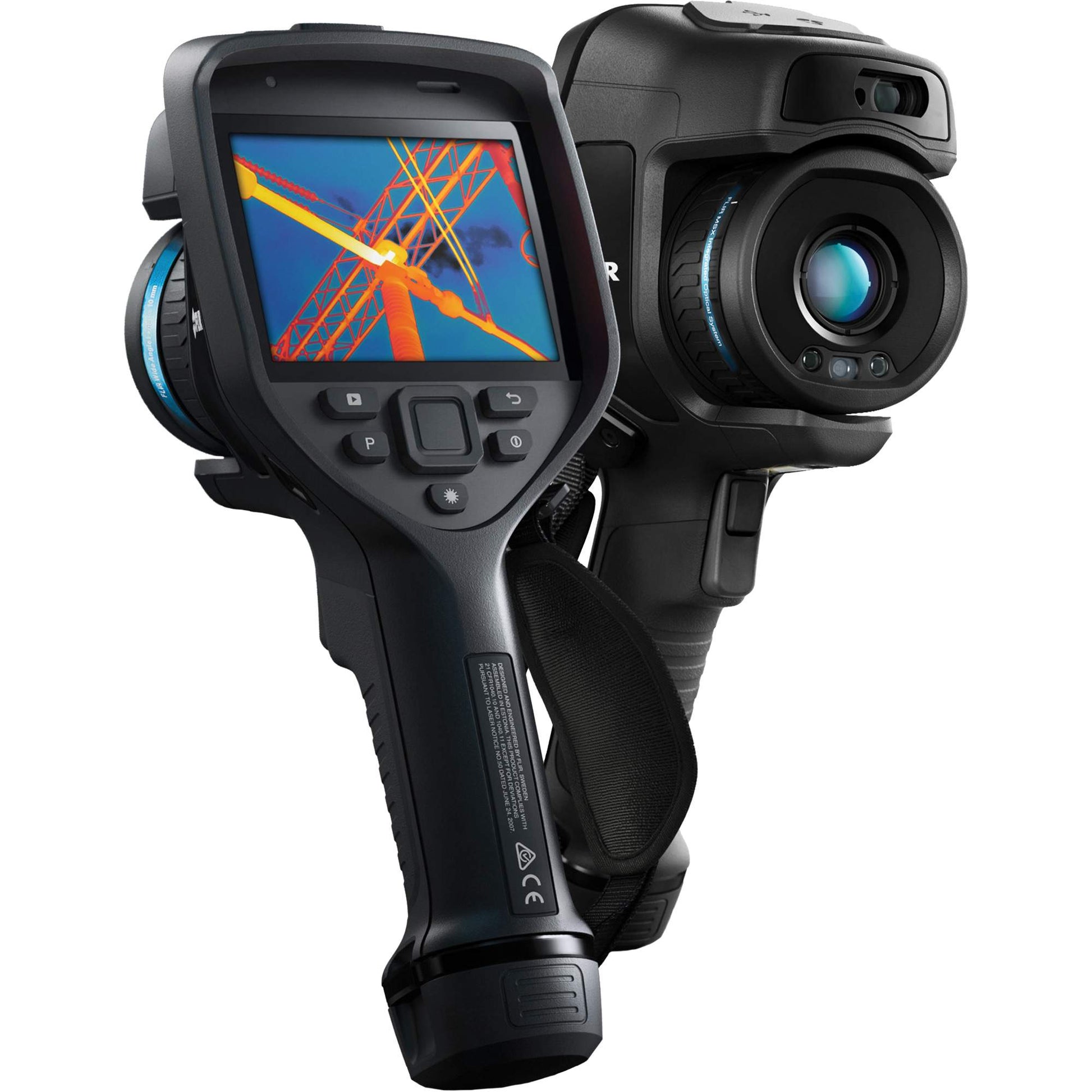

Caméra thermique avancée E96 avec objectifs 14°, 24° et 42°, 640 x 480 pixels, -20° - 1500°C (-4° - 2732°F), 30 mK/40 mK/50 mK
Caméra thermique avancée E96 avec objectifs 14°, 24° et 42°, 640 x 480 pixels, -20° - 1500°C (-4° - 2732°F), 30 mK/40 mK/50 mK
Impossible de charger la disponibilité du service de retrait
• The FLIR E96 is our first pistol-grip camera with 640 × 480 thermal resolution so inspectors can survey high-voltage, hazardous targets safely and quickly diagnose electrical and mechanical failures
• Offers complete coverage of near and distant targets through a range of lens options
• Pair the E96 with a FLIR FlexView™ dual field-of-view lens to instantly switch from wide-area to telephoto scanning in one push of a button
• The onboard FLIR Inspection Route runs pre-planned routes to help inspectors stay organized when surveying large or multiple locations
• FLIR Ignite provides automatic uploading of E96 images directly from the camera to the cloud for easy, secure storage and sharing
• The 640 × 480 thermal resolution plus FLIR UltraMax® and MSX® image enhancement ensure the E96 produces the most vibrant, easiest-to-interpret images in its class
• Colour Palettes
Specifications:
Display Size: 4"
Display Type: Built-in
Resolution: 640 x 480 pixels
Thermal Sensitivity: 30 mK/40 mk/50 mK
Temperature Range: -20° - 1500°C (-4° - 2732°F)
Accuracy: ±2°C (±3.6°F) or ±2% of the Reading
Colour Palettes: Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava
Image Frequency: 30 Hz
Min. Focus Distance: 42°: 0.15 m, 24°: 0.15 m, 14°: 1 m
Spectral Range: 7.5-14 µm
Battery Operating Time: >2.5 hours at 25°C (68°F) & Typical Use
Battery Type: Rechargeable Li-ion Battery
Standard(s) Met: EN, UL, CSA, PSE 60950-1
