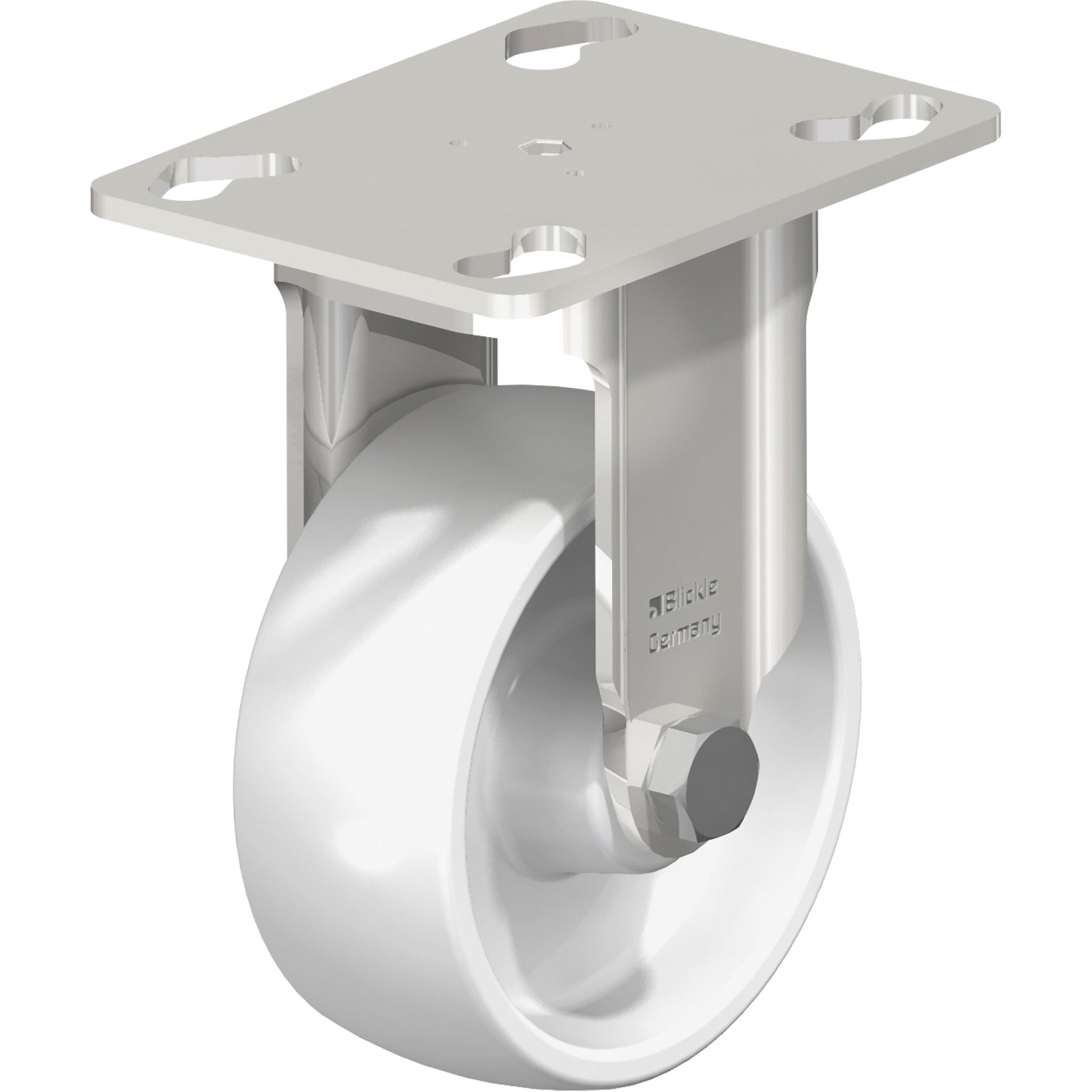

Caster, Rigid, 3-1/8" (79.5 mm), Nylon, 265 lbs. (120 kg.)

• Pressed steel rigid caster
• Medium heavy duty rigs, with top plate fitting
• High abrasion resistance
• Low rolling and swivel resistance for smooth running performance
• High chemical resistance to many aggressive substances
• Operating temperature: -15° F to +175° F
• Bolt Hole Spacing

Specifications:
Wheel Diameter: 3-1/8" (79.5 mm)
Capacity: 265 lbs. (120 kg.)
Wheel Material: Nylon
Caster Type: Rigid
Frame Material: Stainless Steel
Tread Width: 1-1/4" (31.75 mm)
Bolt Hole Spacing: 1-3/4" x 2-13/16" (44 mm x 71 mm) - 1-3/4" x 3-1/16" (44 mm 78 mm)
Bolt Hole Size: 5/16" (7.93 mm)
Plate Size: 2-1/2" x 3-5/8" (64 mm x 92 mm)
Tread & Tire Hardness: 85° Shore A
Bearing Type: Plain Bore
Total Height: 4-3/8"
