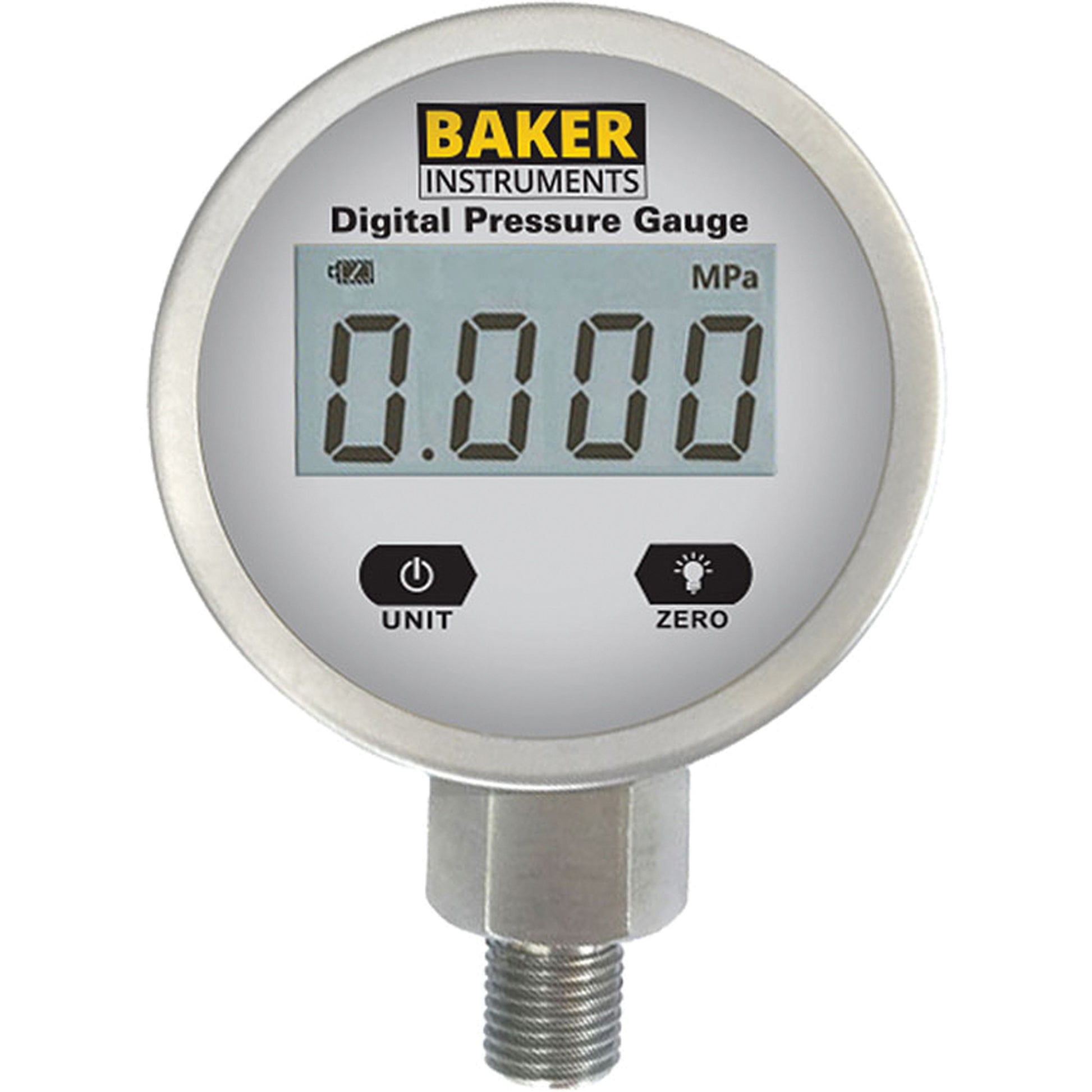

Manomètre série B5000, 2-1/2 po, 0 à 103,4 kPa/0 à 15 psi/0 à 416 po CE, montage inférieur, numérique

• This digital pressure gauge with integral bar graph features 1% accuracy, backlighting for easy reading, and up to 7 selectable engineering units, allowing one gauge to be used in a variety of pressure applications
• Displays real-time pressure with short response times and excellent long-term stability
• The all stainless steel wetted parts make this gauge suitable for a wide variety of industrial liquids and gaseous mediums
• Compatible with air, liquids, and gases
• 4-digit LCD display with backlight provides clear readings
• Push-button zero
• Accuracy

Specifications:
Dial Diameter: 2-1/2"
Pressure Range: 0 - 103.4 kPa/0 - 15 psi/0 - 416 in. w.c.
Connection: Bottom Mount
Dial Type: Digital
Additional Measuring Ranges: 0 - 1.055 kgf/cm², 0 - 30.5 inHg, 0 - 1034 mbar, 0 - 0.103 Mpa
Resolutions: 0.01 psi, 0.001 kgf/cm², 0.1 inHg, 0.1 kPa, 1 in. w.c., 1 mbar, 0.001 Mpa
Accuracy: 1% F.S.
Long-Term Stability: 0.5% F.S./Year
Sampling Rate: 3x/Sec.
Overload Capacity: 150%
Process Connection: 1/4" Male NPT
Display: 4 Digit Backlit LCD
IP Rating: IP64
