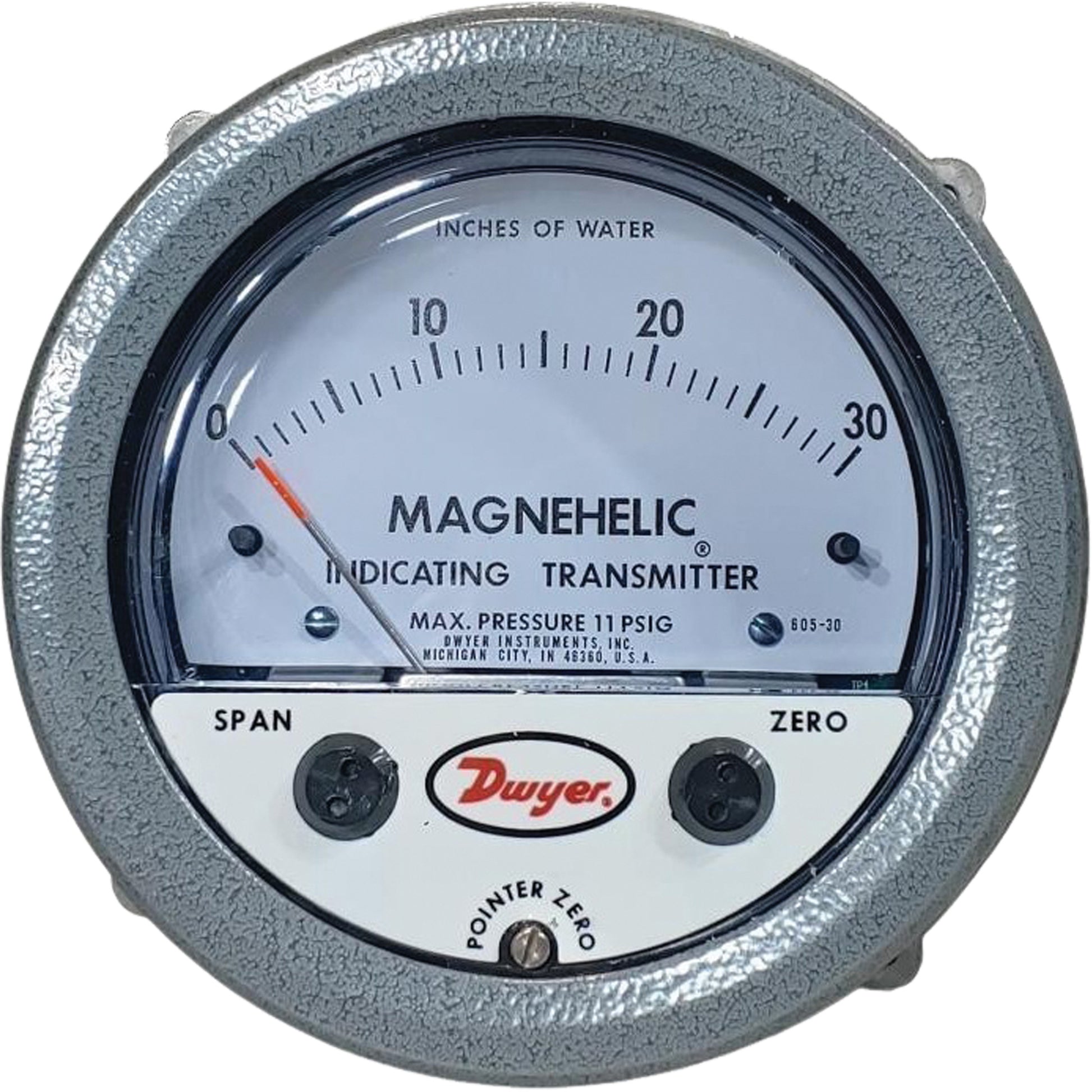

605 Series Magnehelic® Differential Pressure Gauge & Indicating Transmitter, 4" , 0 - 30 in. w.c., Panel Mount, Analogue

• Provides for both visual monitoring and electronic control of very low differential pressure
• Ideal for control applications in building HVAC systems where local indication is desired during routine maintenance checks or necessary when troubleshooting the system
• Easy-to-read dial gauge is complimented by the two-wire, 4-20 mA control signal utilizing the time-proven Dwyer® Magnehelic® gauge mechanical design and Series 600 transmitter technology
• The two-wire design with terminal strip on the rear simplifies connection in any 4-20 mA control loop powered by a 10-35 VDC supply
• Services air and non-combustible, compatible gases
• Gauge Stability

Specifications:
Dial Diameter: 4"
Pressure Range: 0 - 30 in. w.c.
Connection: Panel Mount
Dial Type: Analogue
Maximum Pressure: 11 psi
Gauge Accuracy: +/-2%
Gauge Stability: ±1% F.S./yr.
Gauge Pressure Limits:
Transmitter Accuracy: +/-0.5%
Connection Thread: 1/8" NPT Female
Gauge Certification(s): CE
Temperature Limits: 20 to 120°F (-6.67 to 48.9°C)
Transmitter Compensated Temperature Range: 32 to 120°F (0 to 48.9°C)
