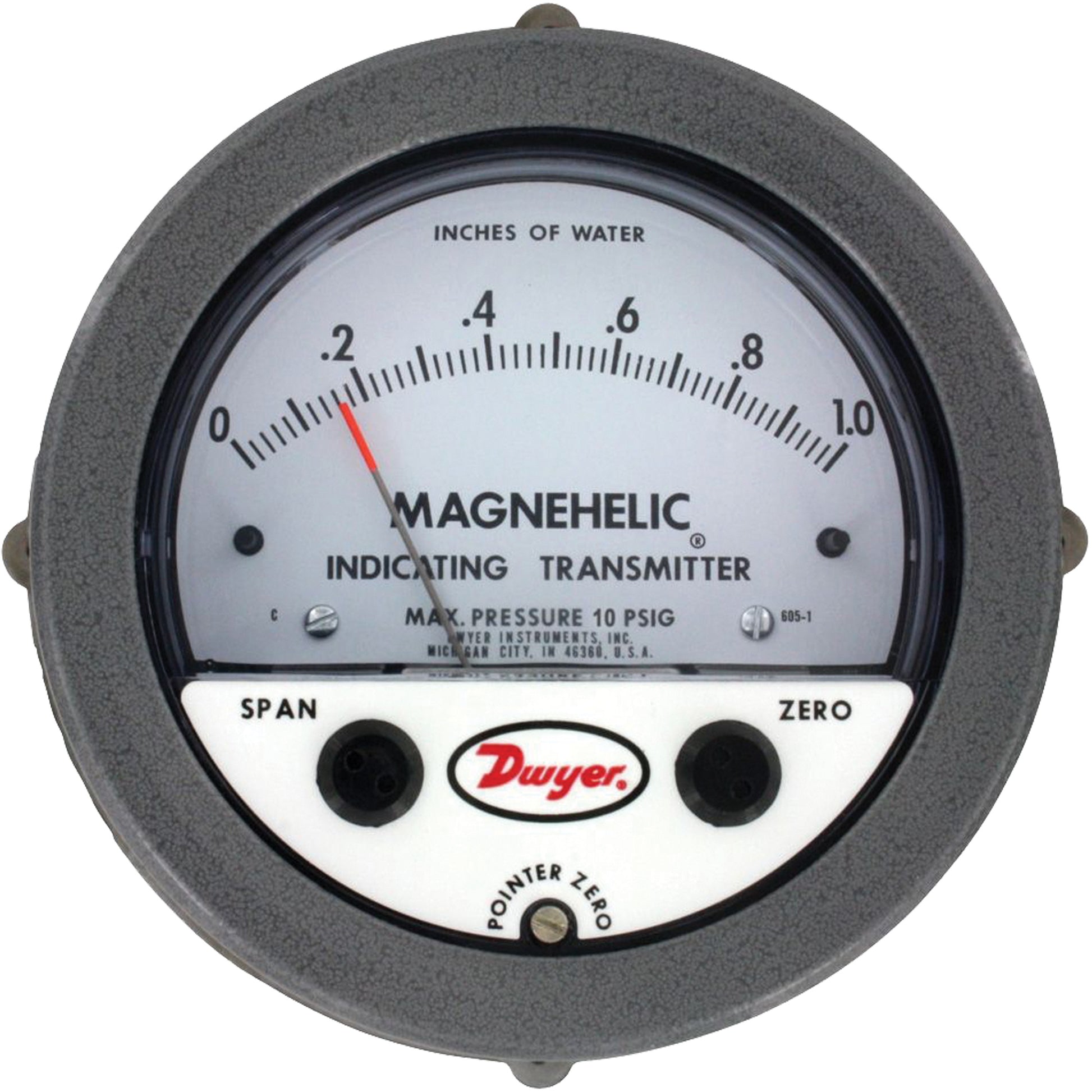

605 Series Magnehelic® Differential Pressure Gauge & Indicating Transmitter, 4" , 0 - 1.5 kPa, Panel Mount, Analogue

• Provides for both visual monitoring and electronic control of very low differential pressure
• Ideal for control applications in building HVAC systems where local indication is desired during routine maintenance checks or necessary when troubleshooting the system
• Easy-to-read dial gauge is complimented by the two-wire, 4-20 mA control signal utilizing the time-proven Dwyer® Magnehelic® gauge mechanical design and Series 600 transmitter technology
• The two-wire design with terminal strip on the rear simplifies connection in any 4-20 mA control loop powered by a 10-35 VDC supply
• Services air and non-combustible, compatible gases
• Gauge Stability

Specifications:
Dial Diameter: 4"
Pressure Range: 0 - 1.5 kPa
Connection: Panel Mount
Dial Type: Analogue
Maximum Pressure: 25 psi
Gauge Accuracy: ±3%
Gauge Stability: ±1% F.S./yr.
Gauge Pressure Limits: 25 psi (1.7 bar)
Transmitter Accuracy: +/-2%
Connection Thread: 1/8" NPT Female
Temperature Limits: 20 to 120°F (-6.67 to 48.9°C)
Transmitter Compensated Temperature Range: 32 to 120°F (0 to 48.9°C)
Transmitter Thermal Effect: ±0.025% F.S./°F (0.045% F.S./°C)
