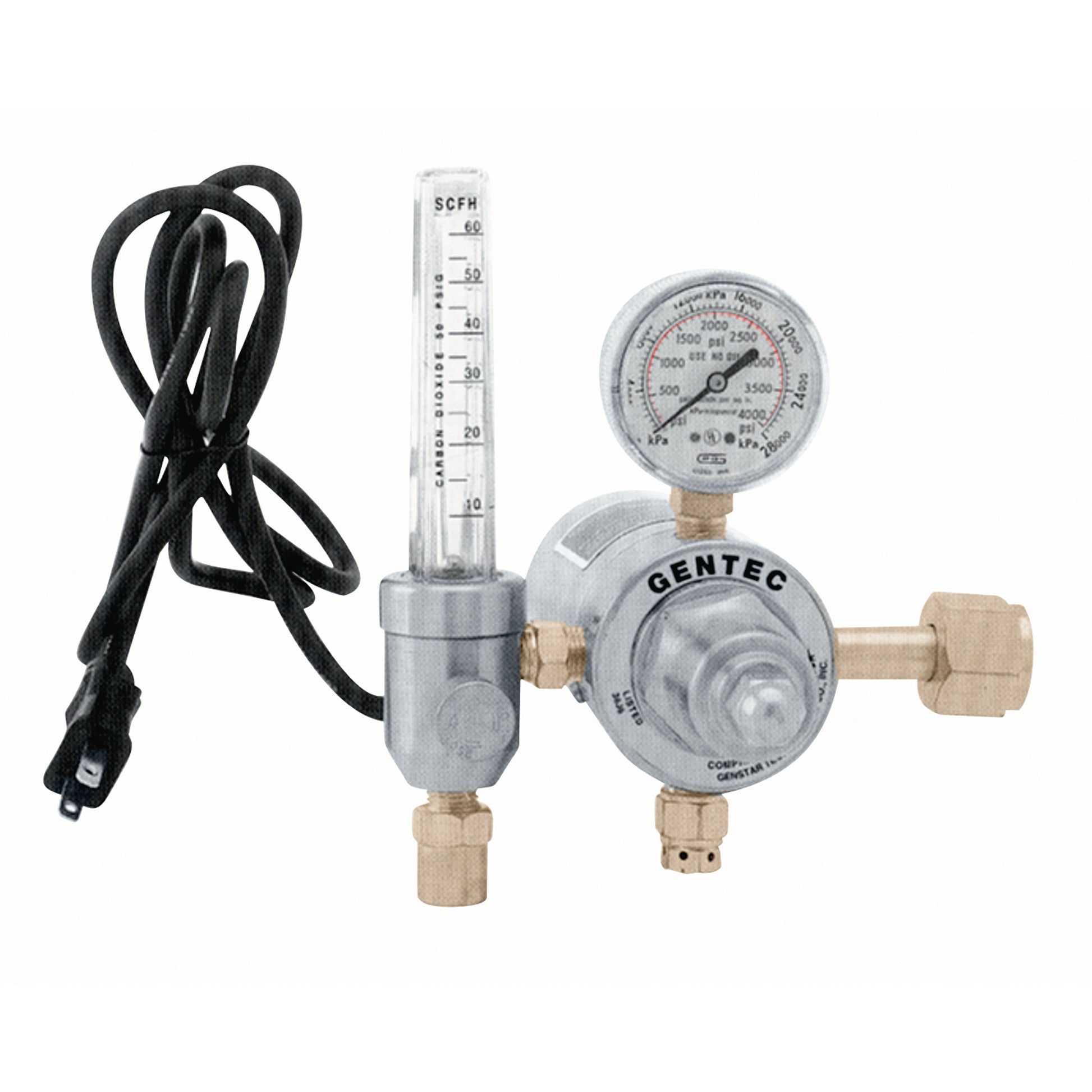

198CD Electrically Heated Regulator/Flowmeter for Carbon Dioxide, Carbon Dioxide, CGA320 Inlet

• Designed for applications requiring extremely high gas flow rates
• Built-in, thermostatically-controlled electric heater keeps the carbon dioxide warm, allowing for continuous duty cycle without freezing
• 110 VAC/190 W heater is standard
• 0-60 SCFH flowmeter is backpressure compensated to ensure accurate reading when line restrictions are present
• Forged brass body and housing cap with sintered bronze inlet filter Caution: Use this regulator only with non-siphoned standard carbon dioxide cylinders

Specifications:
Gas Service: Carbon Dioxide
Inlet Connection: CGA320
Max Delivery Pressure (PSI): 50 (Preset)
Inlet Gauge: 2", 4000 PSI
Flowmeter (SCFH): 60
Outlet Connection: 5/8"-18 RH (F)
