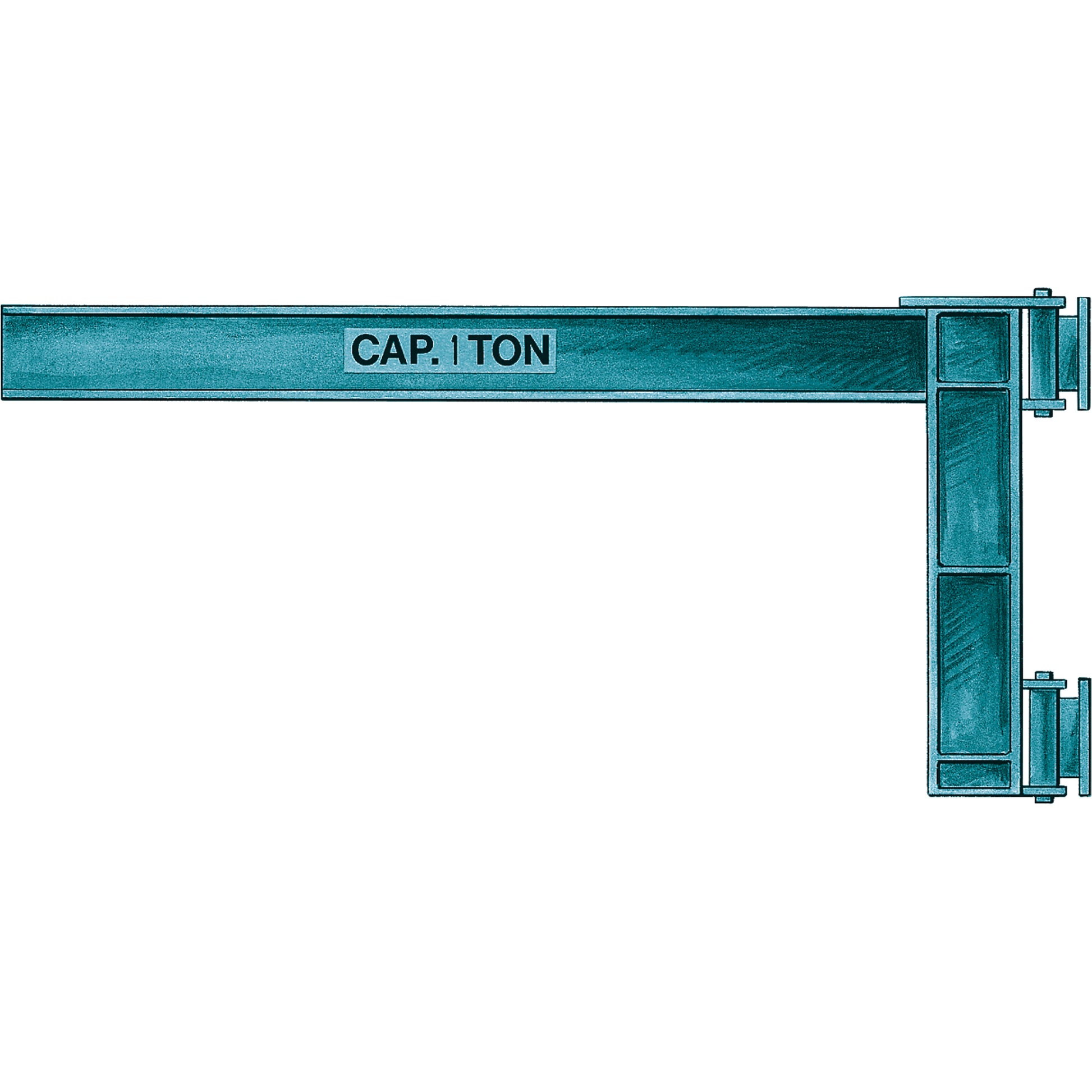

Wall Jibs, H Beam, 4-5/8" Flange Width, 2000 lbs. (1 tons) Capacity

• Mount at any height on a wall, column or building support
• Wall mounting gives 180° rotation, column mounting provides 220° of rotation
• Equipped with end stops to limit trolley travel
• H-Beams use flat-wheel trolleys; I-Beams use taper-wheel trolleys
• Cantilever design is ideally suited for mounting applications where headroom is limited
• F.O.B. Vaudreuil, Quebec
• Weight

Specifications:
Max. Capacity: 2000 lbs. (1 tons)
Flange Width: 4-5/8"
Beam Type: H
Dimensions A: 12'
Dimensions B: 10"
Dimensions C: 45"
Weight: 435 lbs.
