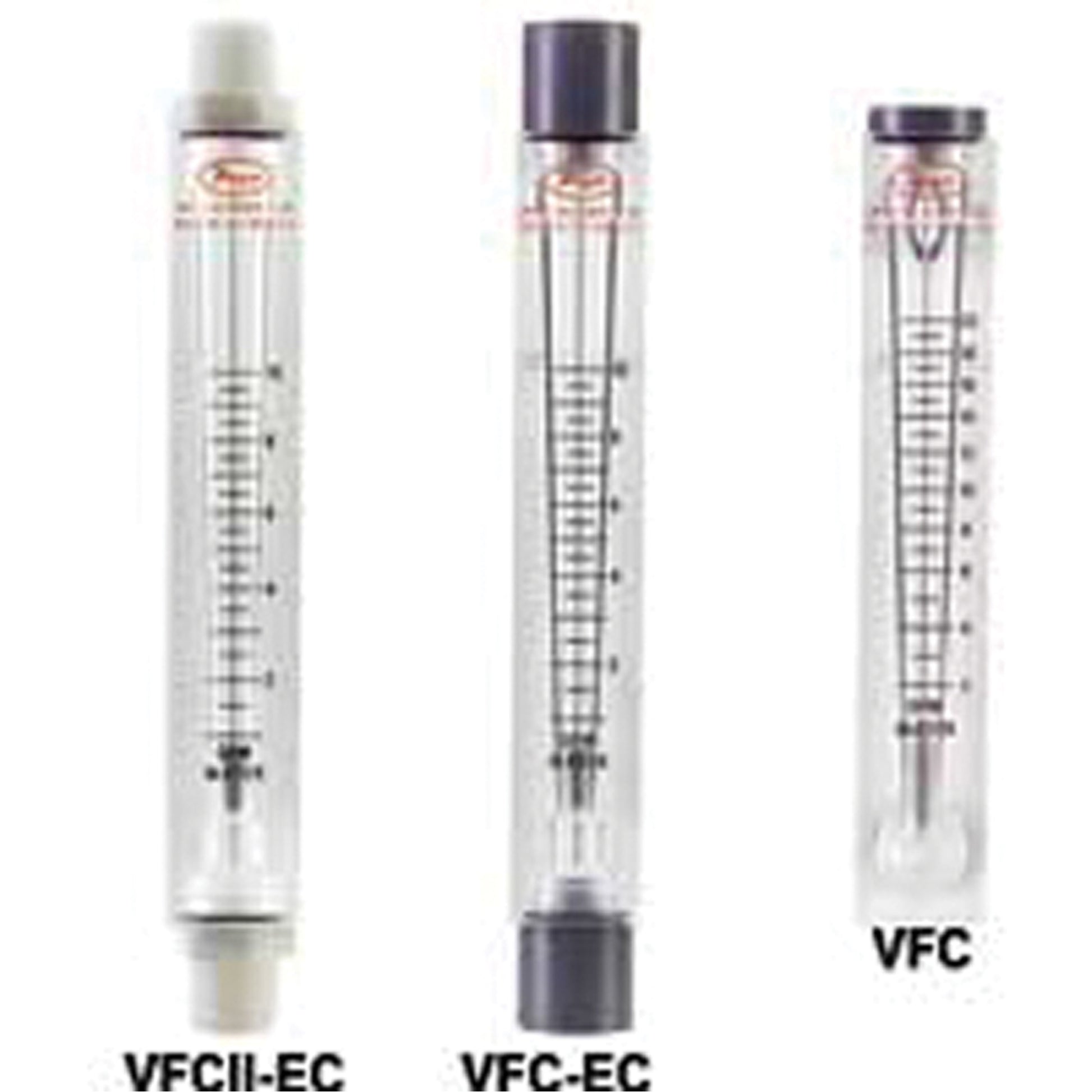

Medidor de flujo en línea VFC - Escala de 2" (sin válvula), tubo

• Cut and precision machined from solid, clear acrylic plastic bodies that permit complete visual inspection. Tapered bore is precision machined to a smooth surface that also provides perfect visibility of the indicating float;
• VFC models are provided with PVC connections tapped for 1"NPT thread ;
• All models have Buna-N O-ring seals for leak proof connections for maximum installation versatility;
• VFC models, intended for use with external metering valves, are equipped with a large diameter stainless steel guide rod and a specially designed stainless steel float to provide excellent float stability at the high flow ranges;
• 100 PSI maximum pressure rating;
• VFC models have a maximum temperature rating of 120°F

Specifications:
Display: Tube
Flow Range: 10 to 100 scfm
Material: Acrylic Plastic
Type: Air
