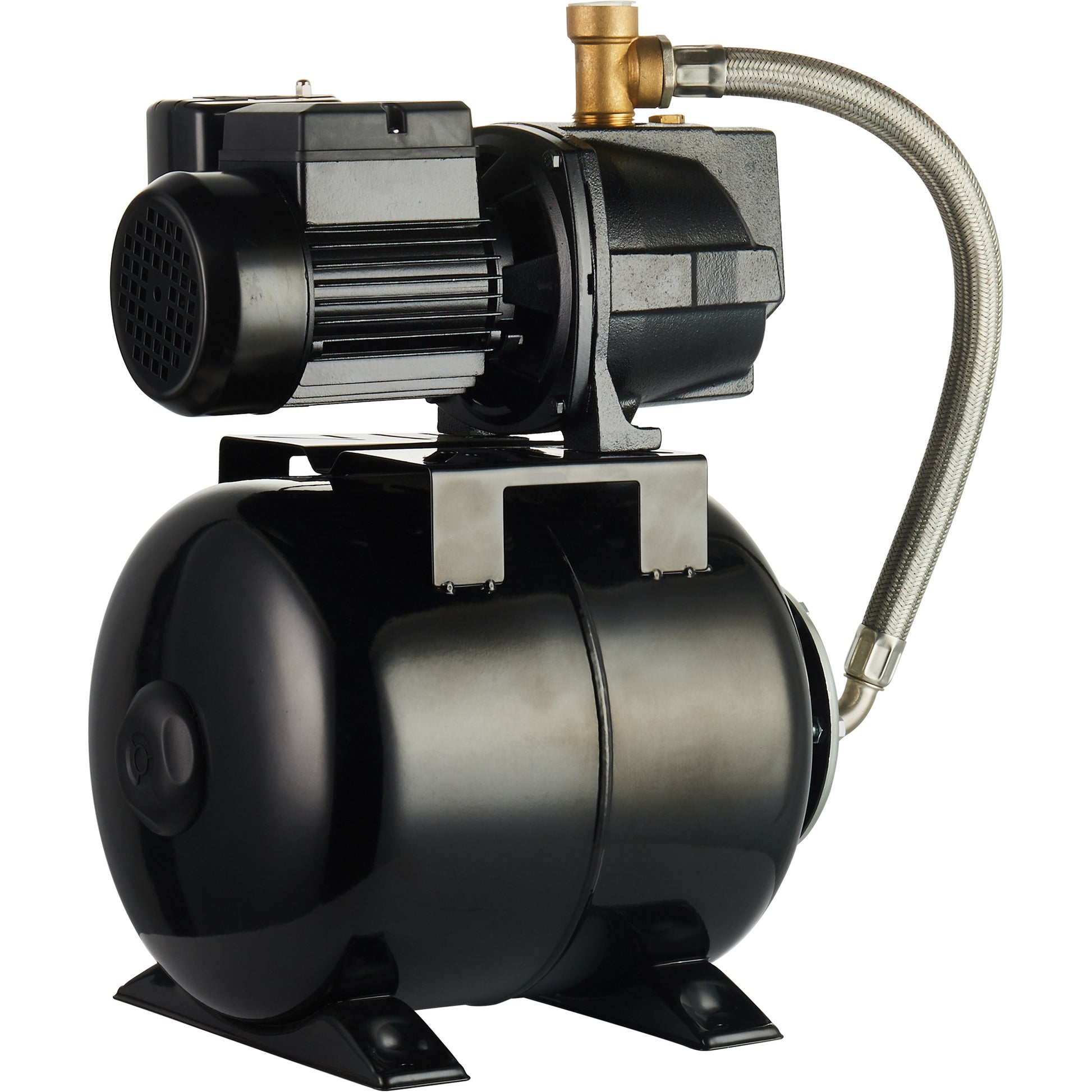

Shallow Well Jet Pump C/W Pressure Tank, 115 V/230 V, 790 GPH, 1/2 HP

• Durable cast iron pump body
• Built-in automatic thermal overload protection
• For use on shallow well applications up to 25' water level
• Fully automatic water supply complete with 6-gallon tank
• Dedicated priming port for volute filling
• Inlet Diameter

Specifications:
Motor: 1/2 HP
Max. Flow Rate: 790 GPH
Voltage: 115 V/230 V
Suction Head: 147'
Manufacturer's Warranty: 2 years
Discharge Diameter: 1" NPT
Inlet Diameter: 1-1/4"
Seal Design: Mechanical Seal
Seal Material: Graphite & Ceramic
Expected Life Cycle: On 2 sec. Off 2 sec. 300,000 cycles
Motor Wires: Copper
Certification: CSA
Amperage: 6.6/3.3 A
