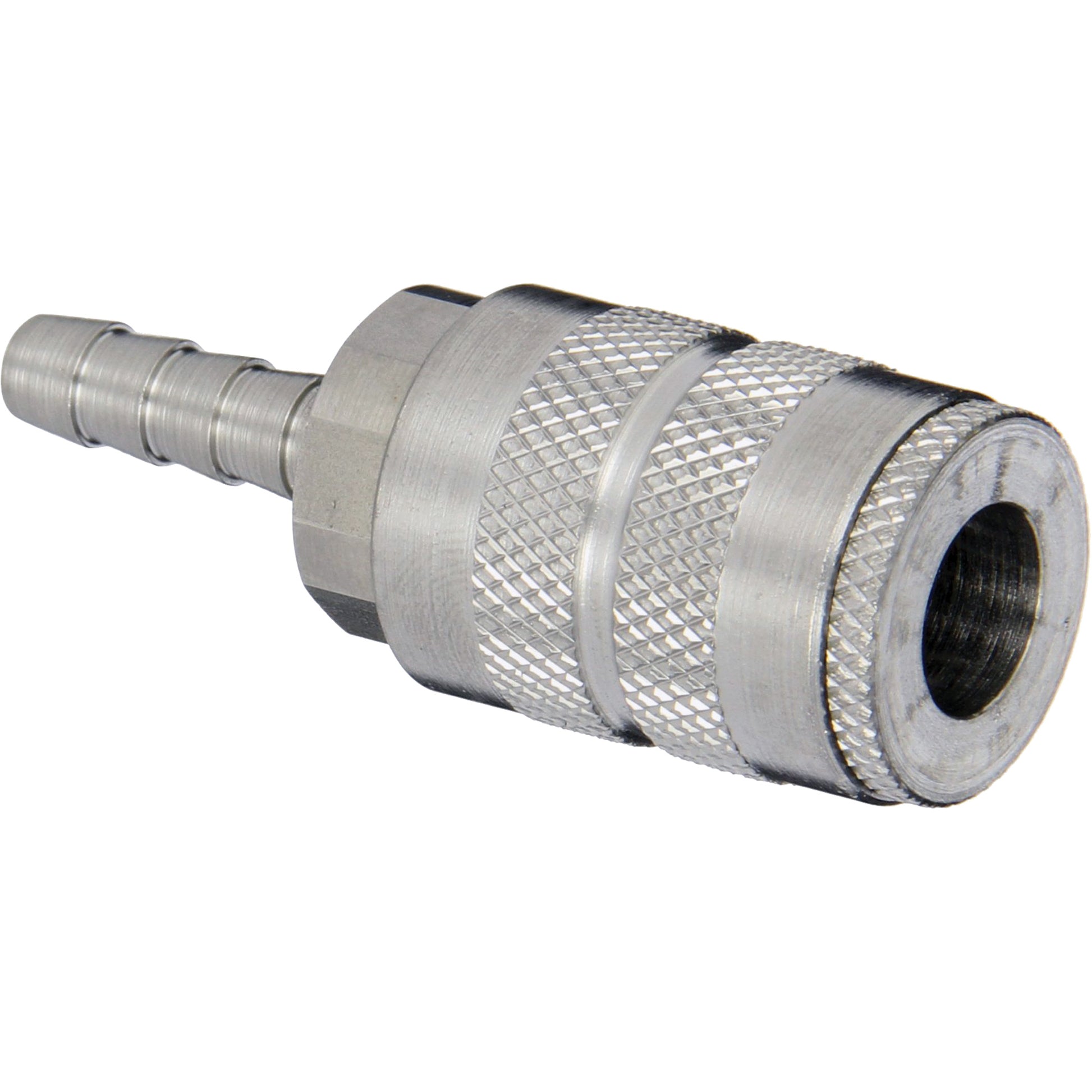

Pneumatic Manual Standard Hose Barb Coupler, Steel, Type F, 1/4", 500 psi

• Machined components are manufactured using solid bar stock
• Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life
• Nitrile (Nitrile Rubber) seals are standard
• Steel componentry is plated using ROHS Compliant Trivalent Chrome
• Steel sleeve and steel tubular valve
• Maximum Outer Diameter

Specifications:
Material: Steel
Type: Type F
Coupler Size: 1/4"
Thread: None
Maximum Operating Pressure: 500 psi
Maximum Burst Pressure: 6500 PSI
Maximum Outer Diameter: 0.88"
Temperature Range: -40°F to 250°F (-40°C to 121°C)
Length: 6.53"
Hose Inner Diameter: 1/4"
Hex: 3/4"
Compatible With: Foster 3, 4, 5 & 6 Series, Parker 20-Series Manual Interchange, Hansen 1000, 400 & 500
