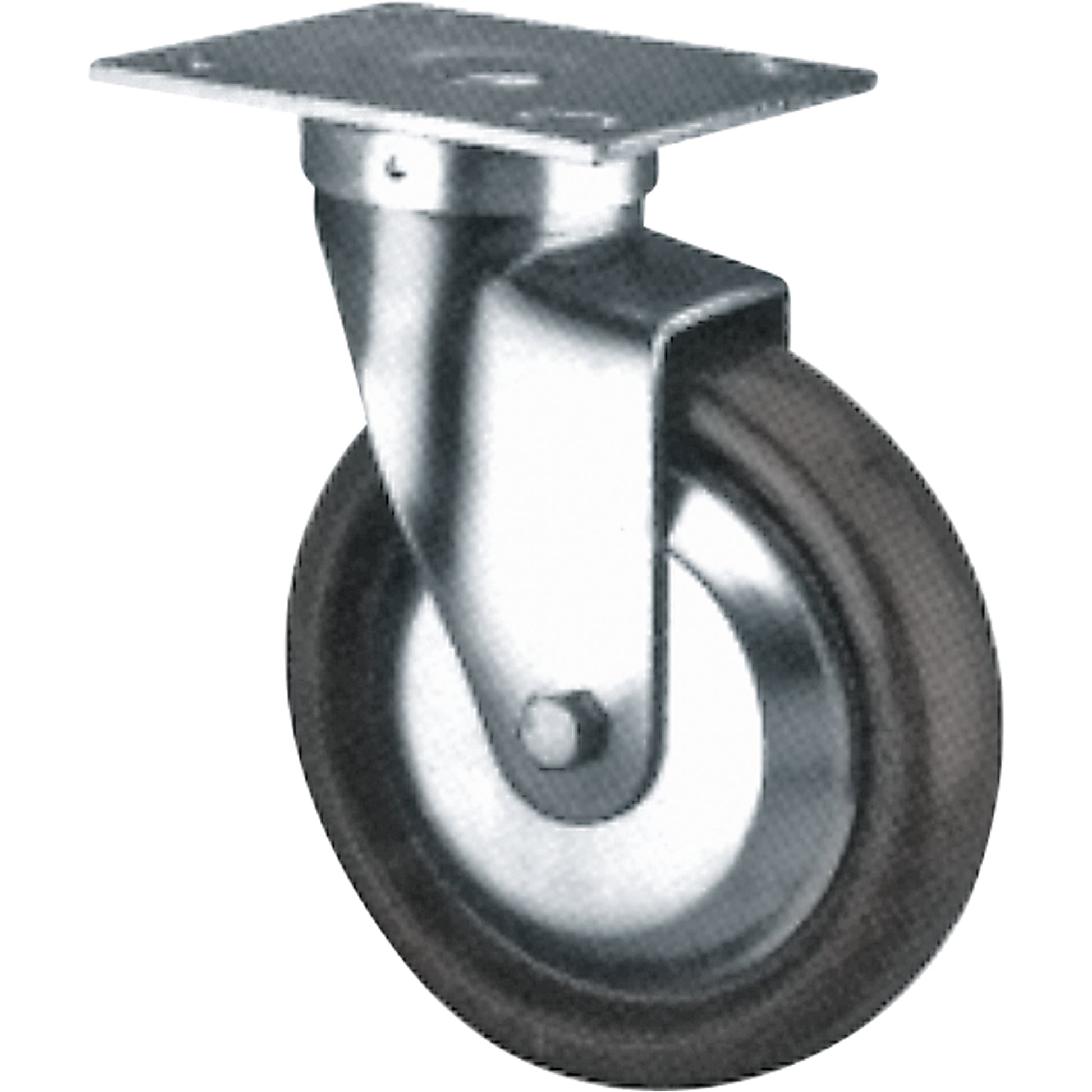

Medium/Heavy-Duty Caster, Swivel, 3" (76 mm), Solid Elastomer, 500 lbs. (227 kg.)

• 9/16" rivet
• 3/8" axle
• Thread guards standard on wheels
• Double row ball bearing swivel; both raceways equal diameter
• All swivel parts case hardened to Rockwell 62C
• Bright zinc finish
• Bolt Hole Spacing
• Material handling carts

Specifications:
Wheel Diameter: 3" (76 mm)
Capacity: 500 lbs. (227 kg.)
Wheel Material: Solid Elastomer
Caster Type: Swivel
Frame Material: Steel
Tread Width: 1-3/8" (35 mm)
Bolt Hole Spacing: 2-5/8" - 3" (67 mm x 76 mm) - 3" - 3-5/8" (76 mm - 92 mm)
Bolt Hole Size: 3/8" (9.52 mm)
Plate Size: 4" x 4-1/2" (102 mm x 114 mm)
Bearing Type: Precision Ball
Swivel Radius: 3"
Overall Height: 4.625"
