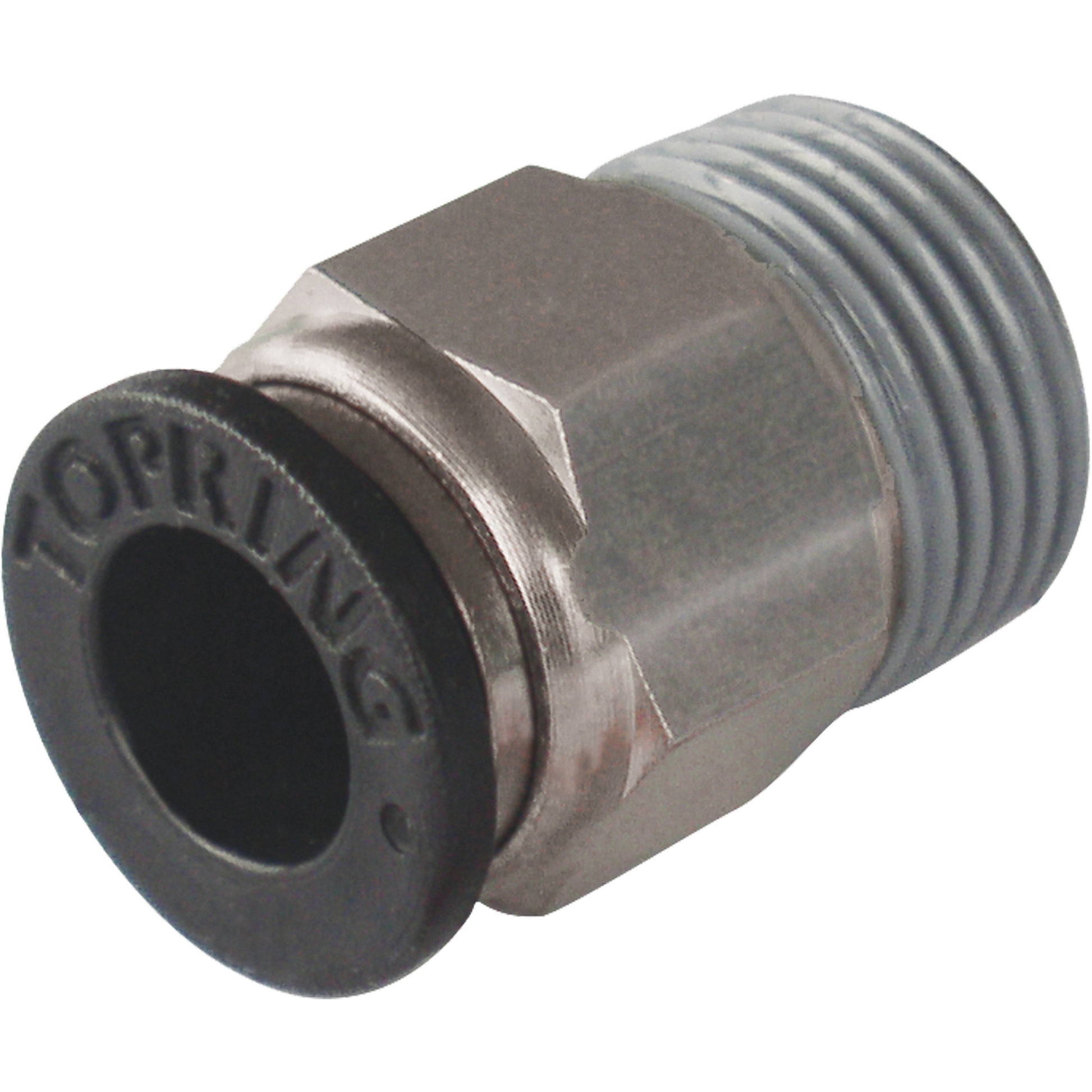

Conector macho recto Maxfit

• One-piece quick connect fitting saves over 75% of assembly time compared to standard compression fittings
• Compact design allows fittings to be closely mounted
• No part of the fitting goes inside the tubing, and the unrestricted tubing I.D. allows for maximum airflow
• Wide release collar allows fast and trouble-free tubing removal
• Designed for fast assembly, disassembly and reassembly without tools
• Designed for multiple connections and disconnections with leak-free operations and solid tubing gripping
• Release Collar Material
• Corrosion-resistant threaded fittings made of nickel-plated brass

Specifications:
Material: Plastic
Diameter: 1/2" x 3/8"
Connection Type: PTC
Thread: NPT Male
Working Temperature Range: 5°C - 60°C
Maximum Working Pressure: 150 PSI
Release Collar Material: Polyacetal Resin
Threaded Body Material: Nickel-Plated Brass
Lock Claws Material: Stainless Steel
O-Ring Material: Nitrile Rubber
Needle Material: Nickel-Plated Brass
Lock Nut Material: Aluminum
