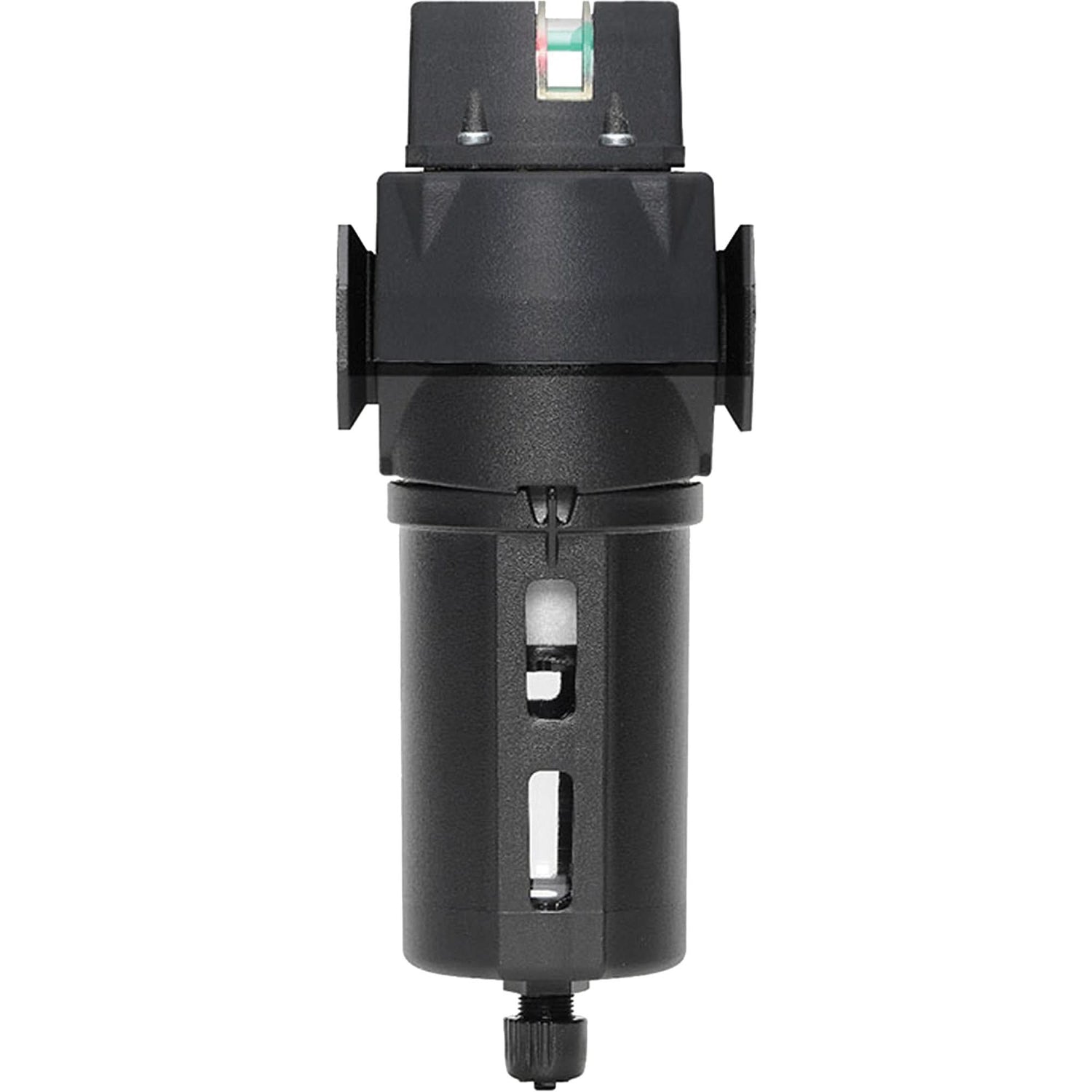

Manual Drain Coalescing Filter with Standard Bowl Modulair 300, In Line/Modular, 1/4" NPT, Manual Drain, For Oil

• High performance
• Designed to remove particulate material 99.98 % of free oil and solid contaminants 0.01 micron and larger
• Features modular or in line mounting capabilities
• Differential pressure gauge to indicate when filter element needs changing
• Front mounted clamping design with encapsulated screws
• Features recyclable, biodegradable, and/or recycled content
• Ambient Temperature

Specifications:
Connection Size: 1/4" NPT
Max. PSI: 150 PSI
Drain Type: Manual
Type: In Line/Modular
Material Filtered: Oil
Filtration Size (Microns): 0.01 Microns
Ambient Temperature: 4 to 52 °C
Bowl Capacity: 151 ml
Bowl Material: Polycarbonate, Nylon Shatterguard
