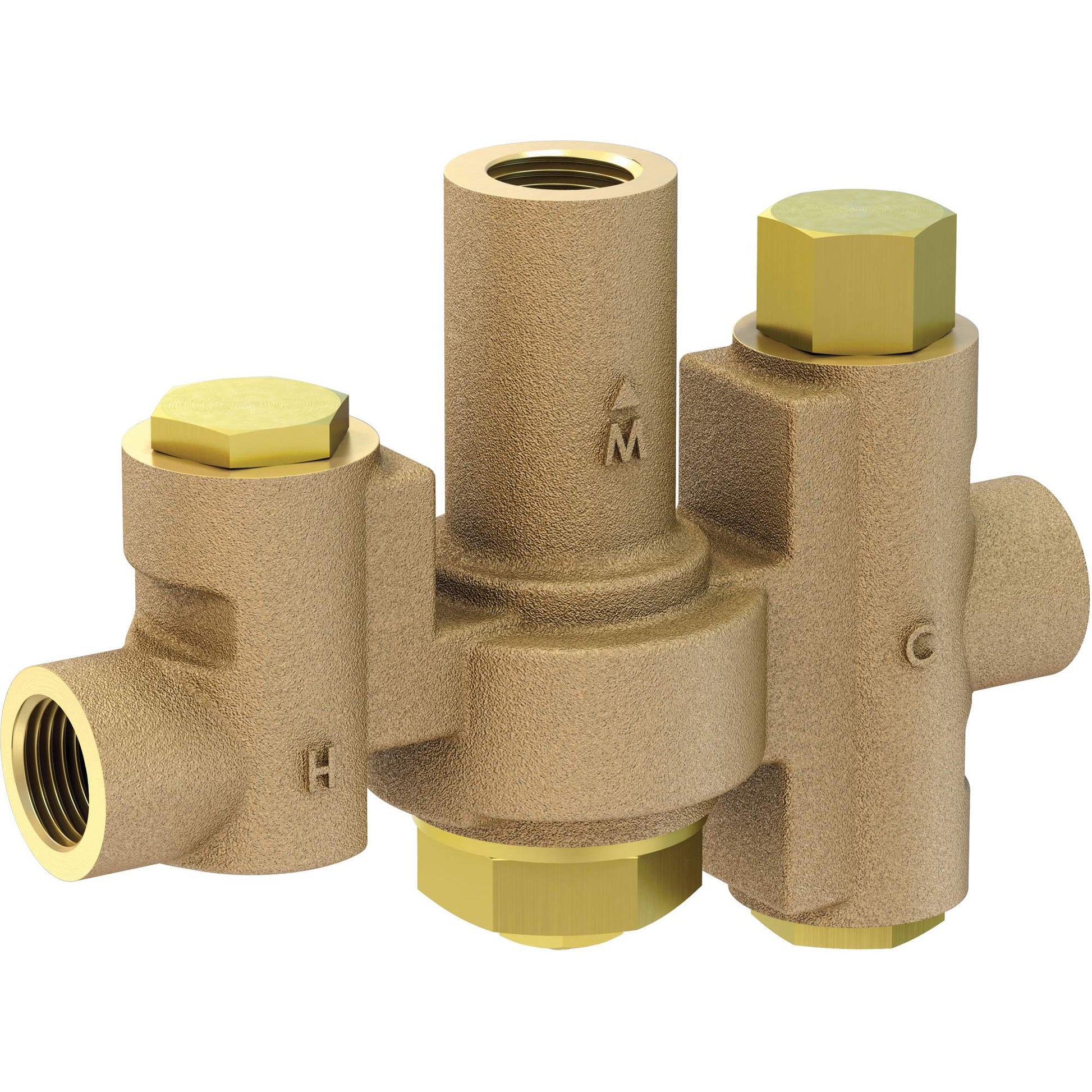

Low Capacity Thermostatic Mixing Valve for Individual Eye/Face Wash Stations, 2 - 35.1 GPM

• Positive hot water shut-off eliminates the delivery of scalding water to equipment
• Integral cold water bypass ensures reliable cold water delivery if hot water supply is interrupted
• Integral cartridge style checks with screens to prevent backflow and to filter debris entering the valve
• Certified to ASSE 1071 standards
• These valves blend hot and cold supply water to deliver tepid water (85°F / 29°C) to emergency equipment
• With a range of 2 to 9.8 GPM at 30 PSI (7.6 to 37.1 LPM at 2 BAR G), this low-capacity valve is sufficient for a single eyewash
• The valve can be installed into existing emergency shower applications and is easily tested and repaired

Specifications:
Gallons Per Minute (GPM): 2 - 35.1 GPM
Manufacturer's Warranty: 1 Year
Operating Pressure: 35 - 125 PSI
Water Inlet: 1/2" (F)
