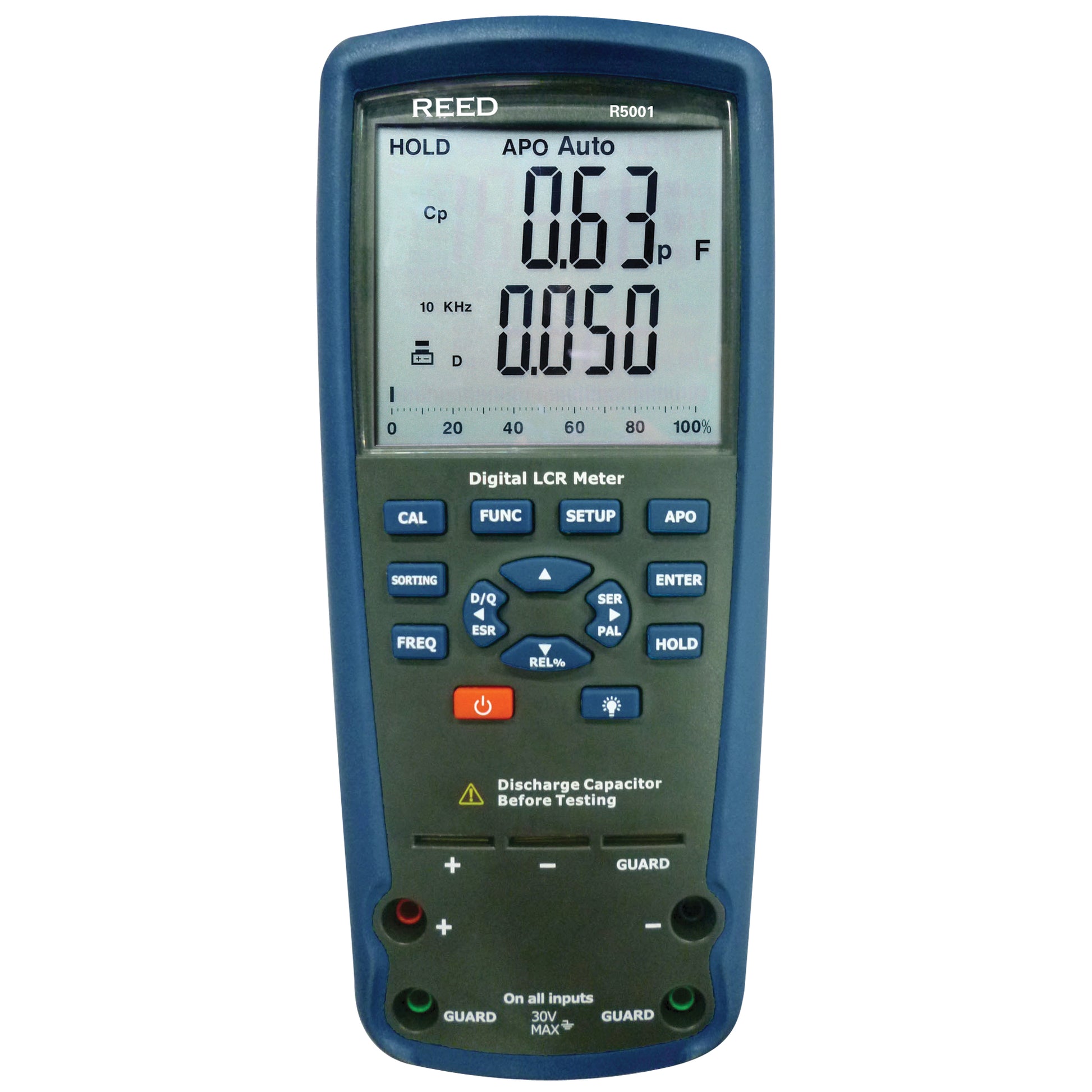

Medidor LCR con certificado ISO

• Autoranging operation for AC impedance and DE resistance measurement
• Auto LCR smart check and measurement
• Series/Parallel modes
• Ls/Lp/Cp with D/Q/Ø/ESR parameters
• Support DCR mode 200 to 200MO
• High accuracy with 4 or 5 terminal Kelvin measurement
• Dual display with backlight

Specifications:
Hand Held/Bench Model: Hand Held
Test Frequencies: 100/120/1k Hz 10k Hz 100k Hz
Test Signal Level: 0.5V AC RMS typical
Power Supply: 6 x 1.5V AA batteries
Dimensions: 8-19/32 x 3-11/16" x 2-13/32"
