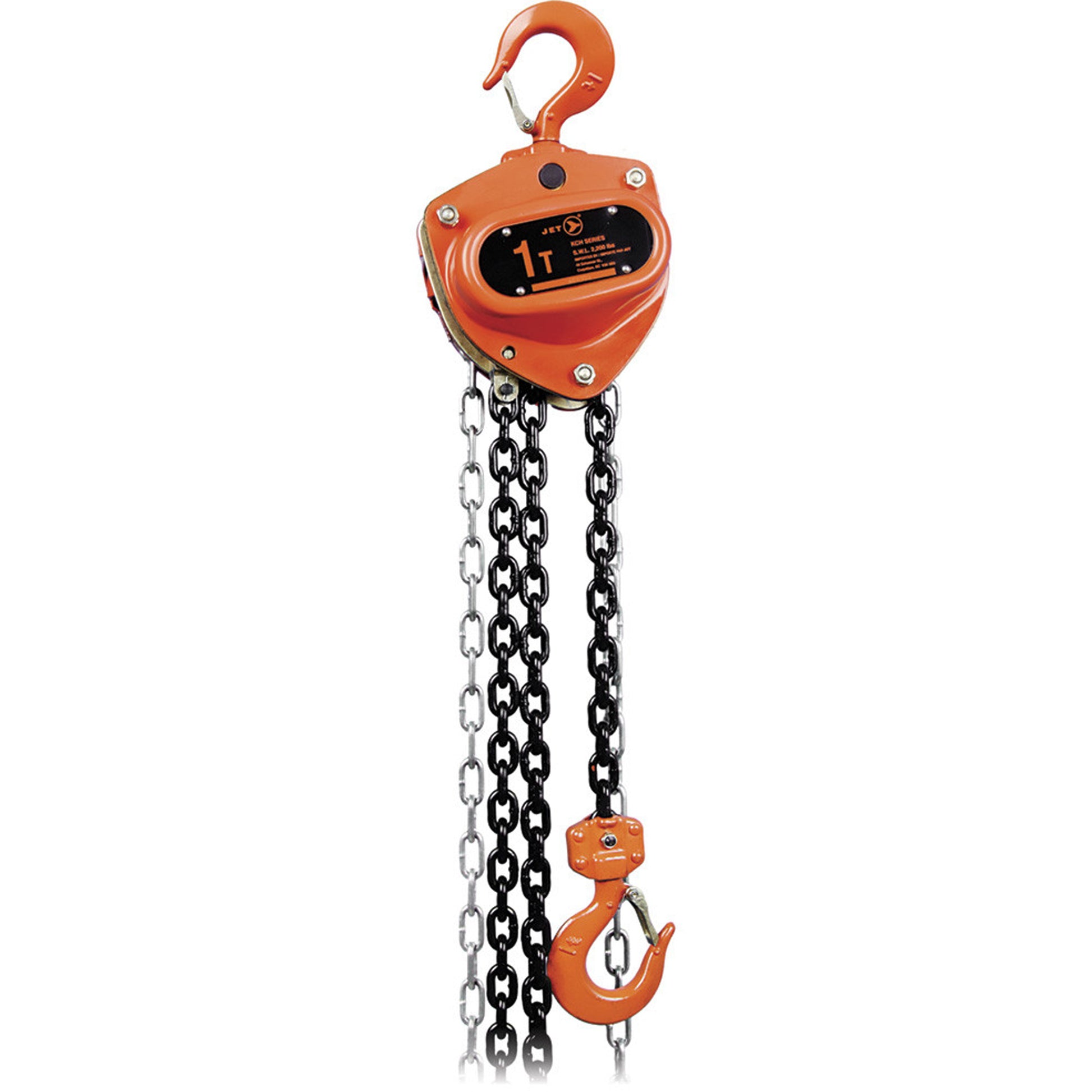

KCH Series Heavy-Duty Chain Hoist, 10' Lift, 2200 lbs. (1 tons) Capacity, Heat-Treated Alloy Steel Chain

• Professional grade triple spur gear is lightweight and portable
• Dual pawl Weston-style brake provides safe and reliable operation
• Made with premium grade non-asbestos brake discs for long service life
• Maintenance-free sealed bearings provide easy operation
• Load tested to 150% of rated capacity and includes certificate
• Heavy-duty ratchet gear protects brake disc from contamination
• Load Chain Grade
• Top and bottom safety hooks are engineered to bend lowly in case of accidental overload

Specifications:
Capacity: 2200 lbs. (1 tons)
Lift: 10'
Chain Material: Heat-Treated Alloy Steel
Standard(s) Met: ISO 9001-2000, ASME B30.16
Head Room: 11-5/8"
Load Chain Diameter: 6.3 mm
Load Chain Grade: 100
Number Of Falls: 1
Number Of Safety Hooks: 2
Min. Distance Between Hooks: 11-5/8"
Force Required To Lift: 64 lbs.
