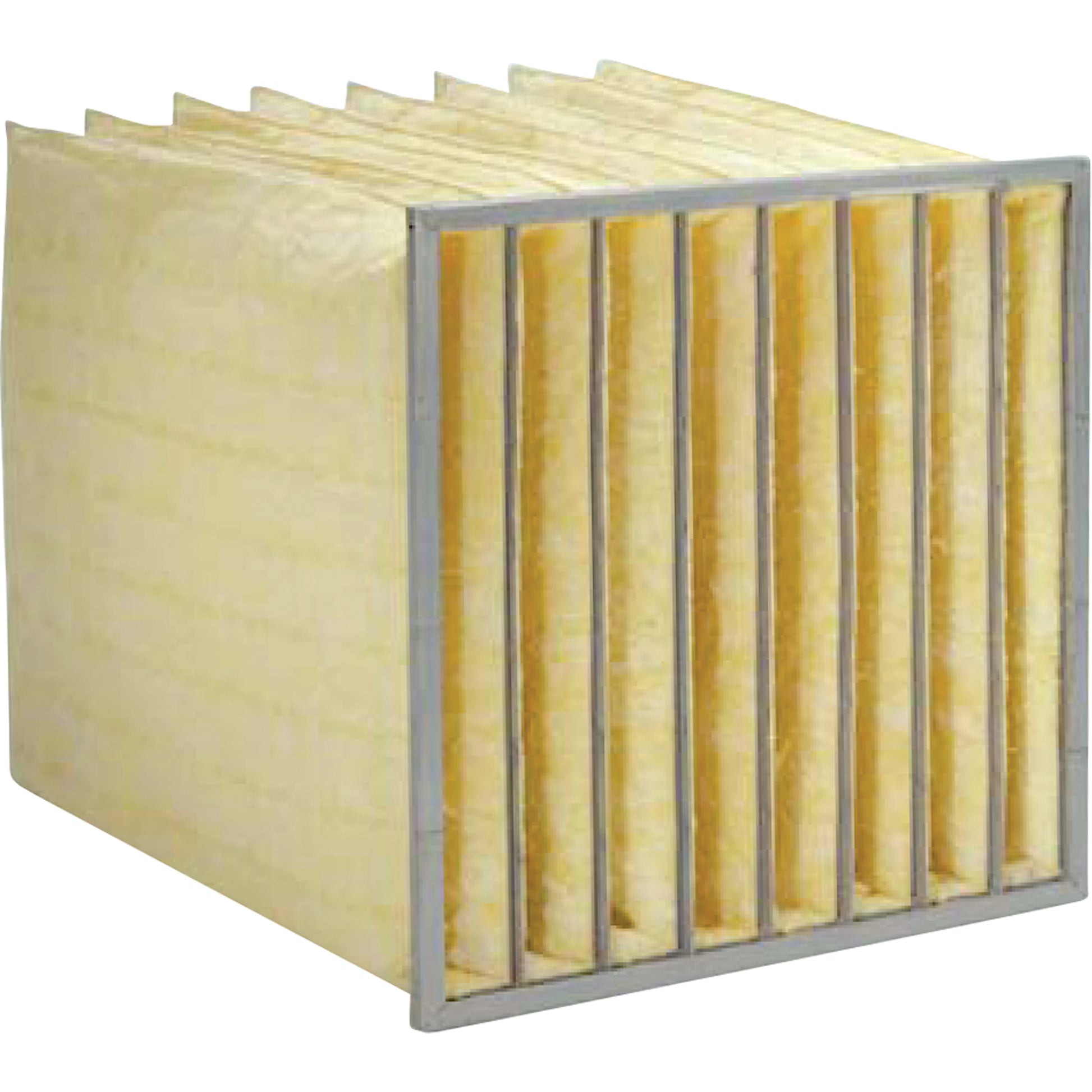

Hi-Flo® Fibreglass Filters, Bag, MERV 11, 24" W x 24" D x 22" H

• Incorporates high lofted air laid micro fibre glass media to ensure reliable efficiency
• Equipped with a high quality filter material, with small fibre diameter and uniform lofting, guarantying a consistent and reliable sub-micron particle capture
• Synthetic micro mesh media backing ensures media protection and support in turbulent or varying airflows
• Particle capture performance and filter configuration are unaffected by dust loading and/or humidity
• Controlled media spacing to minimize pocket-to-pocket contact, ensures uniform airflow and full utilization of the media area ; Application: Built-up filter banks Rooftops Split systems Free-standing units Package systems Air handlers Buildings Pharmaceutical Research; ; Note: Initial resistance to airflow (inches w.g.)
• Resistance Low

Specifications:
Width: 24"
Depth: 24"
Height: 22"
MERV Rating: 11
Filter Type: Bag
MERV Rating: 11
Resistance Low: 0.23
Resistance High: 0.33
No. Of Pockets: 6
CFM Low: 1500
CFM High: 2000
