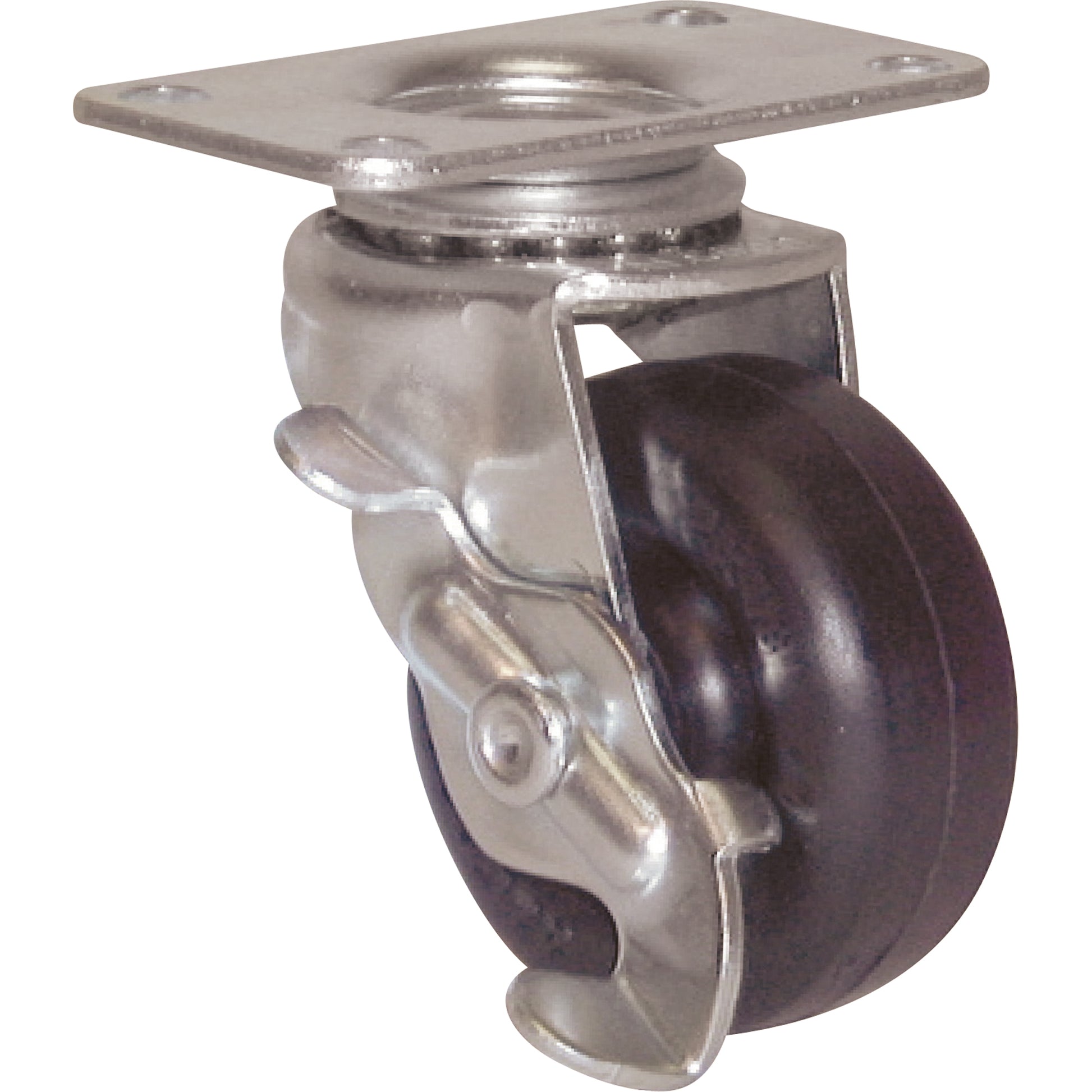

General Purpose Caster, Swivel with Brake, 3" (76 mm), Rubber, 90 lbs. (40.8 kg.)

• 5/16" rivet
• 1/4" riveted axle
• 3/16" diameter single race; hardened steel load bearings
• Corrosion resistant bright zinc finish
• Brake type: Side locking ; Excellent for:
• Office furniture
• Bolt Hole Spacing
• 100% non-marking urethane wheels are hard enough for carpeted floors and soft enough for tiled floors

Specifications:
Wheel Diameter: 3" (76 mm)
Capacity: 90 lbs. (40.8 kg.)
Wheel Material: Rubber
Caster Type: Swivel with Brake
Frame Material: Steel
Tread Width: 7/8" (22 mm)
Bolt Hole Spacing: 1" x 2" (25 mm x 50 mm)
Bolt Hole Size: 17/64" (6.74 mm)
Plate Size: 1-1/2" x 1-1/2" (38 mm x 38 mm)
Bearing Type: Steel
Swivel Radius: 2.3125"
Overall Height: 3.6875"
